The Bell P-39 Airacobra was one of the principal American fighter aircraft in service when the United States entered World War II. The P-39 was used by the Soviet Air Force, which scored the highest number of individual kills attributed to any U.S. fighter type in the Eastern European theatre. Other major users of the type included the Free French, the Royal Air Force, the United States Army Air Forces, and the Italian Co-Belligerent Air Force.

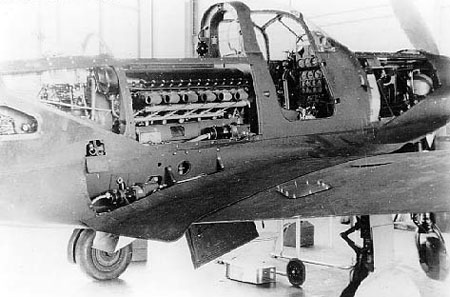

Designed by Bell Aircraft, it had an innovative layout, with the engine installed in the center fuselage, behind the pilot, and driving a tractor propeller via a long shaft. It was also the first fighter fitted with a tricycle undercarriage. Although its mid-engine placement was innovative, the P-39 design was handicapped by the absence of an efficient turbo-supercharger, preventing it from performing high-altitude work. As such it was rejected by the RAF for use over western Europe and passed over to the USSR where most air combat took place at medium and lower altitudes.
Together with the derivative P-63 Kingcobra, the P-39 was one of the most successful fixed-wing aircraft manufactured by Bell.
In February 1937, Lieutenant Benjamin S. Kelsey, Project Officer for Fighters at the United States Army Air Corps (USAAC), and Captain Gordon P. Saville, fighter tactics instructor at the Air Corps Tactical School, issued a specification for a new fighter via Circular Proposal X-609. It was a request for a single-engine high-altitude “interceptor” having “the tactical mission of interception and attack of hostile aircraft at high altitude”.Despite being called an interceptor, the proposed aircraft’s role was simply an extension of the traditional pursuit (fighter) role, using a heavier and more powerful aircraft at higher altitude. Specifications called for at least 1,000 lb of heavy armament including a cannon, a liquid-cooled Allison engine with a General Electric turbo-supercharger, tricycle landing gear, a level airspeed of at least 360 mph (580 km/h) at altitude, and a climb to 20,000 ft (6,100 m) within 6 minutes. This was the most demanding set of fighter specifications USAAC had presented to that date. Although Bell’s limited fighter design work had previously resulted in the unusual Bell YFM-1 Airacuda, the Model 12 proposal adopted an equally original configuration with an Allison V-12 engine mounted in the middle of the fuselage, just behind the cockpit, and a propeller driven by a shaft passing beneath the pilot’s feet under the cockpit floor.
The main purpose of this configuration was to free up space for the heavy main armament, a 37 mm (1.46 in) Oldsmobile T9 cannon firing through the center of the propeller hub for optimum accuracy and stability when firing. This happened because H.M. Poyer, designer for project leader Robert Woods, was impressed by the power of this weapon and pressed for its incorporation. This was unusual, because fighter design had previously been driven by the intended engine, not the weapon system. Although devastating when it worked, the T9 had very limited ammunition, a low rate of fire, and was prone to jamming.
A secondary benefit of the mid-engine arrangement was that it created a smooth and streamlined nose profile. Much was made of the fact that this resulted in a configuration “with as trim and clean a fuselage nose as the snout of a high velocity bullet”. Entry to the cockpit was through side doors (mounted on both sides of the cockpit) rather than a sliding canopy. Its unusual engine location and the long drive shaft caused some concern to pilots at first, but experience showed this was no more of a hazard in a crash landing than with an engine located forward of the cockpit. There were no problems with propeller shaft failure.
In September 1940, Britain ordered 386 P-39Ds (Model 14), with a 20 mm (.79 in) Hispano-Suiza HS.404 and six .303 in (7.7 mm), instead of a 37 mm (1.46 in) cannon and six 0.30 in (7.62 mm) guns. The RAF eventually ordered a total of 675 P-39s. However, after the first Airacobras arrived at 601 Squadron RAF in September 1941, they were promptly recognized as having an inadequate rate of climb and performance at altitude for Western European conditions. Only 80 were adopted, all of them with 601 Squadron. Britain transferred about 200 P-39s to the Soviet Union.
Another 200 examples intended for the RAF were taken up by the USAAF after the attack on Pearl Harbor as the P-400, and were sent to the Fifth Air Force in Australia, for service in the South West Pacific Theatre.
By the time of the Pearl Harbor attack, nearly 600 P-39s had been built. When P-39 production ended in August 1944, Bell had built 9,558 Airacobras, of which 4,773 (mostly −39N and −39Q were sent to the Soviet Union through the Lend-Lease program. There were numerous minor variations in engine, propeller, and armament, but no major structural changes in production types, excepting a few two-seat TP-39F and RP-39Q trainers. In addition, seven went to the U.S. Navy as radio-controlled drones.
Trials of a laminar flow wing (in the XP-39E) and Continental IV-1430 engine (the P-76) were unsuccessful. The mid-engine, gun-through-hub concept was developed further in the Bell P-63 Kingcobra.
A naval version with tailwheel landing gear, the XFL-1 Airabonita, was ordered as a competitor to the Vought F4U Corsair and Grumman XF5F Skyrocket. It first flew 13 May 1940, but after a troublesome and protracted development and testing period, it was rejected.
The Airacobra saw combat throughout the world, particularly in the Southwest Pacific, Mediterranean and Soviet theaters. Because its engine was equipped with only a single-stage, single-speed supercharger, the P-39 performed poorly above 17,000 feet (5,200 m) altitude. In both western Europe and the Pacific, the Airacobra found itself outclassed as an interceptor and the type was gradually relegated to other duties. It often was used at lower altitudes for such missions as ground strafing.
In 1940, the British Direct Purchase Commission in the U.S. was looking for combat aircraft; they ordered 675 of the export version Bell Model 14 as the “Caribou” on the strength of the company’s representations on 13 April 1940. The British armament was two nose mounted 0.50 in (12.7 mm) machine guns, and four 0.303 in (7.7 mm) Browning machine guns in the wings; the 37 mm gun was replaced by a 20 mm (.79 in) Hispano-Suiza cannon.
British expectations had been set by performance figures established by the unarmed and unarmored XP-39 prototype. The British production contract stated that a maximum speed of 394 mph (634 km/h) +/- 4% was required at rated altitude. In acceptance testing, actual production aircraft were found to be capable of only 371 mph at 14,090 ft. To enable the aircraft to make the guarantee speed, a variety of drag-reduction modifications were developed by Bell. The areas of the elevator and rudder were reduced by 14.2% and 25.2% respectively. Modified fillets were installed in the tail area. The canopy glass was faired to its frame with putty. The gun access doors on the wing had been seen to bulge in flight, so they were replaced with thicker aluminum sheet. Similarly, the landing gear doors deflected open by as much as two inches at maximum speed, so a stronger linkage was installed to hold them flush. The cooling air exit from the oil and coolant radiators was reduced in area to match the exit velocity to the local flow. New engine exhaust stacks, deflected to match the local flow and with nozzles to increase thrust augmentation, were installed. The machine gun ports were faired over, the antenna mast was removed, a single-piece engine cowling was installed and an exhaust stack fairing was added.
The airframe was painted with 20 coats of primer, with extensive sanding between coats. Standard camouflage was applied and sanded to remove the edges between the colors. Additionally, about 200 lb (91 kg) of weight was removed, making it lighter than normal (7,466 lb gross). After these modifications, the second production aircraft (serial AH 571) reached a speed of 391 mph (629 km/h) at 14,400 ft (4,400 m) in flight test. As this speed was within 1% of the guarantee, the aircraft was declared to have satisfied contractual obligations.
Despite the success of these modifications, none were applied to other production P-39s. Later testing of a standard production P-400 by the British Aeroplane and Armament Experimental Establishment (A&AEE) revealed a top speed of only 359 mph (578 km/h).
The British export models were renamed “Airacobra” in 1941. A further 150 were specified for delivery under Lend-lease in 1941 but these were not supplied. The Royal Air Force (RAF) took delivery in mid-1941 and found that performance of the non-turbo-supercharged production aircraft differed markedly from what they were expecting. In some areas, the Airacobra was inferior to existing aircraft such as the Hawker Hurricane and Supermarine Spitfire and its performance at altitude suffered drastically. Tests by the Royal Aircraft Establishment at Boscombe Down showed the Airacobra reached 355 mph (571 km/h) at 13,000 ft (3,962 m). The cockpit layout was criticized, and it was noted that the pilot would have difficulty in bailing out in an emergency because the cockpit roof could not be jettisoned. The lack of a clear vision panel on the windscreen assembly meant that in the event of heavy rain the pilot’s forward view would be completely obliterated; the pilot’s notes advised that in this case the door windows would have to be lowered and the speed reduced to 150 mph (241 km/h). On the other hand, it was considered effective for low level fighter and ground attack work. Problems with gun- and exhaust-flash suppression and the compass could be fixed.
No. 601 Squadron RAF was the only British unit to use the Airacobra operationally, receiving their first two examples on 6th August 1941. On 9th October, four Airacobras attacked enemy barges near Dunkirk, in the type’s only operational action with the RAF. The squadron continued to train with the Airacobra during the winter, but a combination of poor serviceability and deep distrust of this unfamiliar fighter resulted in the RAF rejecting the type after one combat mission. In March 1942, the unit re-equipped with Spitfires.
The Airacobras already in the UK, along with the remainder of the first batch being built in the US, were sent to the Soviet Air force, the sole exception being AH574, which was passed to the Royal Navy and used for experimental work, including the first carrier landing by a tricycle undercarriage aircraft on 4th April 1945 on HMS Pretoria Castle, until it was scrapped on the recommendation of a visiting Bell test pilot in March 1946.
Bell-9-39 from the United States requisitioned 200 aircraft of the order destined for the UK, adopting them as P-400s (named for advertised top speed of 400 mph (644 km/h)). After Pearl Harbor, the P-400 was deployed to training units, but some saw combat in the Southwest Pacific including with the Cactus Air Force in the Battle of Guadalcanal. Though outclassed by Japanese fighter aircraft, it performed well in strafing and bombing runs, often proving deadly in ground attacks on Japanese forces trying to retake Henderson Field. Guns salvaged from P-39s were sometimes fitted to Navy PT boats to increase firepower. Pacific pilots often complained about problems of performance and unreliable armament, but by the end of 1942, the P-39 units of the Fifth Air Force had claimed about 80 Japanese aircraft, with a similar number of P-39s lost. By any standard the Airacobra and its pilots held their ground against the Japanese. Fifth and Thirteenth Air Force P-39s did not score more aerial victories in the Solomons due to the aircraft’s limited range and poor high altitude performance.
Airacobras first fought Japanese Zeros on 30 April 1942 in a low level action near Lae, New Guinea. From May to August 1942 combat between Airacobras and Zeros took place on a regular basis over New Guinea. Compilation of combat reports indicates the Zero was either equal to or close to the P-39 in speed at the altitudes of the various low level encounters.
From September to November 1942 pilots of the 57th Fighter Squadron flew P-39s and P-38s from an airfield built on land bulldozed into Kuluk Bay on the barren island of Adak in Alaska’s Aleutian Islands. They attacked the Japanese forces that had invaded Attu and Kiska islands in the Aleutians in June 1942. The factor that claimed the most lives was not the Japanese but the weather. The low clouds, heavy mist and fog, driving rain, snow, and high winds made flying dangerous and lives miserable. The 57th remained in Alaska until November 1942, then returnedIn North Africa, the 99th Fighter Squadron (also known as the Tuskegee Airmen) transitioned quickly from the P-40 and were assigned P-39s in February 1944, but only flew the type for a few weeks. The 99th carried out their duties including supporting Operation Shingle over Anzio as well as missions over the Gulf of Naples in the Airacobra but achieved few aerial victories.
The major MTO P-39 operators included the 81st and 350th Fighter Groups, both flying the maritime patrol mission from North Africa and on through Italy. The 81st transferred to the China Burma India Theater by March 1944 and the 350th began transition to the P-47D in August 1944, remaining in Italy with the 12th Air Force. to the United States.
Lt. Bill Fiedler became an ace in a P-39, while many U.S. aces scored one or two of their victories in the type. The Airacobra’s low-altitude performance was good and its firepower was impressive, and with air battles in the Pacific fought at intermediate altitudes, the P-39 did well against light and agile Japanese A6Ms and Ki-43s (considering American numerical inferiority and Japanese veteran pilots). It soon became the joke in the Pacific Theatre that a P-400 was a P-40 with a Zero on its tail. Only with its cannon, two .50 and four .30 caliber machine guns could a P-39 face a Japanese fighter.
The most successful and numerous use of the P-39 was by the Red Air Force (Военно-воздушные силы, Voenno-Vozdushnye Sily, VVS). They received the considerably improved N and Q models via the Alaska-Siberia ferry route. The tactical environment of the Eastern Front did not demand the high-altitude performance the RAF and AAF did. The comparatively low-speed, low-altitude nature of most air combat on the Soviet Front suited the P-39’s strengths: sturdy construction, reliable radio gear, and adequate firepower.
Soviet pilots appreciated the cannon-armed P-39 primarily for its air-to-air capability. A common Western misconception is that the Bell fighters were used as ground attack aircraft. This is because the Soviet term for the mission of the P-39, prikrytiye sukhoputnykh voysk (coverage of ground forces) is commonly translated ground support, which is often taken to mean close air support. In Soviet usage, it has a broader meaning. Soviet-operated P-39s did make strafing attacks, but it was “never a primary mission or strong suit for this aircraft”. The Soviets developed successful group aerial fighting tactics for the Bell fighters and scored a surprising number of aerial victories over a variety of German aircraft. Soviet P-39s had no trouble dispatching Junkers Ju 87 Stukas or German twin-engine bombers and matched, and in some areas surpassed, early and mid-war Messerschmitt Bf 109s. The usual nickname for the Airacobra in the VVS was Kobrushka (“little cobra”) or Kobrastochka, a blend of Kobra and Lastochka (swallow), “dear little cobra”.
The first Soviet Cobras had a 20 mm Hispano-Suiza cannon and two heavy Browning machine guns, synchronized and mounted in the nose. Later, Cobras arrived with the M-4 37 mm cannon and four machine guns, two synchronized and two wing-mounted. “We immediately removed the wing machine guns, leaving one cannon and two machine guns,” Golodnikov recalled later. That modification improved roll rate by reducing rotational inertia. Soviet airmen appreciated the M-4 cannon with its powerful rounds and the reliable action but complained about the low rate of fire (three rounds per second) and inadequate ammunition storage (only 30 rounds).
The Soviets used the Airacobra primarily for air-to-air combat against a variety of German aircraft, including Bf 109s, Focke-Wulf Fw 190s, Ju 87s, and Ju 88s. During the battle of Kuban River, VVS relied on P-39s much more than Spitfires and P-40s. Aleksandr Pokryshkin, from 16.Gv.IAP (16th Guards Fighter Aviation Regiment), claimed 20 victories in that campaign in a P-39.
The last plane shot down by the Luftwaffe was a Soviet P-39, on May 8th by Oblt. Fritz Stehle of 2./JG 7 flying a Me 262 on Erzgebirge. Also, the last Soviet air victory was in a P-39 on May 9 when Kapitan Vasily Pshenichikov scored against a Focke-Wulf Fw 189, in the sky over Prague. Five of the 10 highest scoring Soviets aces logged the majority of their kills in P-39s. Grigoriy Rechkalov scored 44 victories in Airacobras. Pokryshkin scored 47 of his 59 victories in P-39s, making him the highest scoring P-39 fighter pilot of any nation, and the highest scoring Allied fighter pilot using an American fighter. This does not include his 6 shared victories, at least some of which were achieved with the P-39.
The United States did not supply M80 armor-piercing rounds for the autocannons of Soviet P-39s—instead, the Soviets received 1,232,991 M54 high-explosive rounds, which they used primarily for air-to-air combat and against soft ground targets. The VVS did not use the P-39 for tank-busting duties.

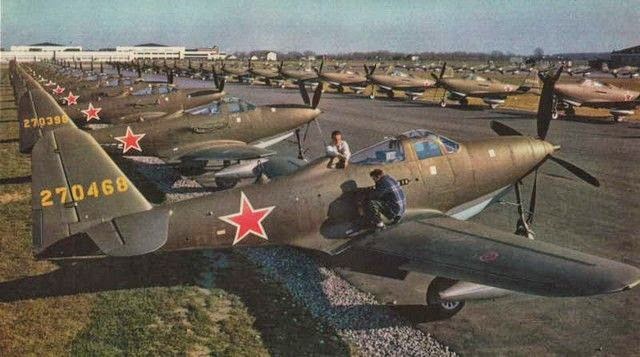

A total of 4,719 P-39s were sent to the Soviet Union, accounting for more than one-third of all U.S. and UK-supplied fighter aircraft in the VVS, and nearly half of all P-39 production. Soviet Airacobra losses totalled 1,030 aircraft (49 in 1942, 305 in 1943, 486 in 1944 and 190 in 1945).
Airacobras served with the Soviet Air Forces as late as 1949, when two regiments were operating as part of the 16th Guards Fighter Aviation Division in the Belomorsky Military District.

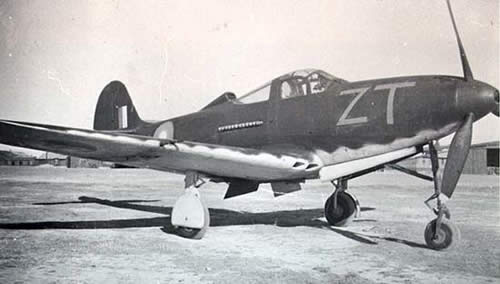

A total of 23 re-conditioned Airacobras, on loan from the U.S. Fifth Air Force (5 AF), were used by the Royal Australian Air Force (RAAF) as a stop-gap interceptor in rear areas. The aircraft were assigned the RAAF serial prefix A53.
In the early months of the Pacific War, the RAAF was able to obtain only enough Curtiss Kittyhawks to equip three squadrons, destined for front-line duties in New Guinea. and – in the face of increasing Japanese air raids on towns in northern Australia – was forced to rely on the P-40, P-39, and P-400 units of 5 AF for the defence of areas such as Darwin. During mid-1942, USAAF P-39 units in Australia and New Guinea began to receive brand new P-39Ds. Consequently, P-39s that had been repaired in Australian workshops were loaned by 5 AF to the RAAF. In July, seven P-39Fs arrived at 24 Squadron, in RAAF Bankstown in Sydney. In August, seven P-39Ds were received by No. 23 Squadron RAAF at Lowood Airfield, near Brisbane. Both squadrons also operated other types, such as the CAC Wirraway armed trainer. Neither squadron received a full complement of Airacobras or saw combat with them. From early 1943, the air defence role was filled by a wing of Spitfires.
Both 23 and 24 Squadron converted to the Vultee Vengeance dive bomber in mid-1943, their P-39s transferred to two newly formed fighter squadrons: No. 82 (augmenting P-40s, still in short supply) at Bankstown and No. 83 (as it awaited the Australian-designed CAC Boomerang) in Strathpine, near Brisbane. After serving with these squadrons for a few months, the remaining Airacobras were returned to the USAAF and the RAAF ceased to operate the type.

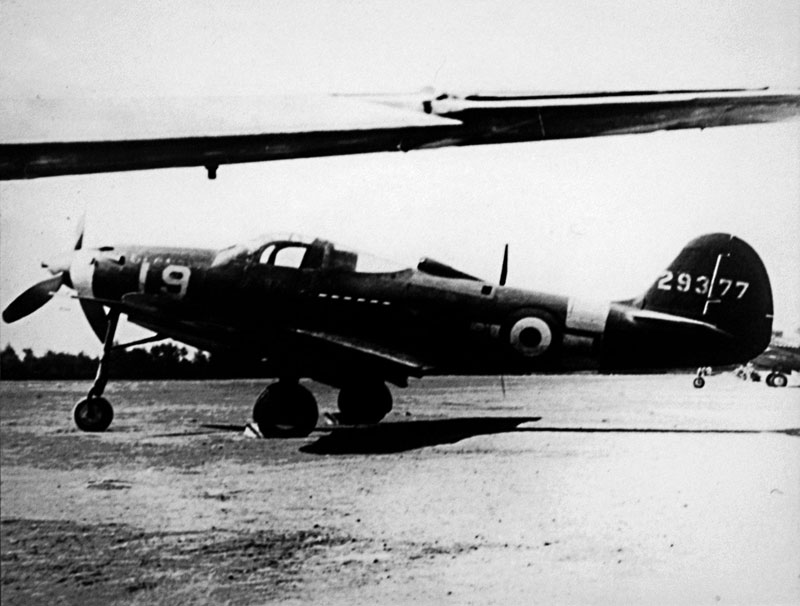

In 1940, France ordered P-39s from Bell, but because of the armistice with Germany they were not delivered. After Operation Torch, French forces in North Africa sided with the Allies, and were re-equipped with Allied equipment including P-39Ns. From mid-1943 on, three fighter squadrons, the GC 3/6 Roussillon, GC 1/4 Navarre and GC 1/5 Champagne, flew these P-39s in combat over the Mediterranean, Italy and Southern France. A batch of P-39Qs was delivered later, but Airacobras, which were never popular with French pilots, had been replaced by P-47s in front line units by late 1944.

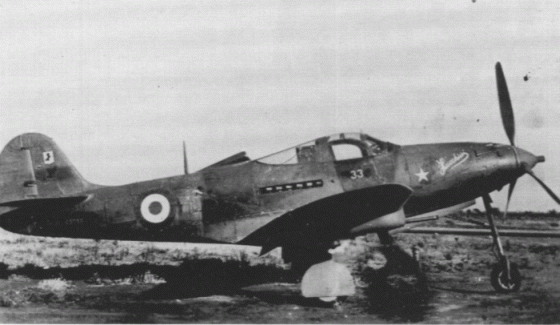

In June 1944, the Italian Co-Belligerent Air Force (ICAF) received 170 P-39s, most of them -Qs, and a few -Ns (15th USAAF surplus aircraft stored in Napoli-Capodichino airfield) and also at least one -L and five -Ms. The P-39 N (without the underwing fairing for 12.7 machine guns) had engines with about 200 hours; a little newer than the P-39Q engines with 30–150 hours. A total of 149 P-39s would be used: the P-39N for training, while newer Qs were used in the front line.
In June–July 1944, Gruppi 12°, 9° and 10° of 4° Stormo, moved to Campo Vesuvio airstrip to re-equip with the P-39s. The site was not suitable and, in three months of training, 11 accidents occurred, due to engine failures and poor maintenance of the base. Three pilots died and two were seriously injured. One of the victims, on 25th August 1944, was the “ace of aces”, Sergente Maggiore Teresio Vittorio Martinoli.
The three groups of 4° Stormo were first sent to Leverano (Lecce) airstrip, then in mid-October, to Galatina airfield. At the end of the training, eight more accidents occurred. Almost 70 aircraft were operational, and on 18th September 1944, 12° Group’s P-39s flew their first mission over Albania. Concentrating on ground attack, the Italian P-39s proved to be suitable in this role, losing 10 aircraft between 4th November and 3rd December 1944, to German flak. In February–March 1945, 10° and 9° Gruppi moved North of Galatina, in Canne airbase, near Campobasso, while Allied allowed Italian pilots to use the airstrip of Lissa island, in the Adriatic sea, as an intermediate scale during the long sorties on the Balkans. The 4° Stormo pilots flew many effective ground attack missions on northern Yugoslavia, losing only one more P-39, for engine failure in Sarajevo area, on 2nd April 1945. The Italian P-39 flew over 3,000 hours of combat.
By the end of the war, 89 P-39s were still at the Canne airport and 13 at the Scuola Addestramento Bombardamento e Caccia (“Training School for Bombers and Fighters”) at Frosinone airfield. In 10 months of operational service, the 4° Stormo had been awarded three Medaglia d’Oro al Valore Militare “alla memoria”. After the war the P-39s were taken over by the Aeronautica Militare Italiana (the new Italian air force) and used for several years as training aircraft. In Galatina fighter training unit (Scuola Caccia), war veteran Tenente colonnello Francis Leoncini was killed during a flying accident, on 10th May 1950.
Between December 1942 and February 1943, the Aeronáutica Militar (Army Military Aviation) obtained aircraft operated by the 81st and the 350th Fighter Groups originally dispatched to North Africa as part of Operation Torch. Due to several problems en route, some of the aircraft were forced to land in Portugal and Spain. Of the 19 fighter aircraft that landed in Portugal, all were interned and entered service that year with the Portuguese Army Military Aviation. They formed the Squadron OK, based at Ota Air Base.
Though unnecessary, the Portuguese Government paid the United States US$20,000 for each of these interned aircraft as well as for one interned Lockheed P-38 Lightning. The U.S. accepted the payment, and gave as a gift four additional crates of aircraft, two of which were not badly damaged, without supplying spares, flight manuals or service manuals. Without proper training, incorporation of the aircraft into service was plagued with problems, and the last six Portuguese Airacobras that remained in 1950 were sold for scrap.
A very small number of late-productions P-39Qs survived long enough in the USAAF inventory to be acquired by the United States Air Force upon its separation from the Army. These aircraft served in training and testing roles for approximately a year. They were redesignated as ZF-39Qs (“ZF” for “Obsolete Fighter”) in June 1948 as part of the new aircraft designation scheme throughout the USAF.
In 1945, Italy purchased the 46 surviving P-39s at 1% of their cost but in summer 1946 many accidents occurred, including fatal ones. By 1947, 4° Stormo re-equipped with P-38s, with P-39s sent to training units until the type’s retirement in 1951. Only a T9 cannon survives today at Vigna di Valle Museum.
The Airacobra was raced at the National Air Races in the United States after World War II. Famous versions used for racing included the twin aircraft known as “Cobra I” and “Cobra II,” owned jointly between three Bell Aircraft test pilots, Chalmers “Slick” Goodlin, Alvin M. “Tex” Johnston, and Jack Woolams. These aircraft were extensively modified to use the more powerful P-63 engine and had prototype propeller blades from the Bell factory. “Cobra I” with its pilot, Jack Woolams, was lost in 1946 during a test flight over Lake Ontario, late in the afternoon, possibly at speeds of up to 400 mph. The aircraft suddenly and inexplicably crashed into the water, breaking apart upon impact.
The “Cobra II” (Race #84) flown by test pilot “Tex” Johnston, beat racing-modified P-51s, as well as other P-39 racers (which were the favorites), to win the 1946 Thompson Trophy race. Cobra II competed again in the 1947 Thompson Trophy, finishing 3rd. In the 1948 Thompson trophy, she was unable to finish due to engine difficulties. Cobra II did not race again and was destroyed on 10th August 1968 during a test flight prior to an attempt at the world piston-engine air speed record, when owner-pilot Mike Carroll lost control and crashed. Carroll died and the highly modified P-39 was destroyed.
Mira Slovak’s P-39Q “Mr. Mennen” (Race #21, former USAAC serial no. 44-3908, civil registry NX40A) was a very fast unlimited racer; a late arrival in 1972 kept the 2,000 hp (1,491 kW) racer out of the Reno races, and she was never entered again. Her colour scheme was all white with “Mennen” green and bronze trim. She is now owned and displayed by the Kalamazoo Air Zoo, in the color scheme of P-400 “Whistlin’ Britches.”
