The Bristol F.2 Fighter was a British two-seat biplane fighter and reconnaissance aircraft of the First World War developed by Frank Barnwell at the Bristol Aeroplane Company. It is often simply called the Bristol Fighter, other popular names include the “Brisfit” or “Biff”.
Although the type was intended initially as a replacement for the pre-war Royal Aircraft Factory B.E.2c reconnaissance aircraft, the newly-available Rolls-Royce Falcon V12 engine gave it the performance of a two-seat fighter.
Despite a disastrous start to its career, the definitive F.2B version proved to be an agile aircraft that was able to hold its own against opposing single-seat fighters; its robust design ensured that it remained in military service into the 1930s. Some surplus aircraft were registered for civilian use, and dedicated civilian versions proved popular.
By Autumn 1915, the Royal Flying Corps (RFC) had identified the need for a new aerial reconnaissance and artillery spotting aircraft to replace the pre-war Royal Aircraft Factory B.E.2c. Among other attributes and performance requirements, emphasis was placed upon the ability to defend itself in aerial combat.
Several new types were developed; the Royal Aircraft Factory responded with its R.E.8 design, while the Armstrong Whitworth Company produced the design that eventually emerged as the F.K.8. In March 1916, Frank Barnwell of the Bristol Aeroplane Company, commenced work on a new design also intended to serve as a replacement for the ageing B.E.2. This initially took two forms, the Type 9 R.2A, to be powered by the 120 hp Beardmore engine, and the very similar Type 9A R.2B, powered by the 150 hp Hispano-Suiza. Both designs featured the mounting of the fuselage between the wings, with a gap between the lower longerons and the wing, along with a substantial part of the vertical tail surfaces being located beneath the fuselage. These features were intended to optimise the field of fire for the observer; the positioning of the fuselage also resulted in the upper wing obscuring less of the pilot’s field of view. The crew positions were placed as close together as possible, to optimise communication between the pilot and observer.
Before either the R.2A or R.2B could be constructed, the new 190 hp (142 kW) Rolls-Royce Falcon inline engine became available; Barnwell now drafted a third revision of his design around the new engine, with its decidedly superior power/weight ratio. The anticipated improvement in performance changed the emphasis in its intended operational use; it was now seen as a replacement for the F.E.2d and Sopwith 11⁄2 Strutter two-seat fighters rather than a competitor with the pedestrian reconnaissance designs that were to replace the B.E.2. The resulting Type 12 F.2A, was a two-bay equal-span biplane, closely based on the R.2A and R.2B designs.
In July 1916, work commenced on the construction of a pair of prototypes; on 28th August 1916, an initial contract was awarded for 50 production aircraft. On 9th September 1916, the first prototype performed its maiden flight, powered by a Falcon I engine. It was fitted with B.E.2d wings (Bristol were major contractors for the type) to save time; its lower wings were attached to an open wing-anchorage frame and had end-plates at the wing roots. On 25th October 1916, the second prototype was completed, powered by a Hispano-Suiza engine, and otherwise differing from the first prototype in its tail-skid, which was integrated into the base of the rudder.
It was found that the prototype’s radiator arrangement obscured the pilot’s field of view, and the nose was redesigned around a new circular-shaped frontal radiator housed within the cowling. Other changes made to the first prototype during flight testing included the elimination of the end-plates from the lower wing roots and the addition of a shallow coaming around the cockpits. Between 16th and 18th October 1916, the type underwent its official trials at the Central Flying School, Upavon, during which it was tried with both a four-bladed 9 ft 2 in propeller and a two-bladed 9 ft 8 in propeller. By the time of its arrival at the experimental armament station at Orfordness it had also been fitted with a Scarff ring mounting over the rear cockpit and an Aldis optical sight.
Only 52 F.2A aircraft were manufactured before production was switched to the definitive model, the F.2B (retrospectively designated Bristol Type 14), which first flew on 25 October 1916. The first 150 or so F.2Bs were powered by either the Falcon I or Falcon II engine, but the remainder were equipped with the 275 hp (205 kW) Falcon III engine. The additional power gave the F.2B a 10 mph (16 km/h) advantage in level speed over the F.2A, while it was three minutes faster in a climb to 10,000 ft (3,000 m).
The Bristol F.2 Fighter was armed in what had by then become the standard weapons configuration for a British two-seater military aircraft: one synchronised fixed, forward-firing .303 in (7.7 mm) Vickers machine gun (in this case mounted under the cowling to avoid freezing) and a single flexible .303 in (7.7 mm) Lewis Gun on a Scarff ring over the observer’s rear cockpit.
The F.2B variant often carried a second Lewis gun on the rear cockpit mounting, although observers found the weight of the twin Lewis gun mounting difficult to handle in the high altitudes at which combat increasingly took place in the last year of the war, many preferring to retain a single gun.
Attempts were made to add a forward-firing Lewis gun on a Foster mounting or similar on the upper wing either instead of, or in addition to, the Vickers gun. Among other problems this caused interference with the pilot’s compass, which was mounted on the trailing edge of the upper wing: to minimise this effect the Lewis gun was offset to starboard.
Rolls-Royce aero engines of all types were in short supply at this time, and the Falcon was no exception. This shortage of engines frustrated plans to increase production so that the Bristol Fighter could become the standard British two-seater, replacing the R.E.8 and F.K.8; there simply were not enough Falcons available. Accordingly, efforts were made to find an available alternative powerplant that was both reliable and sufficiently powerful.
The Type 15 was fitted with a 200 hp (150 kW) Sunbeam Arab engine. In expectation of a reduction in performance with the less powerful engine, it was planned to supply the Arab-powered Fighters to the “corps” reconnaissance squadrons, reserving Falcon powered examples for fighter-reconnaissance operations. The Arab engine was to be fitted to Fighters produced by sub-contractors under licence, while Bristol-built Fighters would continue to use the Falcon engine.
Unfortunately, the Arab engine proved to be problematic; it was found to suffer from serious weaknesses in cylinder and crank-chamber design that led, among other faults, to chronic and severe vibration, while the cooling system also required repeated modification. As a result, the “Arab Bristol” was never to become a viable combination, in spite of prolonged development. A few Arab-engined Bristols were at the front late in the war, but the British reconnaissance squadrons had to soldier on with the R.E.8 and F.K.8 until the end of hostilities.
The Type 16 was fitted with a 200 hp (150 kW) Hispano-Suiza engine. This worked better than the Arab, but there was already a severe shortage of Hispano-Suizas for other types, such as the S.E.5a and the Sopwith Dolphin. The 300 hp (220 kW) version of the Hispano-Suiza, suggested for the Type 17, was not available in quantity before the end of the war.
Other engines tried or suggested for the F.2B were the 200 hp (150 kW) RAF 4d, the 180 hp (130 kW) Wolseley Viper and the 230 hp (170 kW) Siddeley Puma. Trials of the Puma engine were carried out in February 1918; it was found to confer marginally better performance than the Hispano-Suiza and Arab engines, but proved difficult to install and unreliable. In September 1918, trials of a high-compression model of the Puma engine were carried out, but it was found to have no significant performance benefit, and this avenue was not pursued.
The Type 22 was a proposed version adapted for a radial or rotary engine; either a 200 hp (150 kW) Salmson radial, a 300 hp (220 kW) ABC Dragonfly radial (Type 22A), or a 230 hp (170 kW) Bentley B.R.2 rotary (Type 22B). The type number was eventually used for the Bristol F.2C Badger, a totally new design.
The “All-Metal Bristol Fighter”
The Bristol M.R.1 is often described as an “all-metal version of the F.2b”. In fact it was a totally new design – although it shared the characteristic of having the fuselage positioned between the upper and lower wing. Two prototypes were built, the first flying on 23rd October 1917, but the M.R.1 never entered mass production.
Upon America’s entry into the First World War, the Aviation Section, U.S. Signal Corps of the United States Army lacked any competitive combat aircraft either in inventory or under construction at that time. On 1st August 1917, General John J. Pershing, the commander of the American Expeditionary Forces on the Western Front, issued his personal recommendation for the Bristol Fighter to be domestically manufactured in the United States, leading to plans being assembled for the development and production of an American version of the Fighter by the United States Army Engineering Division.
Original proposals for the American production had the 200 hp (149 kW) Hispano-Suiza engine. On 5th September 1917, a single F.2B Fighter was delivered to the Smithsonian Institution, Washington, United States. However, efforts to commence production in the United States floundered due to the decision by Colonel V.E. Clark of the Bolling Commission to redesign the Fighter to be powered with the 400 hp (298 kW) Liberty L-12 engine. The Liberty was a totally unsuitable engine for the Bristol, as it was far too heavy and bulky, and the resulting aircraft had a nose-heavy attitude during flight.
A contract for 1,000 aircraft was placed initially with the Fisher Body Corporation, but this was subsequently cancelled and reallocated to the Curtiss Aeroplane and Motor Company instead. On 7th December 1917, the order was doubled to 2,000 aircraft. On 25th January 1918, the first aircraft, which was given the designation U.S.A 0-1, was completed, despite the warnings and misgivings of Barnwell, who was not satisfied by some of the modifications made, particularly in the use of the Liberty L-12 engine. According to Bruce, misdirections attributed to Major E.J. Hall of the U.S. Signals Corps had led to roughly 1,400 production drawings produced by Curtiss being rendered obsolete. The reputation of the type was also tarnished by three early crashes, although one had been attributed to pilot error, and the other two to faulty workmanship.
Efforts to change the powerplant of American-built Bristol Fighters to the more suitable Liberty 8 or the 300 hp (224 kW) Wright-Hisso came up against political as well as technical problems. By July 1918, the only specimen of the American-built Hispano-Suiza engine had been installed into a Fighter; the combination soon gained the favour of the U.S. Air Board, which suggested to Curtiss that all work on the Liberty L-12 version of the aircraft be abandoned in favour of the Hispano-Suiza version. In spite of protests by Curtiss, the contracts for the U.S.A. 0-1 were terminated, leading to only a pair of prototypes and 25 production aircraft out of the planned 2,000 aircraft being constructed.
It was then suggested by W. C. Potter, Assistant Director of Aircraft Production, that the original Bristol Fighter should be produced exactly as per Barnwell’s original designs for it, save for the use of either the Liberty 8 or Hispano-Suiza engine. Potter’s proposal was overlooked; instead it was decided to produce eight aircraft, four being fitted with the Hispano-Suiza engine, designated as the Engineering Division USB-1A, and four being powered by the Liberty L-8 engine, designated as the Engineering Division USB-1B. However, only one each of each were built.
When fitted with a new plywood semi-monocoque fuselage designed by the Engineering Division of the US Army Air Service and powered by a Wright-Hispano engine, the US-built Bristol Fighter was designated as the XB-1A and XB-1B. The XB-1A was armed with a pair of Marlin machine guns at the pilot’s position while the XB-1B was armed with a pair of Browning machine guns instead. These aircraft were reportedly intended for use as night observation aircraft. Three prototypes were built by the Engineering division at McCook Field, with a further 44 aircraft built by the Dayton-Wright Company. According to Bruce, despite substantial efforts to differentiate and modify the aircraft’s design, none of the American-built Fighters performed any better than the original Bristol Fighter.
Postwar developments of the F.2B included the F.2B Mk II, a two-seat army co-operation biplane, fitted with desert equipment and a tropical cooling system, which first flew in December 1919. 435 were built. The Type 96 Fighter Mk III and Type 96A Fighter Mk VI were structurally strengthened aircraft, of which 50 were built in 1926–1927.
Surplus F.2Bs were modified for civilian use. The Bristol Tourer was an F.2B fitted with a Siddeley Puma engine in place of the Falcon and with the cockpits enclosed by canopies. The Tourer had a maximum speed of 128 mph (206 km/h).
Days prior to Christmas 1916, the first deliveries of production F.2A Fighters were completed, No. 48 Squadron at Rendcomb being the first operational unit of the Royal Flying Corps (RFC) to receive the type. On 8th March 1917, No.48 and its Fighters were deployed to France in preparation for action on the Western Front; Hugh Trenchard, 1st Viscount Trenchard was keen to get the F.2A Fighter and other newly introduced aircraft ready for the upcoming Second Battle of Arras, aiming to surprise German forces with the hitherto unknown type, and this led to restriction on its deployment prior to the battle to avoid alerting the Germans to the presence of the Fighter.
Accordingly, the first offensive action that involved the F.2A Fighter crossing the frontline occurred on 5th April 1917, which had been deliberately timed to coincide with the British offensive at Arras. The very first F.2A patrol of six aircraft from No. 48 Squadron RFC, led by Victoria Cross recipient William Leefe Robinson, ran into five Albatros D.IIIs from Jasta 11 led by Manfred von Richthofen. Four out of the six F.2As were shot down – including that of Robinson, who was captured – and a fifth was badly damaged.
Other early experiences with the F.2A Fighter contributed to doubts over its effectiveness. The month in which the type had been introduced to offensive operation became known as Bloody April: casualties were high throughout the RFC, and initially the Bristol fighter proved to be no exception. At this period, contemporary two-seater aircraft were far less nimble than fighter aircraft, and many types lacked the structural strength to carry out the aggressive manoeuvres needed for dogfighting. The first “Brisfit” aircrews were accustomed to the standard doctrine of maintaining formation and using the crossfire of the observers’ guns to counter enemy fighter aircraft.
Pilots soon realised that the Bristol Fighter was a strong and agile aircraft, capable of manoeuvring with single-seat fighters, despite some rumours that the type lacked the necessary structural strength to be flown as a fighter. While its fixed forward-firing machine gun could be used as the primary weapon, the observer could use his flexible, rear-mounted gun to provide protection from attacks from the rear. Flown in this manner, the Bristol Fighter achieved a ‘remarkable’ level of success and proved to be a formidable opponent for German fighters.
From May 1917 onwards, the definitive F.2B Fighter quickly supplanted and replaced the earlier F.2A model. In July 1917, the War Office decided to adopt the F.2B Fighter as the equipment of all fighter-reconnaissance squadrons, leading to a significant increase in production. Despite the issuing of contracts for further large batches of aircraft, it was apparent that the rate of production could not keep up with demand for the type.
Perhaps one of the best known flying aces to use the type was Canadian Andrew Edward McKeever, and his regular observer L.F. Powell. By the end of 1917 McKeever had accumulated 30 shoot-downs of enemy aircraft, while Powell had achieved eight aerial kills, while operating the Fighter. McKeever later became a flying instructor stationed in England before becoming the commanding officer of No. 1 Squadron of the newly formed Royal Canadian Air Force (RCAF), where he continued to use the Fighter as his personal aircraft, which was later transferred to Canada.
Towards the final months of the conflict, the Bristol Fighter was used in a pioneering new capability in the form of radio communications; No. 11 Squadron was the first such squadron to be equipped. When equipped with this system, only the flight commander’s Fighter would be equipped with a transmitter while others were outfitted with receivers, allowing for one-way communication of orders; as the trailing aerials employed needed to be wound in prior to aerial combat, this requirement reduced the usefulness of the system. The Fighter also participated in experiments held by the Royal Aircraft Establishment (RAE) into the use of parachutes, resulting in several aircraft being modified to carry static-line parachutes within the underside of the fuselage; these trials continued following the signing of the Armistice.
In September and October 1917, orders for 1,600 F.2B Fighters were placed; by the end of the First World War, the Royal Air Force (RAF) had a total of 1,583 F.2Bs in squadron service; it was in service with six reconnaissance squadrons stationed in France and five Home Defence squadrons, while further squadrons operating the type were positioned in the Middle East and Italy. A total of 5,329 aircraft were eventually constructed, mostly by Bristol but also by Standard Motors, Armstrong Whitworth and even the Cunard Steamship Company.According to Bruce, by the time of the Armistice of 11th November 1918, which brought an end to the conflict, the “Bristol Fighter ended the war supreme in its class”.
Following the end of the First World War, the F.2B Fighter was soon adopted by the RAF as its standard army cooperation machine. The type continued to operate in army cooperation and light bombing roles throughout the British Empire, in particular the Middle East and India. In line with this role, which led to its use under high-temperature conditions, Bristol introduced models of the Fighter equipped with ‘tropical’ radiators that could better handle operations within higher temperatures, and provision for desert equipment. There had also been considerations made into deploying the Fighter as a carrier-based aircraft, which led to an engineless airframe participating in immersion trials in November 1918, and a single aircraft being used in deck landing tests, reportedly on board HMS Eagle.
It was not until 1932 that the F.2B was finally withdrawn from RAF service, the last “Brisfit” unit being No. 20 Squadron RAF stationed in India. The type lasted a further three years in New Zealand. Aircraft that were deemed surplus to requirements were allocated to ADC Aircraft, a British company established to act as a reseller for wartime aircraft, which proceeded to sell on large quantities of Fighters to other nations, normally to military operators. Bristol also continued to manufacture and refurbish the type for some time. During the 1920s Bristol proceeded to develop and introduce numerous variants and derivatives of the Fighter, typically capable of carrying higher loads, revised tail units, and strengthened undercarriages.
The F.2B Fighter was adopted by the New Zealand Permanent Air Force and the Royal Australian Air Force (RAAF), as well as by the air forces of Belgium, Canada, Ireland, Greece, Mexico, Norway, Peru, Spain and Sweden. According to Bruce, relatively few Fighters entered service with the air forces of the various Commonwealth nations, greater quantities having been sold to other nations. Belgium purchased several from ADC Aircraft, and later arranged to produce the Fighter under licence at Sociétés Anonyme Belge de Constructions Aéronautiques (SABCA).
In 1920 Poland bought 106 Bristol Fighters (104 with Hispano-Suiza 300 hp/220 kW engines, two with RR Falcon III) (other sources claim 107). Thus it became the second largest user of this type. It was also one of most numerous Polish aircraft at that time. Forty Fighters were used during the Polish-Soviet war from July 1920, among others in the Battle of Warsaw, performing both reconnaissance and close air support missions. The rest of the order became operational only after the end of hostilities. During the war, a pair were shot down by ground fire, while another was captured by the Soviets and several more were lost in crashes. Survivors of the conflict continued in Polish service in the reconnaissance and training roles until 1932.
Corgi Aviation Archive 1/48th scale Bristol F2B Fighter D-8063, RAF No.139 Squadron, Villaverla, Italy, Sept 1918… available to pre-order from Flying Tigers.
This BRAND NEW TOOLING is selling very fast at pre-order stage. Collectors have been waiting for this new tooling ! Get your pre-order in quickly for this one . Please click on the images or links below to go straight to the model page for pre-order.
Hobbymaster Updated Photo Gallery.
Check out the latest photos from Hobbymaster that have now been added to the Flying Tigers website. Please click on the image of your choice to go straight to the model page.
Corgi Aviation Archive 1/72nd scale Junkers Ju88A-5 9K+ED, Stab III./KG51, Winter 1940.
The next Corgi Aviation Archive model is now in stock…. AA36712 Corgi Aviation Archive Junkers Ju88A-5 9K+ED, Stab III./KG51, Winter 1940. If you haven’t ordered yours yet don’t delay. Please click on the image below to go straight to the model page.

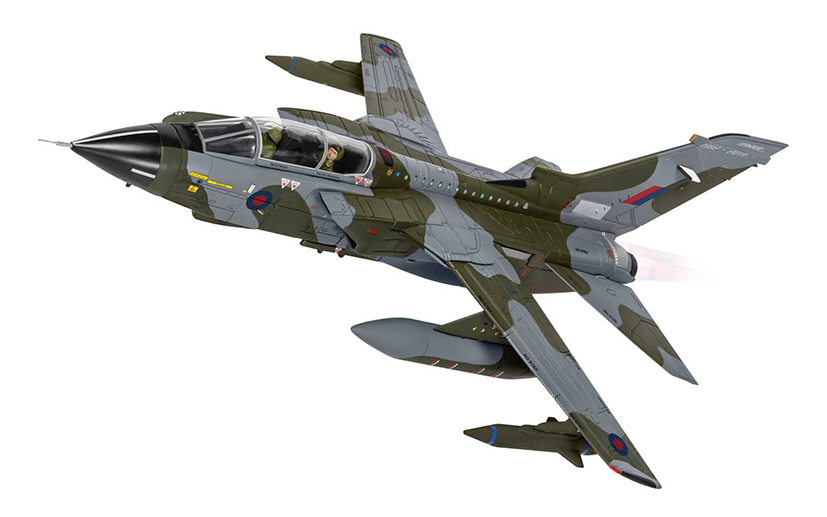

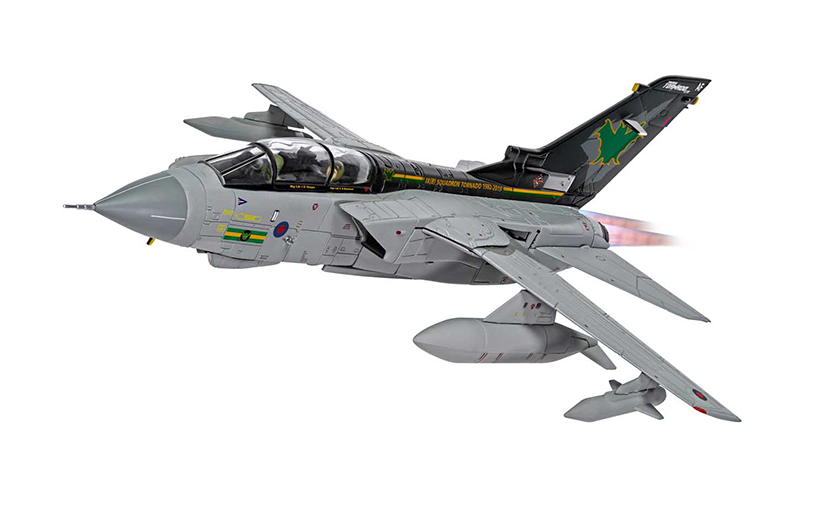

Corgi Aviation Archive Tornados available from Flying Tigers!
