Holloman AFB F-4 Phantom II

The McDonnell Douglas F-4 Phantom II is a tandem two-seat, twin-engine, all-weather, long-range supersonic jet interceptor aircraft/fighter-bomber originally developed for the United States Navy by McDonnell Aircraft. It first entered service in 1960 with the U.S. Navy. Proving highly adaptable, it was also adopted by the U.S. Marine Corps and the U.S. Air Force, and by the mid-1960s had become a major part of their respective air wings.

The Phantom is a large fighter with a top speed of over Mach 2.2. It can carry more than 18,000 pounds (8,400 kg) of weapons on nine external hardpoints, including air-to-air missiles, air-to-ground missiles, and various bombs. The F-4, like other interceptors of its time, was designed without an internal cannon. Later models incorporated an M61 Vulcan rotary cannon. Beginning in 1959, it set 15 world records for in-flight performance, including an absolute speed record, and an absolute altitude record.

During the Vietnam War, the F-4 was used extensively; it served as the principal air superiority fighter for both the Navy and Air Force, and became important in the ground-attack and aerial reconnaissance roles late in the war. The Phantom has the distinction of being the last U.S. fighter flown to attain ace status in the 20th century. During the Vietnam War, the U.S. Air Force had one pilot and two weapon systems officers (WSOs), and the US Navy had one pilot and one radar intercept officer (RIO) become aces by achieving five aerial kills against enemy fighter aircraft. The F-4 continued to form a major part of U.S. military air power throughout the 1970s and 1980s, being gradually replaced by more modern aircraft such as the F-15 Eagle and F-16 in the U.S. Air Force, the Grumman F-14 Tomcat in the U.S. Navy, and the F/A-18 Hornet in the U.S. Navy and U.S. Marine Corps.

The F-4 Phantom II remained in use by the U.S. in the reconnaissance and Wild Weasel (Suppression of Enemy Air Defenses) roles in the 1991 Gulf War, finally leaving service in 1996. It was also the only aircraft used by both U.S. flight demonstration teams: the USAF Thunderbirds (F-4E) and the US Navy Blue Angels (F-4J). The F-4 was also operated by the armed forces of 11 other nations. Israeli Phantoms saw extensive combat in several Arab–Israeli conflicts, while Iran used its large fleet of Phantoms in the Iran–Iraq War. Phantoms remain in front line service with five countries. Phantom production ran from 1958 to 1981, with a total of 5,195 built, making it the most numerous American supersonic military aircraft.

The F-4 is currently used by Greece, Iran, Japan, South Korea, and Turkey. It has been recently used in combat against the Islamic State.

Key figures in the F-4 development: David Lewis, Robert Little, and Herman Barkey

In 1952, McDonnell’s Chief of Aerodynamics, Dave Lewis, was appointed by CEO Jim McDonnell to be the company’s preliminary design manager. With no new aircraft competitions on the horizon, internal studies concluded the Navy had the greatest need for a new and different aircraft type: an attack fighter.

In 1953, McDonnell Aircraft began work on revising its F3H Demon naval fighter, seeking expanded capabilities and better performance. The company developed several projects including a variant powered by a Wright J67 engine, and variants powered by two Wright J65 engines, or two General Electric J79 engines. The J79-powered version promised a top speed of Mach 1.97. On 19th September 1953, McDonnell approached the United States Navy with a proposal for the “Super Demon”. Uniquely, the aircraft was to be modular—it could be fitted with one- or two-seat noses for different missions, with different nose cones to accommodate radar, photo cameras, four 20 mm (.79 in) cannon, or 56 FFAR unguided rockets in addition to the nine hardpoints under the wings and the fuselage. The Navy was sufficiently interested to order a full-scale mock-up of the F3H-G/H, but felt that the upcoming Grumman XF9F-9 and Vought XF8U-1 already satisfied the need for a supersonic fighter.

The McDonnell F3H-G/H mockup, 1954

The McDonnell design was therefore reworked into an all-weather fighter-bomber with 11 external hardpoints for weapons and on 18th October 1954, the company received a letter of intent for two YAH-1 prototypes. On 26th May 1955, four Navy officers arrived at the McDonnell offices and, within an hour, presented the company with an entirely new set of requirements. Because the Navy already had the Douglas A-4 Skyhawk for ground attack and F-8 Crusader for dogfighting, the project now had to fulfill the need for an all-weather fleet defense interceptor. A second crewman was added to operate the powerful radar.

The XF4H-1 was designed to carry four semi-recessed AAM-N-6 Sparrow III radar-guided missiles, and to be powered by two J79-GE-8 engines. As in the McDonnell F-101 Voodoo, the engines sat low in the fuselage to maximize internal fuel capacity and ingested air through fixed geometry intakes. The thin-section wing had a leading edge sweep of 45° and was equipped with blown flaps for better low-speed handling.

Wind tunnel testing had revealed lateral instability requiring the addition of 5° dihedral to the wings. To avoid redesigning the titanium central section of the aircraft, McDonnell engineers angled up only the outer portions of the wings by 12°, which averaged to the required 5° over the entire wingspan. The wings also received the distinctive “dogtooth” for improved control at high angles of attack. The all-moving tailplane was given 23° of anhedral to improve control at high angles of attack while still keeping the tailplane clear of the engine exhaust. In addition, air intakes were equipped with variable geometry ramps to regulate airflow to the engines at supersonic speeds. All-weather intercept capability was achieved thanks to the AN/APQ-50 radar. To accommodate carrier operations, the landing gear was designed to withstand landings with a sink rate of 23 ft/s (7 m/s), while the nose strut could extend by some 20 in (51 cm) to increase angle of attack at takeoff.

Cockpit of F-4 Phantom II

On 25th July 1955, the Navy ordered two XF4H-1 test aircraft and five YF4H-1 pre-production examples. The Phantom made its maiden flight on 27th May 1958 with Robert C. Little at the controls. A hydraulic problem precluded retraction of the landing gear but subsequent flights went more smoothly. Early testing resulted in redesign of the air intakes, including the distinctive addition of 12,500 holes to “bleed off” the slow-moving boundary layer air from the surface of each intake ramp. Series production aircraft also featured splitter plates to divert the boundary layer away from the engine intakes. The aircraft soon squared off against the XF8U-3 Crusader III. Due to operator workload, the Navy wanted a two-seat aircraft and on 17th December 1958 the F4H was declared a winner. Delays with the J79-GE-8 engines meant that the first production aircraft were fitted with J79-GE-2 and −2A engines, each having 16,100 lbf (71.8 kN) of afterburning thrust. In 1959, the Phantom began carrier suitability trials with the first complete launch-recovery cycle performed on 15th February 1960 from Independence.

There were proposals to name the F4H “Satan” and “Mithras”. In the end, the aircraft was given the less controversial name “Phantom II”, the first “Phantom” being another McDonnell jet fighter, the FH-1 Phantom. The Phantom II was briefly given the designation F-110A and the name “Spectre” by the USAF, but neither name was officially used.

Westinghouse AN/APQ-72

Early in production, the radar was upgraded to the Westinghouse AN/APQ-72, and AN-APG-50 with a larger radar antenna, necessitating the bulbous nose, and the canopy was reworked to improve visibility and make the rear cockpit less claustrophobic. During its career the Phantom underwent many changes in the form of numerous variants developed.

The USAF received Phantoms as the result of Defense Secretary Robert McNamara’s push to create a unified fighter for all branches of the military. After an F-4B won the “Operation Highspeed” fly-off against the Convair F-106 Delta Dart, the USAF borrowed two Naval F-4Bs, temporarily designating them F-110A “Spectre” in January 1962, and developed requirements for their own version. Unlike the navy’s focus on interception, the USAF emphasized a fighter-bomber role. With McNamara’s unification of designations on 18th September 1962, the Phantom became the F-4 with the naval version designated F-4B and USAF F-4C. The first air force Phantom flew on 27th May 1963, exceeding Mach 2 on its maiden flight.

An F4H-1F aboard Independence

The USN operated the F4H-1 (re-designated F-4A in 1962) with J79-GE-2 and -2A engines of 16,100 lbf (71.62 kN) thrust and later builds receiving -8 engines. A total of 45 F-4As were built and none saw combat and most ended up as test or training aircraft. The USN and USMC received the first definitive Phantom, the F-4B which was equipped with the Westinghouse APQ-72 radar (pulse only), a Texas Instruments AAA-4 Infra-red search and track pod under the nose, an AN/AJB-3 bombing system and powered by J79-GE-8,-8A and -8B engines of 10,900 lbf (48.5 kN) dry and 16,950 lbf (75.4 kN) afterburner (reheat) with the first flight on 25th March 1961. 649 F-4Bs were built with deliveries beginning in 1961 and VF-121 Pacemakers receiving the first examples at NAS Miramar.

The F-4J had improved air-to-air and ground-attack capability; deliveries begun in 1966 and ended in 1972 with 522 built. It was equipped with J79-GE-10 engines with 17,844 lbf (79.374 kN) thrust, the Westinghouse AN/AWG-10 Fire Control System (making the F-4J the first fighter in the world with operational look-down/shoot-down capability), a new integrated missile control system and the AN/AJB-7 bombing system for expanded ground attack capability.

The F-4N (updated F-4Bs) with smokeless engines and F-4J aerodynamic improvements started in 1972 under a U.S. Navy-initiated refurbishment program called “Project Bee Line” with 228 converted by 1978. The F-4S model resulted from the refurbishment of 265 F-4Js with J79-GE-17 smokeless engines of 17,900 lbf (79.379 kN), AWG-10B radar with digitized circuitry for improved performance and reliability, Honeywell AN/AVG-8 Visual Target Acquisition Set or VTAS (world’s first operational Helmet Sighting System), classified avionics improvements, airframe reinforcement and leading edge slats for enhanced maneuvering. The USMC also operated the RF-4B with reconnaissance cameras with 46 built.

Phantom II production ended in the United States in 1979 after 5,195 had been built (5,057 by McDonnell Douglas and 138 in Japan by Mitsubishi). Of these, 2,874 went to the USAF, 1,264 to the Navy and Marine Corps, and the rest to foreign customers. The last U.S.-built F-4 went to South Korea, while the last F-4 built was an F-4EJ built by Mitsubishi Heavy Industries in Japan and delivered on 20th May 1981. As of 2008, 631 Phantoms were in service worldwide, while the Phantom also remains in use as a target drone operated by the U.S. military.

The Blue Angels flew the F-4J, 1969–74

To show off their new fighter, the Navy led a series of record-breaking flights early in Phantom development: All in all, the Phantom set 16 world records. Except for Skyburner, all records were achieved in unmodified production aircraft. Five of the speed records remained unbeaten until the F-15 Eagle appeared in 1975.

  • Operation Top Flight: On 6th December 1959, the second XF4H-1 performed a zoom climb to a world record 98,557 ft (30,040 m). Commander Lawrence E. Flint, Jr., USN accelerated his aircraft to Mach 2.5 (1,650 mph; 2,660 km/h) at 47,000 ft (14,330 m) and climbed to 90,000 ft (27,430 m) at a 45° angle. He then shut down the engines and glided to the peak altitude. As the aircraft fell through 70,000 ft (21,300 m), Flint restarted the engines and resumed normal flight.
  • On 5th September 1960, an F4H-1 averaged 1,216.78 mph (1,958.16 km/h) over a 500 km (311 mi) closed-circuit course.
  • On 25th September 1960, an F4H-1F averaged 1,390.24 mph (2,237.37 km/h) over a 100 km (62.1 mi) closed-circuit course.FAIRecord File Number 8898.
  • Operation LANA: To celebrate the 50th anniversary of Naval aviation (L is the Roman numeral for 50 and ANA stood for Anniversary of Naval Aviation) on 24th May 1961, Phantoms flew across the continental United States in under three hours and included several tanker refuelings. The fastest of the aircraft averaged 869.74 mph (1,400.28 km/h) and completed the trip in 2 hours 47 minutes, earning the pilot (and future NASA Astronaut), Lieutenant Richard Gordon, USN and RIO, Lieutenant Bobbie Young, USN, the 1961 Bendix trophy.
  • Operation Sageburner: On 28th August 1961, a F4H-1F Phantom II averaged 1,452.777 kilometers per hour (902.714 miles per hour) over a 3 mi (4.82 km) course flying below 125 feet (38.1 m) at all times. Commander J.L. Felsman, USN was killed during the first attempt at this record on 18th May 1961 when his aircraft disintegrated in the air after pitch damper failure.
  • Operation Skyburner: On 22nd November 1961, a modified Phantom with water injection piloted by Lt. Col. Robert B. Robinson, set an absolute world record average speed over a 20-mile (32.2 km) long 2-way straight course of 1,606.342 mph (2,585.086 km/h).
  • On 5th December 1961, another Phantom set a sustained altitude record of 66,443.8 feet (20,252 m).
    Operation High Jump: A series of time-to-altitude records was set in early 1962: 34.523 seconds to 3,000 meters (9,840 ft), 48.787 seconds to 6,000 meters (19,700 ft), 61.629 seconds to 9,000 meters (29,500 ft), 77.156 seconds to 12,000 meters (39,400 ft), 114.548 seconds to 15,000 meters (49,200 ft), 178.5 seconds to 20,000 meters (65,600 ft), 230.44 seconds to 25,000 metres (82,000 ft), and 371.43 seconds to 30,000 metres (98,400 ft).

F-4 Phantom engines

The F-4 Phantom is a tandem-seat fighter-bomber designed as a carrier-based interceptor to fill the U.S. Navy’s fleet defense fighter role. Innovations in the F-4 included an advanced pulse-Doppler radar and extensive use of titanium in its airframe.

Despite imposing dimensions and a maximum takeoff weight of over 60,000 lb (27,000 kg), the F-4 has a top speed of Mach 2.23 and an initial climb rate of over 41,000 ft/min (210 m/s). The F-4’s nine external hardpoints have a capability of up to 18,650 pounds (8,480 kg) of weapons, including air-to-air and air-to-surface missiles, and unguided, guided, and thermonuclear weapons. Like other interceptors of its day, the F-4 was designed without an internal cannon.

The baseline performance of a Mach 2-class fighter with long range and a bomber-sized payload would be the template for the next generation of large and light/middle-weight fighters optimized for daylight air combat.

In air combat, the Phantom’s greatest advantage was its thrust, which permitted a skilled pilot to engage and disengage from the fight at will. As a massive fighter aircraft designed to fire radar-guided missiles from beyond visual range, it lacked the agility of its Soviet opponents and was subject to adverse yaw during hard maneuvering. Although thus subject to irrecoverable spins during aileron rolls, pilots reported the aircraft to be very communicative and easy to fly on the edge of its performance envelope. In 1972, the F-4E model was upgraded with leading edge slats on the wing, greatly improving high angle of attack maneuverability at the expense of top speed.

The J79 engines produced noticeable amounts of black smoke (at mid-throttle/cruise settings), a severe disadvantage in that the enemy could spot the aircraft. This was solved on the F-4S fitted with the −10A engine variant which used a smokeless combustor.

The F-4’s biggest weakness, as it was initially designed, was its lack of an internal cannon. For a brief period, doctrine held that turning combat would be impossible at supersonic speeds and little effort was made to teach pilots air combat maneuvering. In reality, engagements quickly became subsonic, as pilots would slow down in an effort to get behind their adversaries. Furthermore, the relatively new heat-seeking and radar-guided missiles at the time were frequently reported as unreliable and pilots had to use multiple shots (also known as ripple-firing), just to hit one enemy fighter. To compound the problem, rules of engagement in Vietnam precluded long-range missile attacks in most instances, as visual identification was normally required. Many pilots found themselves on the tail of an enemy aircraft but too close to fire short-range Falcons or Sidewinders. Although by 1965 USAF F-4Cs began carrying SUU-16 external gunpods containing a 20 mm (.79 in) M61A1 Vulcan Gatling cannon, USAF cockpits were not equipped with lead-computing gunsights until the introduction of the SUU-23, virtually assuring a miss in a maneuvering fight. Some Marine Corps aircraft carried two pods for strafing. In addition to the loss of performance due to drag, combat showed the externally mounted cannon to be inaccurate unless frequently boresighted, yet far more cost-effective than missiles. The lack of a cannon was finally addressed by adding an internally mounted 20 mm (.79 in) M61A1 Vulcan on the F-4E.

VF-74 was the first operational U.S. Navy Phantom squadron in 1961

On 30th December 1960, the VF-121 “Pacemakers” at NAS Miramar became the first Phantom operator with its F4H-1Fs (F-4As). The VF-74 “Be-devilers” at NAS Oceana became the first deployable Phantom squadron when it received its F4H-1s (F-4Bs) on 8th July 1961. The squadron completed carrier qualifications in October 1961 and Phantom’s first full carrier deployment between August 1962 and March 1963 aboard Forrestal. The second deployable U.S. Atlantic Fleet squadron to receive F-4Bs was the VF-102 “Diamondbacks”, who promptly took their new aircraft on the shakedown cruise of Enterprise. The first deployable U.S. Pacific Fleet squadron to receive the F-4B was the VF-114 “Aardvarks”, which participated in the September 1962 cruise aboard USS Kitty Hawk.

By the time of the Tonkin Gulf incident, 13 of 31 deployable navy squadrons were armed with the type. F-4Bs from Constellation made the first Phantom combat sortie of the Vietnam War on 5th August 1964, flying bomber escort in Operation Pierce Arrow. The first Phantom air-to-air victory of the war took place on 9th April 1965 when an F-4B from VF-96 “Fighting Falcons” piloted by Lieutenant (junior grade) Terence M. Murphy and his RIO, Ensign Ronald Fegan, shot down a Chinese MiG-17 “Fresco”. The Phantom was then shot down, probably by an AIM-7 Sparrow from one of its wingmen. There continues to be controversy over whether the Phantom was shot down by MiG guns or, as enemy reports later indicated, an AIM-7 Sparrow III from one of Murphy’s and Fegan’s wingmen. On 17th June 1965, an F-4B from VF-21 “Freelancers” piloted by Commander Louis Page and Lieutenant John C. Smith shot down the first North Vietnamese MiG of the war.

VF-96 F-4J “Showtime 100” armed with Sidewinder and Sparrow missiles

On 10th May 1972, Lieutenant Randy “Duke” Cunningham and Lieutenant (junior grade) William P. Driscoll flying an F-4J, call sign “Showtime 100”, shot down three MiG-17s to become the first American flying aces of the war. Their fifth victory was believed at the time to be over a mysterious North Vietnamese ace, Colonel Nguyen Toon, now considered mythical. On the return flight, the Phantom was damaged by an enemy surface-to-air missile. To avoid being captured, Cunningham and Driscoll flew their burning aircraft using only the rudder and afterburner (the damage to the aircraft rendered conventional control nearly impossible), until they could eject over water.
During the war, U.S. Navy F-4 Phantom squadrons participated in 84 combat tours with F-4Bs, F-4Js, and F-4Ns. The navy claimed 40 air-to-air victories at a cost of 73 Phantoms lost in combat (seven to enemy aircraft, 13 to SAMs, and 53 to AAA). An additional 54 Phantoms were lost in mishaps.

In 1984, the F-4Ns had been retired, and by 1987 the last F-4Ss were retired in the US Navy deployable squadrons. On 25th March 1986, an F-4S belonging to the VF-151 “Vigilantes,” became the last active duty U.S. Navy Phantom to launch from an aircraft carrier, in this case, Midway. On 18th October 1986, an F-4S from the VF-202 “Superheats”, a Naval Reserve fighter squadron, made the last-ever Phantom carrier landing while operating aboard America. In 1987, the last of the Naval Reserve-operated F-4S aircraft were replaced by F-14As. The last Phantoms in service with the Navy were QF-4 target drones operated by the Naval Air Warfare Center at NAS Point Mugu, California. These airframes were subsequently retired in 2004

435th TFS F-4Ds over Vietnam

The Marine Corps received its first F-4Bs in June 1962, with the “Black Knights” of VMFA-314 at Marine Corps Air Station El Toro, California becoming the first operational squadron. Marine Phantoms from VMFA-531 ‘Gray Ghosts’ were assigned to Da Nang airbase on South Vietnam’s northeast coast on 10th May 1965 and were initially assigned to provide air defense for the USMC. They soon began close air support missions (CAS) and VMFA-314 ‘Black Knights’, VMFA-232 ‘Red Devils, VMFA-323 ‘Death Rattlers’, and VMFA-542 ‘Bengals’ soon arrived at the primitive airfield. Marine F-4 pilots claimed three enemy MiGs (two while on exchange duty with the USAF) at the cost of 75 aircraft lost in combat, mostly to ground fire, and four in accidents. VMCJ-1 Golden Hawks (now VMAQ-1 and VMAQ-4 which has the old RM tailcode) flew the first RF-4B photo recon mission on 3rd November 1966 from Da Nang and remained there until 1970 with no RF-4B losses and one damaged by AAA. VMCJ-2 and VMCJ-3 (now VMAQ-3) provided aircraft for VMCJ-1 in Da Nang and VMFP-3 was formed in 1975 at MCAS El Toro, CA consolidating all USMC RF-4-Bs in one unit that became known as “The Eyes of the Corps.” VMFP-3 disestablished in August 1990 after the Advanced Tactical Airborne Reconnaissance System was introduced for the F/A-18 Hornet. The F-4 continued to equip fighter-attack squadrons in both Marine Corps active and reserve units throughout the 1960s, 1970s and 1980s and into the early 1990s. In the early 1980s, these squadrons began to transition to the F/A-18 Hornet, starting with the same squadron that introduced the F-4 to the Marine Corps, VMFA-314 at MCAS El Toro, California. On 18th January 1992, the last Marine Corps Phantom, an F-4S in the Marine Corps Reserve, was retired by the “Cowboys” of VMFA-112, after which the squadron was re-equipped with F/A-18 Hornets.

A Fighter Squadron 74 (VF-74) F-4J Phantom II aircraft lands aboard the attack aircraft carrier USS AMERICA (CVA-66) 1972

In USAF service, the F-4 was initially designated the F-110 Spectre prior to the introduction of the 1962 United States Tri-Service aircraft designation system. The USAF quickly embraced the design and became the largest Phantom user. The first USAF Phantoms in Vietnam were F-4Cs from the 555th Tactical Fighter Squadron “Triple Nickel”, which arrived in December 1964.

Unlike the U.S. Navy and U.S. Marine Corps, which flew the Phantom with a Naval Aviator (pilot) in the front seat and a Naval Flight Officer as a radar intercept officer (RIO) in the back seat, the USAF initially flew its Phantoms with a rated Air Force Pilot in front and back seats. While the rear pilot (GIB, or “guy in back”) could fly and ostensibly land the aircraft, he had fewer flight instruments and a very restricted forward view. The Air Force later assigned a rated Air Force Navigator qualified as a weapon/targeting systems officer (later designated as weapon systems officer or WSO) in the rear seat instead of another pilot. However, all USAF Phantoms retained dual flight controls throughout their service life.

On 10th July 1965, F-4Cs of the 45th Tactical Fighter Squadron, 15th TFW, on temporary assignment in Ubon, Thailand, scored the USAF’s first victories against North Vietnamese MiG-17s using AIM-9 Sidewinder air-to-air missiles. On 26th April 1966, an F-4C from the 480th Tactical Fighter Squadron scored the first aerial victory by a U.S. aircrew over a North Vietnamese MiG-21 “Fishbed”. On 24th July 1965, another Phantom from the 45th Tactical Fighter Squadron became the first American aircraft to be downed by an enemy SAM, and on 5 October 1966 an 8th Tactical Fighter Wing F-4C became the first U.S. jet lost to an air-to-air missile, fired by a MiG-21.

Early aircraft suffered from leaks in wing fuel tanks that required re-sealing after each flight and 85 aircraft were found to have cracks in outer wing ribs and stringers. There were also problems with aileron control cylinders, electrical connectors, and engine compartment fires. Reconnaissance RF-4Cs made their debut in Vietnam on 30th October 1965, flying the hazardous post-strike reconnaissance missions. The USAF Thunderbirds used the F-4E from the 1969 season until 1974.

Although the F-4C was essentially identical to the Navy/Marine Corps F-4B in flight performance and carried the AIM-9 Sidewinder missiles, USAF-tailored F-4Ds initially arrived in June 1967 equipped with AIM-4 Falcons. However, the Falcon, like its predecessors, was designed to shoot down heavy bombers flying straight and level. Its reliability proved no better than others and its complex firing sequence and limited seeker-head cooling time made it virtually useless in combat against agile fighters. The F-4Ds reverted to using Sidewinders under the “Rivet Haste” program in early 1968, and by 1972 the AIM-7E-2 “Dogfight Sparrow” had become the preferred missile for USAF pilots. Like other Vietnam War Phantoms, the F-4Ds were urgently fitted with radar homing and warning (RHAW) antennas to detect the Soviet-built S-75 Dvina SAMs.

A flight of U.S. Air Force F-4C Phantom fighter bombers refuel from a KC-135 tanker aircraft prior to making a strike against communist targets in North Vietnam. The Phantoms are fully loaded with 750 pound general purpose bombs and rockets. (U.S. Air Force photo)

From the initial deployment of the F-4C to Southeast Asia, USAF Phantoms performed both air superiority and ground attack roles, supporting not only ground troops in South Vietnam but also conducting bombing sorties in Laos and North Vietnam. As the F-105 force underwent severe attrition between 1965 and 1968, the bombing role of the F-4 proportionately increased until after November 1970 (when the last F-105D was withdrawn from combat) it became the primary USAF tactical ordnance delivery system. In October 1972 the first squadron of EF-4C Wild Weasel aircraft deployed to Thailand on temporary duty. The “E” prefix was later dropped and the aircraft was simply known as the F-4C Wild Weasel.

Sixteen squadrons of Phantoms were permanently deployed between 1965 and 1973, and 17 others deployed on temporary combat assignments. Peak numbers of combat F-4s occurred in 1972, when 353 were based in Thailand. A total of 445 Air Force Phantom fighter-bombers were lost, 370 in combat and 193 of those over North Vietnam (33 to MiGs, 30 to SAMs, and 307 to AAA).

A U.S. Navy F-4B from VF-111 dropping bombs over Vietnam, 1971

The RF-4C was operated by four squadrons, and of the 83 losses, 72 were in combat including 38 over North Vietnam (seven to SAMs and 65 to AAA). By war’s end, the U.S. Air Force had lost a total of 528 F-4 and RF-4C Phantoms. When combined with U.S. Navy and Marine Corps losses of 233 Phantoms, 761 F-4/RF-4 Phantoms were lost in the Vietnam War.

On 28th August 1972, Captain Steve Ritchie became the first USAF ace of the war. On 9th September 1972, WSO Capt Charles B. DeBellevue became the highest-scoring American ace of the war with six victories. and WSO Capt Jeffrey Feinstein became the last USAF ace of the war on 13th October 1972. Upon return to the United States, DeBellevue and Feinstein were assigned to undergraduate pilot training (Feinstein was given a vision waiver) and requalified as USAF pilots in the F-4. USAF F-4C/D/E crews scored 107½ MiG kills in Southeast Asia (50 by Sparrow, 31 by Sidewinder, five by Falcon, 15.5 by gun, and six by other means).

On 31st January 1972, the 170th Tactical Fighter Squadron/183d Tactical Fighter Group of the Illinois Air National Guard became the first Air National Guard unit to transition to Phantoms from Republic F-84F Thunderstreaks which were found to have corrosion problems. Phantoms would eventually equip numerous tactical fighter and tactical reconnaissance units in the USAF active, National Guard, and reserve.

USAF RF-4C Phantom II destroyed during the enemy attack against Tan Son Nhut during the Tet Offensive

On 2nd June 1972, a Phantom flying at supersonic speed shot down a MiG-19 over Thud Ridge in Vietnam for the first supersonic gun kill. At a recorded speed of Mach 1.2, Major Phil Handley’s shoot down was the first and only recorded gun kill while flying at supersonic speeds.

On 15th August 1990, 24 F-4G Wild Weasel Vs and six RF-4Cs were deployed to Shaikh Isa AB, Bahrain, for Operation Desert Storm. The F-4G was the only aircraft in the USAF inventory equipped for the Suppression of Enemy Air Defenses (SEAD) role, and was needed to protect coalition aircraft from Iraq’s extensive air defense system. The RF-4C was the only aircraft equipped with the ultra-long-range KS-127 LOROP (long-range oblique photography) camera, and was used for a variety of reconnaissance missions. In spite of flying almost daily missions, only one RF-4C was lost in a fatal accident before the start of hostilities. One F-4G was lost when enemy fire damaged the fuel tanks and the aircraft ran out of fuel near a friendly airbase. The last USAF Phantoms, F-4G Wild Weasel Vs from 561st Fighter Squadron, were retired on 26th March 1996. The last operational flight of the F-4G Wild Weasel was from the 190th Fighter Squadron, Idaho Air National Guard, in April 1996. The last operational USAF/ANG F-4 to land was flown by Maj Mike Webb and Maj Gary Leeder of the Idaho ANG.

USAFE F-4G, A-10A and RF-4C in 1987

Like the Navy, the Air Force has operated QF-4 target drones, serving with the 82d Aerial Targets Squadron at Tyndall Air Force Base, Florida, and Holloman Air Force Base, New Mexico. It was expected that the F-4 would remain in the target role with the 82d ATRS until at least 2015, when they would be replaced by early versions of the F-16 Fighting Falcon converted to a QF-16 configuration. Several QF-4s also retain capability as manned aircraft and are maintained in historical color schemes, being displayed as part of Air Combat Command’s Heritage Flight at air shows, base open houses, and other events while serving as non-expendable target aircraft during the week. On 19 November 2013, BAE Systems delivered the last QF-4 aerial target to the Air Force. The example had been in storage for over 20 years before being converted. Over 16 years, BAE had converted 314 F-4 and RF-4 Phantom IIs into QF-4s and QRF-4s, with each aircraft taking six months to adapt.

QF-4E AF Serial No. 74-1626 at McGuire AFB in May 2007 with an A-10 in the background.

As of December 2013, QF-4 and QRF-4 aircraft had flown over 16,000 manned and 600 unmanned training sorties, with 250 unmanned aircraft being shot down in firing exercises. The remaining QF-4s and QRF-4s held their training role until the first of 126 QF-16s were delivered by Boeing. The final flight of an Air Force QF-4 from Tyndall AFB took place on 27th May 2015 to Holloman AFB. After Tyndall AFB ceased operations, the 53d Weapons Evaluation Group at Holloman became the fleet of 22 QF-4s’ last remaining operator. The base continued using them to fly manned test and unmanned live fire test support and Foreign Military Sales testing, with the final unmanned flight taking place in August 2016. The type was officially retired from US military service with a four ship flight at Holloman during an event on December 21st 2016.  In January 2017, the remaining airframes will be demilitarized.

The Collings Foundation F-4D Phantom II, with Vietnam-era “Ritchie/DeBellevue” markings, taxis at Selfridge ANGB, May 2005

The Phantom has served with the air forces of many countries, including Australia, Egypt, Germany, United Kingdom, Greece, Iran, Israel, Japan, Spain, South Korea and Turkey

The Royal Australian Air Force (RAAF) leased 24 USAF F-4Es from 1970 to 1973 while waiting for their order for the General Dynamics F-111C to be delivered. They were so well-liked that the RAAF considered retaining the aircraft after the F-111Cs were delivered. They were operated from RAAF Amberley by No. 1 Squadron and No. 6 Squadron.

Egyptian Air Force F-4E Phantom IIs of the 222nd Tactical Fighter Brigade in formation with a U.S Air Force 347th Tactical Fighter Wing F-4E Phantom II during exercise Proud Phantom

In 1979, the Egyptian Air Force purchased 35 former USAF F-4Es along with a number of Sparrow, Sidewinder, and Maverick missiles from the U.S. for $594 million as part of the “Peace Pharaoh” program. An additional seven surplus USAF aircraft were purchased in 1988. Three attrition replacements had been received by the end of the 1990s.

McDonnell RF-4E Phantom II of the Luftwaffe’s AKG52 unit in 1977.

The German Air Force (Luftwaffe) initially ordered the reconnaissance RF-4E in 1969, receiving a total of 88 aircraft from January 1971. In 1982, the initially unarmed RF-4Es were given a secondary ground attack capability; these aircraft were later retired in 1994.

In 1973, under the “Peace Rhine” program, the Luftwaffe purchased the F-4F (a lightened and simplified version of the F-4E) which was upgraded in the mid-1980s. 24 German F-4F Phantom IIs were operated by the 49th Tactical Fighter Wing of the USAF at Holloman AFB to train Luftwaffe crews until December 2004. In 1975, Germany also received 10 F-4Es for training in the U.S. In the late 1990s, these were withdrawn from service after being replaced by F-4Fs. Germany also initiated the Improved Combat Efficiency (ICE) program in 1983. The 110 ICE-upgraded F-4Fs entered service in 1992, and were expected to remain in service until 2012. All the remaining Luftwaffe Phantoms were based at Wittmund with Jagdgeschwader 71 (fighter wing 71) in Northern Germany and WTD61 at Manching. The German Air Force retired its last F-4Fs on 29th June 2013. German F-4Fs flew 279,000 hours from entering service on 31st August 1973 until retirement.

Hellenic Air Force RF-4E Phantom II in a special color scheme, lands at RIAT 2008, UK

In 1971, the Hellenic Air Force ordered brand new F-4E Phantoms, with deliveries starting in 1974. In the early 1990s, the Hellenic AF acquired surplus RF-4Es and F-4Es from the Luftwaffe and U.S. ANG.

Following the success of the German ICE program, on 11th August 1997, a contract was signed between DASA of Germany and Hellenic Aerospace Industry for the upgrade of 39 aircraft to the very similar “Peace Icarus 2000” standard. The Hellenic AF operates 34 upgraded F-4E-PI2000 (338 and 339 Squadrons) and 12 RF-4E aircraft (348 Squadron) as of September 2013.

Iranian F-4 Phantoms

In the 1960s and 1970s when the U.S. and Iran were on friendly terms, the U.S. sold 225 F-4D, F-4E, and RF-4E Phantoms to Iran. The Imperial Iranian Air Force saw at least one engagement, resulting in a loss, after an RF-4C was rammed by a Soviet MiG-21 during Project Dark Gene, an ELINT operation during the Cold War.

The Islamic Republic of Iran Air Force Phantoms saw heavy action in the Iran–Iraq War in the 1980s and are kept operational by overhaul and servicing from Iran’s aerospace industry. Notable operations of Iranian F-4s during the war included Operation Scorch Sword, an attack by two F-4s against the Iraqi Osirak nuclear reactor site near Baghdad on 30th September 1980, and the attack on H3, a 4th April 1981 strike by eight Iranian F-4s against the H-3 complex of air bases in the far west of Iraq, which resulted in many Iraqi aircraft being destroyed or damaged for no Iranian losses.

On 5th June 1984, two Saudi Arabian fighter pilots shot down two Iranian F-4 fighters. The Royal Saudi Air Force pilots were flying American-built F-15s and fired air-to-air missiles to bring down the Iranian planes. The Saudi fighter pilots had KC-135 aerial tanker planes and Boeing E-3 Sentry AWACS surveillance planes assist in the encounter. The aerial fight occurred in Saudi airspace over the Gulf near the Saudi island Al Arabiyah, about 60 miles northeast of Jubail.

Iranian F-4s were in use as of late 2014; the aircraft reportedly conducted air strikes on ISIS targets in the eastern Iraqi province of Diyala.

Israeli Air Force 201 Squadron F-4E Phantom II at Tel Nof, Independence Day 2013

The Israeli Air Force was the largest foreign operator of the Phantom, flying both newly built and ex-USAF aircraft, as well as several one-off special reconnaissance variants. The first F-4Es, nicknamed “Kurnass” (Sledgehammer), and RF-4Es, nicknamed “Orev” (Raven), were delivered in 1969 under the “Peace Echo I” program. Additional Phantoms arrived during the 1970s under “Peace Echo II” through “Peace Echo V” and “Nickel Grass” programs. Israeli Phantoms saw extensive combat during Arab–Israeli conflicts, first seeing action during the War of Attrition. In the 1980s, Israel began the “Kurnass 2000” modernization program which significantly updated avionics. The last Israeli F-4s were retired in 2004.

A pair of F-4EJs with their grey air superiority paint scheme

From 1968, the Japan Air Self-Defense Force purchased a total of 140 F-4EJ Phantoms without aerial refueling, AGM-12 Bullpup missile system, nuclear control system or ground attack capabilities. Mitsubishi built 138 under license in Japan and 14 unarmed reconnaissance RF-4Es were imported. Of these, 96 F-4EJs have since been modified to the F-4EJ Kai standard. 15 F-4EJs were converted to reconnaissance aircraft designated RF-4EJ, with similar upgrades as the F-4EJ Kai. Japan had a fleet of 90 F-4s in service in 2007. After studying several replacement fighters the F-35 Lightning II was chosen in 2011. As of 2017 all three of Japan’s remaining Phantom squadrons are based at Hyakuri Air Base.

A South Korean F-4E, armed with an AGM-65 Maverick air-to-ground missile

The Republic of Korea Air Force purchased its first batch of secondhand USAF F-4D Phantoms in 1968 under the “Peace Spectator” program. The F-4Ds continued to be delivered until 1988. The “Peace Pheasant II” program also provided new-built and former USAF F-4Es.

Spanish Air Force RF-4C Phantom II

The Spanish Air Force acquired its first batch of ex-USAF F-4C Phantoms in 1971 under the “Peace Alfa” program. Designated C.12, the aircraft were retired in 1989. At the same time, the air arm received a number of ex-USAF RF-4Cs, designated CR.12. In 1995–1996, these aircraft received extensive avionics upgrades. Spain retired its RF-4s in 2002.

Retired Turkish Air Force F-4E Phantom II, serial number 67-0360, housed at the Istanbul Aviation Museum

The Turkish Air Force (TAF) received 40 F-4Es in 1974, with a further 32 F-4Es and 8 RF-4Es in 1977–78 under the “Peace Diamond III” program, followed by 40 ex-USAF aircraft in “Peace Diamond IV” in 1987, and a further 40 ex-U.S. Air National Guard Aircraft in 1991. A further 32 RF-4Es were transferred to Turkey after being retired by the Luftwaffe between 1992 and 1994. In 1995, Israel Aerospace Industries (IAI) implemented an upgrade similar to Kurnass 2000 on 54 Turkish F-4Es which were dubbed the F-4E 2020 Terminator. Turkish F-4s, and more modern F-16s have been used to strike Kurdish PKK bases in ongoing military operations in Northern Iraq. On 22nd June 2012, a Turkish RF-4E was shot down by Syrian air defenses while flying a reconnaissance flight near the Turkish-Syrian border. Turkey has stated the reconnaissance aircraft was in international airspace when it was shot down, while Syrian authorities stated it was inside Syrian airspace. Turkish F-4s remained in use as of 2015.

On 24th February 2015, two RF-4Es crashed in the Malatya region in the southeast of Turkey, under yet unknown circumstances, killing both crew of two each. On 5th March 2015, an F-4E-2020 crashed in central Anatolia killing both crew. After the recent accidents, the TAF withdrew RF-4Es from active service. Turkey was reported to have used F-4 jets to attack PKK separatists and the ISIS capital on 19th September 2015. The Turkish Air Force has reportedly used the F-4E 2020s against the more recent Third Phase of the PKK conflict on heavy bombardment missions into Iraq on 15th November 2015, 12th January 2016, and 12th March 2016.

Royal Navy F-4K Phantom FG1, .late 1970s

The United Kingdom bought versions based on the U.S. Navy’s F-4J for use with the Royal Air Force and the Royal Navy’s Fleet Air Arm. The main differences were the use of the British Rolls-Royce Spey engines and of British-made avionics. The RN and RAF versions were given the designation F-4K and F-4M respectively, and entered service with the British military aircraft designations Phantom FG.1 (fighter/ground attack) and Phantom FGR.2 (fighter/ground attack/reconnaissance).Initially, the FGR.2 was used in the ground attack and reconnaissance role, primarily with RAF Germany, while 43 Squadron was formed in the air defence role using the FG.1s that had been intended for the Fleet Air Arm for use aboard HMS Eagle. The superiority of the Phantom over the English Electric Lightning in terms of both range and weapon load, combined with the successful introduction of the SEPECAT Jaguar, meant that, during the mid-1970s, most of the ground attack Phantoms in Germany were redeployed to the UK to replace air defence Lightning squadrons. A second RAF squadron, 111 Squadron, was formed on the FG.1 in 1979 after the disbandment of 892 NAS.

In 1982, during the Falklands War, three Phantom FGR2s of No. 29 Squadron were on active Quick Reaction Alert duty on Ascension Island to protect the base from air attack. After the Falklands War, 15 upgraded ex-USN F-4Js, known as the F-4J(UK) entered RAF service to compensate for one interceptor squadron redeployed to the Falklands.

RAF Coningsby. Royal Air Force McDonnell Douglas F-4 Phantom. c 1971.

Around 15 RAF squadrons received various marks of Phantom, many of them based in Germany. The first to be equipped was No. 6 Squadron at RAF Leuchars in July 1969. One noteworthy deployment was to No. 43 Squadron where Phantom FG1s remained the squadron equipment for 20 years, arriving in September 1969 and departing in July 1989. During this period the squadron was based at Leuchars.

The interceptor Phantoms were replaced by the Panavia Tornado F3 from the late 1980s onwards, and the last British Phantoms were retired in October 1992 when No. 74 Squadron was disbanded.

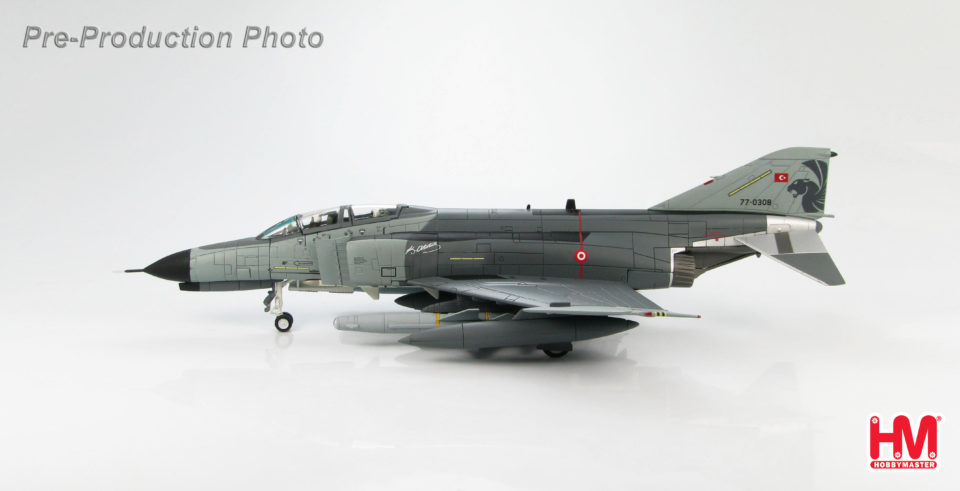

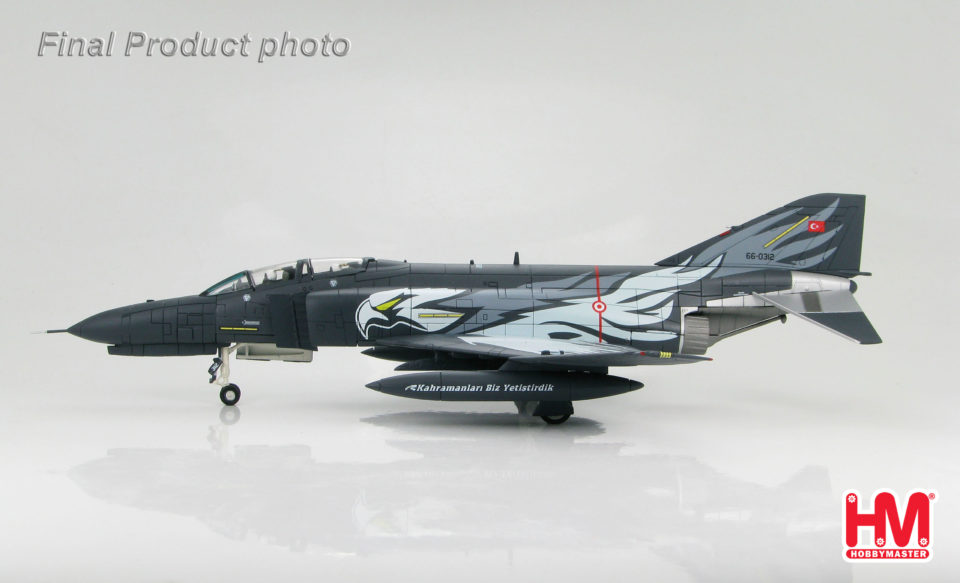

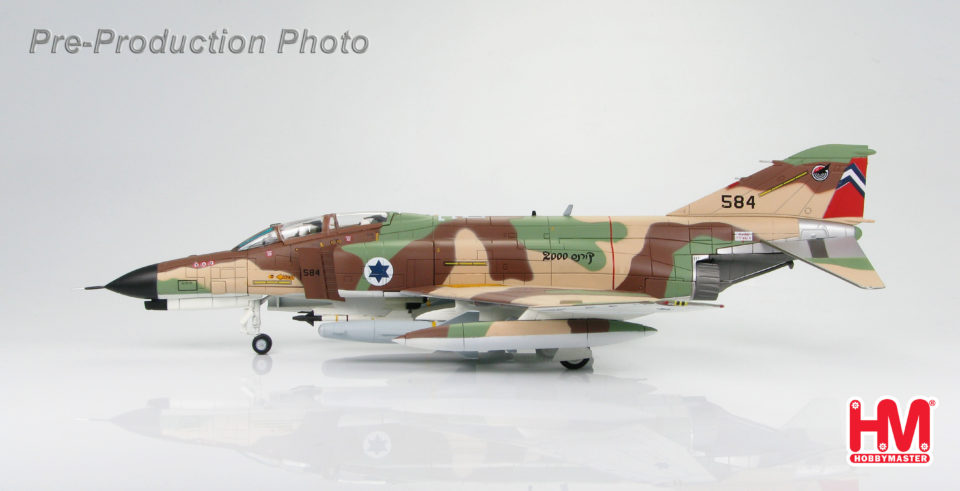

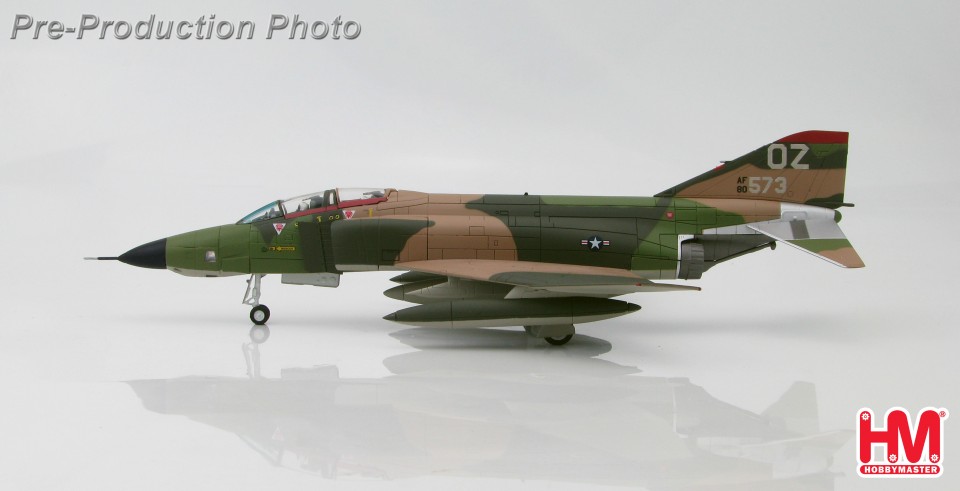

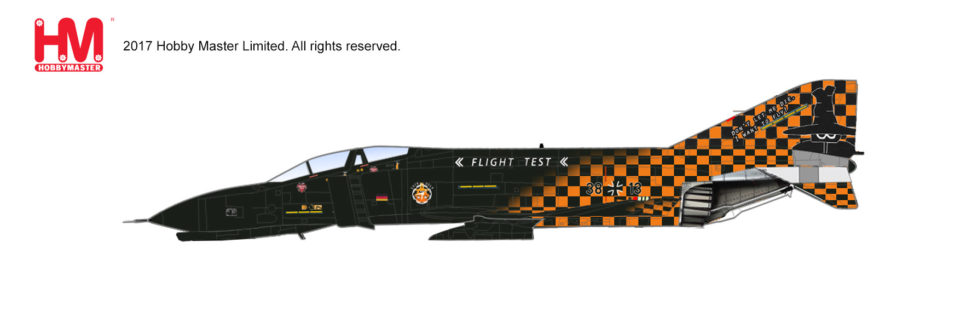

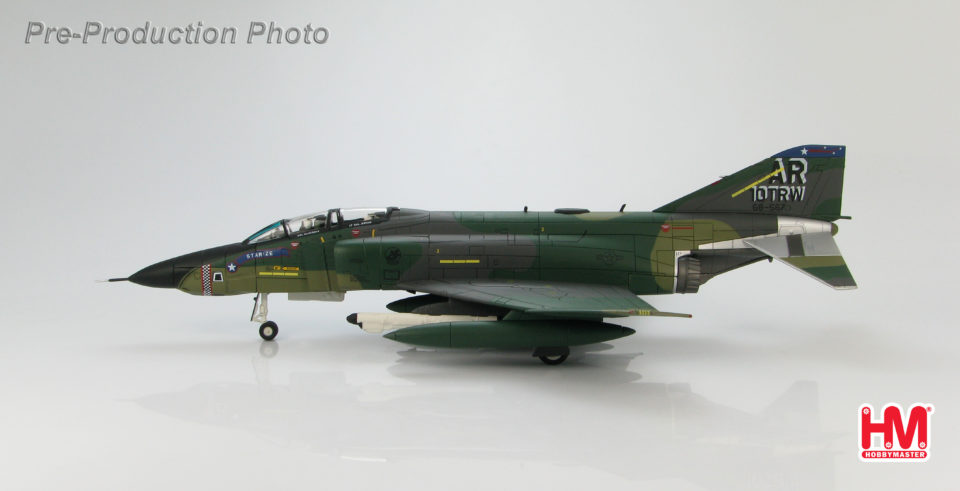

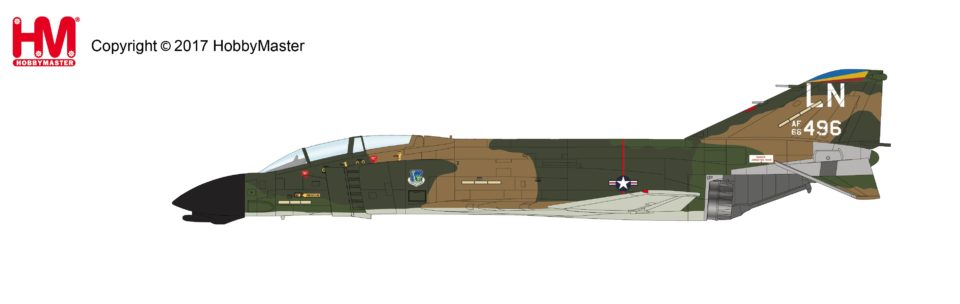

Hobbymaster Phabulous Phantoms

I have listed Nineteen Hobbymaster Phantoms for you to chose from this Easter Weekend. Most of these are in stock now and a few are new and available to pre-order. Please click on the individual images and links below to go to the model of your choice or CLICK HERE to see them all.




Easter Weekend Special Offer !

For this weekend you can take advantage of the wide choice of models throughout the website and FREE delivery. Please read the Terms and conditions of this offer below:-

TERMS & CONDITIONS

This Easter Weekend’s Special Offer is FREE Postage/ Shipping . This offer is limited to the United Kingdom and Northern Ireland only and the offer starts today and finishes at 12.00 midday BST on Tuesday 18th April.

To qualify for FREE postage the delivery address must be within the United Kingdom mainland and Northern Ireland and is limited to total model orders of £95.00 or more on a single order.

Offer applies to IN STOCK models only and DOES NOT apply to pre-order models. If orders are received with a mix of IN STOCK and PRE-ORDER models then the FREE postage offer will not apply.

This offer DOES apply to all model sections and  includes ALL SALE ITEMS.

Please order in the normal way and your FREE postage will be applied to your order when your models are dispatched and your credit card or PayPal payments will be adjusted for FREE postage at this time.

This offer is subject to availability of stock.



That is all for this week.

Thank you for taking time to read this week’s Newsletter. Have a great Easter Weekend Break !
