The Dassault Rafale is a French twin-engine, canard delta wing, multirole fighter aircraft designed and built by Dassault Aviation. Equipped with a wide range of weapons, the Rafale is intended to perform air supremacy, interdiction, aerial reconnaissance, ground support, in-depth strike, anti-ship strike and nuclear deterrence missions. The Rafale is referred to as an “omnirole” aircraft by Dassault.

In the late 1970s, the French Air Force and French Navy were seeking to replace and consolidate their current fleets of aircraft. In order to reduce development costs and boost prospective sales, France entered into an arrangement with the UK, Germany, Italy and Spain to produce an agile multi-purpose “Future European Fighter Aircraft” (what would become the Eurofighter Typhoon). Subsequent disagreements over workshare and differing requirements led to France’s pursuit of its own development programme. Dassault built a technology demonstrator which first flew in July 1986 as part of an eight-year flight-test programme, paving the way for the go-ahead of the project. The Rafale is distinct from other European fighters of its era in that it is almost entirely built by one country, involving most of France’s major defence contractors, such as Dassault, Thales and Safran.

Many of the aircraft’s avionics and features, such as direct voice input, the RBE2 AA active electronically scanned array (AESA) radar and the optronique secteur frontal infra-red search and track (IRST) sensor, were domestically developed and produced for the Rafale programme. Originally scheduled to enter service in 1996, the Rafale suffered significant delays due to post-Cold War budget cuts and changes in priorities. The aircraft is available in three main variants: Rafale C single-seat land-based version, Rafale B twin-seat land-based version, and Rafale M single-seat carrier-based version.

Introduced in 2001, the Rafale is being produced for both the French Air Force and for carrier-based operations in the French Navy. The Rafale has been marketed for export to several countries, and was selected for purchase by the Indian Air Force, the Egyptian Air Force, the Qatar Air Force and the Hellenic Air Force. The Rafale has been used in combat over Afghanistan, Libya, Mali, Iraq and Syria.

Development

Origins

In the mid-1970s, both the French Air Force (Armée de l’Air) and Navy (Marine Nationale) had requirements for a new generation of fighters to replace those in or about to enter service.Because their requirements were similar, and to reduce cost, both departments issued a common request for proposal. In 1975, the French Ministry of Aviation initiated studies for a new aircraft to complement the upcoming and smaller Dassault Mirage 2000, with each aircraft optimised for differing roles.

In 1979, the French company Dassault joined the MBB/BAe “European Collaborative Fighter” (ECA) project which was renamed the “European Combat Aircraft”. The French company contributed the aerodynamic layout of a prospective twin-engine, single-seat fighter; however, the project collapsed in 1981 due to differing operational requirements of each partner country. In 1983, the “Future European Fighter Aircraft” (FEFA) programme was initiated, bringing together Italy, Spain, West Germany, France and the United Kingdom to jointly develop a new fighter, although the latter three had their own aircraft developments.

A number of factors led to the eventual split between France and the other four countries. Around 1984 France reiterated its requirement for a carrier-capable version and demanded a leading role. It also insisted on a swing-role fighter that was lighter than the design favoured by the other four nations. West Germany, the UK and Italy opted out and established a new European Fighter Aircraft (EFA) programme. In Turin on 2nd August 1985, West Germany, the UK and Italy agreed to go ahead with the EFA, and confirmed that France, along with Spain, had chosen not to proceed as a member of the project. Despite pressure from France, Spain rejoined the Eurofighter project in early September 1985. The four-nation project eventually resulted in the development of the Eurofighter Typhoon.

Design phase and prototype

In France, the government proceeded with its own programme. The French Ministry of Defence required an aircraft capable of air-to-air and air-to-ground, all-day and adverse weather operations. Unlike other contemporary European fighter projects that required some level of international collaboration and cost-sharing, France was the sole developer of the Rafale’s airframe, avionics, propulsion system and armament, and as such the aircraft was to replace a multitude of aircraft in the French Armed Forces. The Rafale would perform roles previously filled by an assortment of specialised platforms, including the Jaguar, Mirage F1C/CR/CT, Mirage 2000C/-5/N in the French Air Force, and the F-8P Crusader, Étendard IVP/M and Super Étendard in French Naval Aviation.

During October–December 1978, prior to France’s joining of the ECA, Dassault received contracts for the development of project ACT 92 (Avion de Combat Tactique, meaning “Tactical Combat Airplane”). The following year, the National Office for Aviation Studies and Research began studying the possible configurations of the new fighter under the codename Rapace (meaning “Bird of Prey”). By March 1980, the number of configurations had been narrowed down to four, two of which had a combination of canards, delta wings and a single vertical tail-fin. In October 1982, the French Ministry of Defence announced that Dassault would build a technology demonstrator named Avion de Combat expérimental (Experimental Combat Airplane, ACX). France wanted to collaborate with West Germany and the UK on the project, but was prepared to build the ACX by itself. In 1984, the government decided to proceed with a combat variant of the ACX due to the conflicting technical criteria of the respective FEFA participant nations.

The resultant Rafale A technology demonstrator was a large-delta winged fighter, with all-moving canards, embodying fly-by-wire (FBW) flight control system. Construction of the demonstrator commenced in March 1984, even before a contract was signed with the DGA, France’s defence procurement agency. The technology demonstrator was rolled out in December 1985 in Saint-Cloud, and took its maiden flight on 4th July 1986 from Istres-Le Tubé Air Base in southern France. During the one-hour flight, the project’s chief test pilot Guy Mitaux-Maurouard took the aircraft to an altitude of 11,000 metres (36,000 ft) and a speed of Mach 1.3. The 9.5-tonne (21,000 lb) demonstrator stopped in 300 metres (980 ft) upon landing.



Throughout the flight test programme, the Rafale A performed numerous day and night take-offs and landings aboard the carriers Clemenceau and Foch to investigate the pilot’s field of view during carrier operations. It reached a speed of Mach 2 (2,450 km/h; 1,520 mph; 1,320 kn) and a height of 13,000 metres (42,000 ft). The demonstrator was initially powered by General Electric F404-GE-400 afterburning turbofans from the F/A-18 Hornet, instead of the Snecma M88, to reduce the risk that often comes with a first flight, and since the M88 was not considered sufficiently mature for the initial trials programme. It was not until May 1990 when the M88 replaced the port F404 in the demonstrator to enable the aircraft to reach Mach 1.4 and demonstrate supercruise, or sustained supersonic flight without use of afterburners. After 865 flights with four pilots, Rafale A was retired in January 1994.

At the time of the Rafale A’s maiden flight, France entered unsuccessful talks with Belgium, Denmark, the Netherlands and Norway about a possible collaboration on the Rafale as a multinational project; at the time, Belgium was reportedly interested in the Rafale B. In June 1987, Prime Minister Jacques Chirac declared that the country would proceed with the US$30 billion project. Subsequently, on 21st April 1988, the French government awarded Dassault a contract for four Rafale prototypes: one Rafale C, two Rafale Ms and one Rafale B. The first out of an expected 330 Rafales was scheduled to enter service in 1996. However, the fall of the Berlin Wall, which signalled the end of the Cold War, as well as the need to reduce the national deficit, compelled the French government to drastically reduce its defence budget; the 1994 budget for the Rafale programme was cut by US$340 million. This reduced the size of the Rafale orders, which Dassault and other companies involved claimed impeded production management and led to higher costs, and delayed the entry of the aircraft into service. The French Air Force was reorganised, the Mirage 5F was completely phased out and a total of 55 Mirage F1Cs were upgraded to a tactical fighter configuration, redesignated as Mirage F1CT. The budget cuts prolonged the Rafale’s development considerably.



During the Rafale A flight test programme, the French government in 1989 looked at the F/A-18 Hornet as a potential replacement for the rapidly aging F-8 Crusader, which had been serving since the 1950s. The French Navy entered purchase of second-hand F/A-18s with Australia, Canada and the US, after the decision was made not to upgrade the Crusaders. The US Navy agreed to supply two F/A-18s to the French Navy for “interoperability testing” aboard the French aircraft carrier Foch. The French government did not proceed with a purchase of the twin-engine fighter.

Testing

To meet the various roles expected of the new aircraft, the Air Force required two variants: the single-seat “Rafale C” (chasseur, meaning “fighter” or literally “hunter”) and the “Rafale B” (biplace, or two-seater). The prototype of the C model (designated C01) completed its first flight on 19th May 1991, signalling the start of a test programme which primarily aimed to test the M88-2 engines, man-machine interface and weapons, and expand the flight envelope. Due to budget constraints, the second single-seat prototype was never built.

The C01 differed significantly from the Rafale A. Although superficially identical to the technology demonstrator, it was smaller and more stealthy due to the gold-coated canopy, a re-design of the fuselage-fin joint, and the addition of radar-absorbent materials (RAM). This aircraft also saw extensive application of composite and other materials, which both reduced the radar cross-section (RCS) and weight. Moreover, Dassault opted to reject variable engine inlets and a dedicated air brake, which lessens maintenance loads and saves weight. The B01, the only prototype of the two-seat B variant, made its maiden flight on 30th April 1993. It was 350 kilograms (770 lb) heavier than the single-seater, but carried 400 litres (110 US gal) less fuel. The aircraft was used for weapon-systems testing. Later it was tasked with validating weapon separation and, specifically, the carriage of heavy loads. The aircraft’s typical loadout consisted of two 2,000-litre (530 US gal) external tanks, two Apache/Scalp cruise missiles, in addition to four air-to-air missiles.



The Navy, meanwhile, sought a carrier-based aircraft to supersede its fleet of ageing Étendard IV Ms & Ps, F-8P Crusaders and Super Étendard Modernisés. While the Navy initially modernised the Crusaders, in the long-term, the requirement was met with the navalised Rafale M. The M01, the naval prototype, first flew on 12th December 1991, followed by the second on 8th November 1993. Since France had no land-based catapult test facility, catapult trials were initially carried out between during July–August 1992 and early the following year, at NAS Lakehurst in New Jersey. The aircraft then carried out trials aboard the carrier Foch in April 1993. Flown by Dassault’s chief test pilot, Yves Kerhervé, M02 made its maiden flight in November that year, while the first prototype completed the third round of testing at Lakehurst in November and December 1993.

Production and upgrades

Initially, the Rafale B was to be just a trainer, but the Gulf War showed that a second crew member was invaluable on strike and reconnaissance missions. Therefore, in 1991 the Air Force switched its preferences towards the two-seater, announcing that the variant would constitute 60 percent of the Rafale fleet. The service originally envisaged taking delivery of 250 Rafales, but this was initially revised downwards to 234 aircraft, made up of 95 “A” and 139 “B” models”, and later to 212 aircraft. The Navy, meanwhile, had 60 Rafales on order, down from 86 due to budget cuts. Of the 60, 25 would be M single-seaters and 35 two-seat Ns, though the two-seater was later cancelled.

Production of the first aircraft series formally started in December 1992, but was suspended in November 1995 due to political and economic uncertainty. Production only resumed in January 1997 after the Ministry of Defence and Dassault agreed on a 48-aircraft (28 firm and 20 options) production run with delivery between 2002 and 2007. A further order of 59 F3 Rafales was announced in December 2004. In November 2009 the French government ordered an additional 60 aircraft to take the total order for the French Air Force and Navy to 180.

During the Rafale’s design phase, Dassault took advantage of Dassault Systèmes’ CATIA (Computer Aided Three-dimensional Interactive Application), a three-dimensional computer-aided design, manufacture and engineering software suite that would become standard across the industry. CATIA enabled digitisation and efficiency improvements throughout the Rafale programme, as it implemented recently developed processes such as digital mockup and product data management. It consisted of 15 GB databases of each of the Rafale’s components, assisting with various aspects of the design, manufacture and through-life support.



According to the French magazine L’Usine nouvelle, apart from several non-sensitive components sourced from the United States, the Rafale is manufactured almost entirely in France. Different elements are produced in numerous factories across the country, and final assembly takes place near Bordeaux–Mérignac Airport. For example, the flight control surfaces are fabricated in Haute-Savoie, the wings and avionics in Gironde, the centre fuselage in Val-d’Oise, and the engines in Essonne. Roughly 50 percent of the Rafale is produced by Dassault and the other half divided between two major partners, Thales and Safran, who rely on a network of 500 subcontractors. Altogether, the programme employs 7,000 workers. As of 2012, the fabrication process of each fighter took 24 months, with an annual production rate of eleven aircraft.

Deliveries of the Rafale’s naval version were a high priority to replace the Navy’s considerably aged F-8 Crusaders, and so the first production model for the French Navy undertook its first flight on 7th July 1999. Their first naval deployment was in 2002 on board Charles de Gaulle; by March 2002, the aircraft carrier was stationed in the Gulf of Oman, where its complement of Rafales undertook training operations. In December 2004, the Air Force received its first three F2 standard Rafale Bs at the Centre d’Expériences Aériennes Militaires (CEAM, i.e. the Military Air Experiment Centre) at Mont-de-Marsan, where they were tasked to undertake operational evaluation and pilot conversion training.

The total programme cost, as of FY2013, was around €45.9 billion, which translated to a unit programme cost of approximately €160.5 million. This figure takes in account improved hardware of the F3 standard, and which includes development costs over a period of 40 years, including inflation. The unit flyaway price as of 2010 was €101.1 million for the F3+ version.

In 2008, French officials were reportedly considering equipping the Rafale to launch miniaturised satellites. In 2011, upgrades under consideration included a software radio and satellite link, a new laser-targeting pod, smaller bombs and enhancements to the aircraft’s data-fusion capacity. In July 2012, fleetwide upgrades of the Rafale’s battlefield communications and interoperability capabilities commenced.

In January 2014, Defence Minister Jean-Yves Le Drian announced that €1 billion is allocated towards the development of the F3R standard. The standard will see the integration of the Meteor BVR missile, among other weapons and software updates. The standard was to be validated by 2018. The Rafale is planned to be the French Air Force’s primary combat aircraft until 2040 or later, until replacement by the Franco-German New Generation Fighter.

Future replacement

In 2018, Dassault announced the successor to the Rafale as the New Generation Fighter. This fighter aircraft under development by Dassault Aviation and Airbus Defence and Space, is to replace France’s Rafale, Germany’s Eurofighter Typhoon, and Spain’s F/A-18 Hornet in the 2035-40 timeframe.

Design

Overview

The Rafale was developed as a modern jet fighter with a very high level of agility; Dassault chose to combine a delta wing with active close-coupled canard to maximize manoeuvrability. The aircraft is capable of withstanding from −3.6g to 9g (10.5g on Rafale solo display and a maximum of 11g can be reached in case of emergency. The Rafale is an aerodynamically unstable aircraft and uses digital fly-by-wire flight controls to artificially enforce and maintain stability. The aircraft’s canards also act to reduce the minimum landing speed to 115 knots (213 km/h; 132 mph); while in flight, airspeeds as low as 15 knots (28 km/h; 17 mph) have been observed during training missions. According to simulations by Dassault, the Rafale has sufficient low speed performance to operate from STOBAR-configured aircraft carriers, and can take off using a ski-jump with no modifications.

The Rafale M features a greatly reinforced undercarriage to cope with the additional stresses of naval landings, an arrestor hook, and “jump strut” nosewheel, which only extends during short takeoffs, including catapult launches. It also features a built-in ladder, carrier-based microwave landing system, and the new fin-tip Telemir system for syncing the inertial navigation system to external equipment. Altogether, the naval modifications of the Rafale M increase its weight by 500 kilograms (1,100 lb) compared to other variants. The Rafale M retains about 95 percent commonality with Air Force variants including, although unusual for carrier-based aircraft, being unable to fold its multi-spar wings to reduce storage space. The size constraints were offset by the introduction of Charles de Gaulle, France’s first nuclear-powered carrier, which was considerably larger than previous carriers, Foch and Clemenceau.

Radar signature

Although not a full-aspect stealth aircraft, the cost of which was viewed as unacceptably excessive, the Rafale was designed for a reduced radar cross-section (RCS) and infrared signature . In order to reduce the RCS, changes from the initial technology demonstrator include a reduction in the size of the tail-fin, fuselage reshaping, repositioning of the engine air inlets underneath the aircraft’s wing, and the extensive use of composite materials and serrated patterns for the construction of the trailing edges of the wings and canards. Seventy percent of the Rafale’s surface area is composite. Many of the features designed to reduce the Rafale’s visibility to threats remain classified.

Cockpit

The Rafale’s glass cockpit was designed around the principle of data fusion—a central computer selects and prioritises information to display to pilots for simpler command and control. The primary flight controls are arranged in a hands-on-throttle-and-stick (HOTAS)-compatible configuration, with a right-handed side-stick controller and a left-handed throttle. The seat is inclined rearwards at an angle of 29° to improve g-force tolerance during manoeuvring and to provide a less restricted external pilot view. An intelligent flight suit worn by the pilot is automatically controlled by the aircraft to counteract in response to calculated g-forces.



Great emphasis has been placed on pilot workload minimisation across all operations. Among the features of the highly digitised cockpit is an integrated direct voice input (DVI) system, allowing a range of aircraft functions to be controlled by spoken voice commands, simplifying the pilot’s access to many of the controls. Developed by Crouzet, the DVI is capable of managing radio communications and countermeasures systems, the selection of armament and radar modes, and controlling navigational functions. For safety reasons, DVI is deliberately not employed for safety-critical elements of the aircraft’s operation, such as the final release of weapons.

For displaying information gathered from a range of sensors across the aircraft, the cockpit features a wide-angle holographic head-up display (HUD) system, two head-down flat-panel colour multi-function displays (MFDs) as well as a central collimated display. These displays have been strategically placed to minimise pilot distraction from the external environment. Some displays feature a touch interface for ease of human–computer interaction (HCI). A head-mounted display (HMD) remains to be integrated to take full advantage of its MICA missiles. The cockpit is fully compatible with night vision goggles (NVG).

In the area of life support, the Rafale is fitted with a Martin-Baker Mark 16F “zero-zero” ejection seat, capable of operation at zero speed and zero altitude. An on-board oxygen generating system, developed by Air Liquide, eliminates the need to carry bulky oxygen canisters.The Rafale’s flight computer has been programmed to counteract pilot disorientation and to employ automatic recovery of the aircraft during negative flight conditions. The auto-pilot and autothrottle controls are also integrated, and are activated by switches located on the primary flight controls.

Avionics and equipment

The Rafale core avionics systems employ an integrated modular avionics (IMA), called MDPU (modular data processing unit). This architecture hosts all the main aircraft functions such as the flight management system, data fusion, fire control, and the man-machine interface. The total value of the radar, electronic communications and self-protection equipment is about 30 percent of the cost of the entire aircraft. The IMA has since been installed upon several upgraded Mirage 2000 fighters, and incorporated into the civilian airliner, the Airbus A380. According to Dassault, the IMA greatly assists combat operations via data fusion, the continuous integration and analysis of the various sensor systems throughout the aircraft, and has been designed for the incorporation of new systems and avionics throughout the Rafale’s service life.



The Rafale features an integrated defensive-aids system named SPECTRA, which protects the aircraft against airborne and ground threats, developed as a joint venture between Thales and MBDA. Various methods of detection, jamming, and decoying have been incorporated, and the system has been designed to be highly reprogrammable for addressing new threats and incorporating additional sub-systems in the future. Operations over Libya were greatly assisted by SPECTRA, allowing Rafales to perform missions independently from the support of dedicated Suppression of Enemy Air Defences (SEAD) platforms.

The Rafale’s ground attack capability is heavily reliant upon sensory targeting pods, such as Thales Optronics’s Reco New Generation/Areos reconnaissance pod and Damocles electro-optical/laser designation pod. Together, these systems provide targeting information, enable tactical reconnaissance missions, and are integrated with the Rafale’s IMA architecture to provide analysed data feeds to friendly units and ground stations, as well as to the pilot. Damocles provides targeting information to the various armaments carried by the Rafale and is directly integrated with the Rafale’s VHF/UHF secure radio to communicate target information with other aircraft. It also performs other key functions such as aerial optical surveillance and is integrated with the navigation system as a FLIR.

The Damocles designation pod was described as “lacking competitiveness” when compared to rivals such as the Sniper and LITENING pods; so work began on an upgraded pod, designated Damocles XF, with additional sensors and added ability to transmit live video feeds. A new Thales targeting pod, the Talios, was officially unveiled at the 2014 Farnborough Air Show and is expected to be integrated on the Rafale by 2018. Thales’ Areos reconnaissance pod is an all-weather, night-and-day-capable reconnaissance system employed on the Rafale, and provides a significantly improved reconnaissance capability over preceding platforms. Areos has been designed to perform reconnaissance under various mission profiles and condition, using multiple day/night sensors and its own independent communications datalinks.

Radar and sensors

The Rafale was first outfitted with the Thales RBE2 passive electronically scanned multi-mode radar. Thales claims to have achieved increased levels of situational awareness as compared to earlier aircraft through the earlier detection and tracking of multiple air targets for close combat and long-range interception, as well as real-time generation of three-dimensional maps for terrain-following and the real-time generation of high resolution ground maps for navigation and targeting. In early 1994, it was reported that technical difficulties with the radar had delayed the Rafale’s development by six months. In September 2006, Flight International reported the Rafale’s unit cost had significantly increased due to additional development work to improve the RBE2’s detection range.



The RBE2 AA active electronically scanned array (AESA) radar now replaces the previous passively scanned RBE2. The RBE2 AA is reported to deliver a greater detection range of 200 km, improved reliability and reduced maintenance demands over the preceding radar. A Rafale demonstrator began test flights in 2002 and has totaled 100 flight hours as of December 2011. By December 2009, production of the pre-series RBE2 AA radars was underway. In early October 2012, the first Rafale equipped with an RBE2 AA radar arrived at Mont-de-Marsan Air Base for operational service (the development was described by Thales and Dassault as “on time and on budget”). By early 2014, the first Air Force front-line squadron were supposed to receive Rafales equipped with the AESA radar, following the French Navy which was slated to receive AESA-equipped Rafales starting in 2013.

To enable the Rafale to perform in the air supremacy role, it includes several passive sensor systems. The front-sector electro-optical system or Optronique Secteur Frontal (OSF), developed by Thales, is completely integrated within the aircraft and can operate both in the visible and infrared wavelengths. The OSF enables the deployment of infrared missiles such as the MICA at beyond visual range distances; it can also be used for detecting and identifying airborne targets, as well as those on the ground and at sea. Dassault describes the OSF as being immune to jamming and capable of providing covert long-range surveillance. In 2012, an improved version of the OSF was deployed operationally.

Armament and standards

Initial deliveries of the Rafale M were to the F1 (“France 1”) standard, these had been equipped for the air-to-air interceptor combat duties, but lacked any armament for air-to-ground operations. The F1 standard became operational in 2004. Later deliveries were to the “F2” standard, which added the capability for conducting air-to-ground operations; the first F2 standard Rafale M was delivered to the French Navy in May 2006. Starting in 2008 onwards, Rafale deliveries have been to the nuclear-capable F3 standard that also added reconnaissance with the Areos reconnaissance pod, and it has been reported that all aircraft built to the earlier F1 and F2 standards are to be upgraded to become F3s.



F3 standard Rafales are capable of undertaking many different mission roles with a range of equipment, namely air defence/superiority missions with Mica IR and EM air-to-air missiles, and precision ground attacks typically using SCALP EG cruise missiles and AASM Hammer air-to-surface missiles. In addition, anti-shipping missions could be carried out using the AM39 Exocet sea skimming missile, while reconnaissance flights would use a combination of onboard and external pod-based sensor equipment. Furthermore, the aircraft could conduct nuclear strikes when armed with ASMP-A missiles. In 2010, France ordered 200 MBDA Meteor beyond-visual-range missiles which will greatly increase the distance at which the Rafale can engage aerial targets when the missile enters service.

The F4 standard program was launched on 20 March 2017 by the French ministry of defence.

For compatibility with armaments of varying types and origins, the Rafale’s onboard store management system is compliant with MIL-STD-1760, an electrical interface between an aircraft and its carriage stores, thereby simplifying the incorporation of many of their existing weapons and equipment. The Rafale is typically outfitted with 14 hardpoints (only 13 on Rafale M version), five of which are suitable for heavy armament or equipment such as auxiliary fuel tanks, and has a maximum external load capacity of nine tons. In addition to the above equipment, the Rafale carries the 30 mm GIAT 30 revolver cannon and can be outfitted with a range of laser-guided bombs and ground-attack munitions. According to Dassault, the Rafale’s onboard mission systems enable ground attack and air-to-air combat operations to be carried out within a single sortie, with many functions capable of simultaneous execution in conjunction with another, increasing survivability and versatility.

Engines

The Rafale is fitted with two Snecma M88 engines, each capable of providing up to 50 kilonewtons (11,000 pounds-force) of dry thrust and 75 kN (17,000 lbf) with afterburners. The engines feature several advances, including a non-polluting combustion chamber, single-crystal turbine blades, powder metallurgy disks, and technology to reduce radar and infrared signatures. The M88 enables the Rafale to supercruise while carrying four missiles and one drop tank.



Qualification of the M88-2 engine ended in 1996 and the first production engine was delivered by the end of the year. Due to delays in engine production, the Rafale A demonstrator was initially powered by the General Electric F404 engine. In May 2010, a Rafale flew for the first time with the M88-4E engine, an upgraded variant with greater thrust and lower maintenance requirements than the preceding M88-2. The engine is of a modular design for ease of construction and maintenance and to enable older engines to be retrofitted with improved subsections upon availability, such as existing M88-2s being upgraded to M88-4E standard. There has been interest in more powerful M88 engines by potential export customers, such as the United Arab Emirates (UAE). As of 2007, a thrust vectoring variant of the engine designated as M88-3D was also under development.

Operational history

France

French Naval Aviation

In December 2000, the French Naval Aviation (Aéronavale), the air arm of the French Navy, received its first two Rafale M fighters. On 18 May the following year, the squadron Flottille 12F, which had previously operated the F-8 Crusader, became the first squadron to operate the Rafale after it was officially re-activated prior to the delivery of the sixth Rafale. Flottille 12F immediately participated in Trident d’Or aboard the aircraft carrier Charles de Gaulle with warships from ten other nations. During the maritime exercise, the Navy tested the Rafale’s avionics during simulated interceptions with various foreign aircraft, in addition to carrier take-offs and landings. After almost four years of training, the Rafale M was declared operational with the French Navy in June 2004.

The Rafale M is fully compatible with US Navy aircraft carriers and some French Navy pilots have qualified to fly the aircraft from US Navy flight decks. On 4th June 2010, during an exercise on USS Harry S. Truman, a French Rafale became the first jet fighter of a foreign navy to have its engine replaced on board an American aircraft carrier.



In 2002, the Rafales were first deployed to a combat zone; seven Rafale Ms embarked aboard Charles de Gaulle of the French Navy during “Mission Héraclès”, the French participation in “Operation Enduring Freedom”. They flew from the aircraft carrier over Afghanistan, but the F1 standard precluded air-to-ground missions and the Rafale did not see any action. In June 2002, while Charles de Gaulle was in the Arabian Sea, Rafales conducted several patrols near the India-Pakistan border.

In 2016, Rafales operating from Charles de Gaulle struck targets associated with the Islamic State of Iraq and the Levant.

In December 2015, American and French military officials reportedly discussed the possibility of French naval Rafale Ms flying combat missions from a US Navy Nimitz-class aircraft carrier as soon as January 2017. This would enable continued French Navy operations against ISIL while Charles de Gaulle undergoes its year-and-a-half-long major refit, scheduled to begin in early 2017. Although Rafales have launched and landed on U.S. carriers to demonstrate interoperability, it would be the first time they would fly combat missions from one. As many as 18 Rafale Ms could be deployed on a carrier, although some room would have to be made for French Navy support crews familiar with maintaining the Rafale, as well as for spare parts and munitions. Operation Chesapeake, a test of this interoperability, was conducted in May 2018, when 12 Rafales of Flottilles 11F, 12F, and 17F, along with nearly 350 support personnel embarked aboard USS George H.W. Bush for two weeks of carrier qualifications and exercises after conducting a month of shore based training at Naval Air Station Oceana.

French Air and Space Force

Rafales were delivered to the French Air Force several years after the naval variant, initially with the Centre d’Expériences Aériennes Militaires (French Air Force Evaluation Centre) at Mont-de-Marsan Air Base in the trials and training role. By this time, it was expected that Escadron de Chasse (Fighter Squadron) 1/7 at Saint-Dizier would receive a nucleus of 8–10 Rafale F2s during the summer of 2006, in preparation for full operational service (with robust air-to-air and stand off air-to-ground precision attack capabilities) starting from mid-2007 (when EC 1/7 would have about 20 aircraft, 15 two-seaters and five single-seaters).



In 2007, after a “crash program” enhancement six Rafales were given the ability to drop laser-guided bombs, in view of engaging them in Afghanistan. Three of these aircraft belonging to the Air Force were deployed to Dushanbe in Tajikistan, while the three others were Rafale Marine of the Navy on board Charles De Gaulle. The first mission occurred on 12th March 2007, and the first GBU-12 was launched on 28th March in support of embattled Dutch troops in Southern Afghanistan, marking the operational début of the Rafale. Between January 2009 and December 2011, a minimum of three Rafales were stationed at Kandahar International Airport to conduct combat operations in support of NATO ground forces.

On 19th March 2011, French Rafales began conducting reconnaissance and strike missions over Libya in Opération Harmattan, in support of United Nations Security Council Resolution 1973; initial targets were artillery pieces laying siege around the rebel city of Benghazi. The Rafale could operate in Libya without the support of SEAD aircraft, using the onboard SPECTRA self-defence system instead. On 24th March 2011, it was reported that a Rafale had destroyed a Libyan Air Force G-2/Galeb light attack/trainer aircraft on the runway.

During the conflict, Rafales typically conducted six-hour sorties over Libyan airspace, carrying an armament of four MICA air-to-air missiles, four or six AASM “Hammer” bombs, a Thales Damoclès targeting pod and two drop tanks; these patrols required multiple aerial refuelling operations per sortie from coalition tanker aircraft. The AASM precision-guidance weapon system, using bombs weighing between 125 kilograms (280 lb) and 1,000 kg (2,200 lb), allowed the Rafale to conduct high-altitude bombing missions. Reportedly, Rafale crews preferred to use GPS-guided munitions due to greater reliability and range. Storm Shadow SCALP weapons were deployed on only one or two sorties, including one against a Libyan airbase at Al-Jufra. In 2011, aviation journalist Craig Hoyle speculated that the Rafale’s performance in Libya is likely to be pivotal to its export future, reporting that the Rafale had maintained a high operational rate throughout the deployment. Hoyle also noted that the Libyan combat experience had caused several urgent operational requirements to present themselves, such as the need for a lighter ground-attack munition and to modify the AASM weapon to be more effective in the close air support role.



In January 2013, the Rafale took part in “Opération Serval”, the French military intervention in support to the government of Mali against the Movement for Oneness and Jihad in West Africa. The first mission was carried out on 13th January, when four Rafales took off from an airbase in France to strike rebel training camps, depots and facilities in the city of Gao in eastern Mali. Subsequent airstrikes in the following days by Rafale and Mirage fighters were reportedly instrumental in the withdrawal of Islamist militant forces from Timbuktu and Douentza. Both Rafale and Mirage 2000D aircraft used in the conflict have been based outside of North Africa, making use of aerial refuelling tanker aircraft to fly long range sorties across Algerian airspace and into Mali.

In August 2013, it was proposed that France may halve the number of Rafales to be delivered over the next six years for a total of 26 aircraft to be delivered during this period; foreign export procurements have been viewed as critical to maintain production under this proposal. While production would be slowed, France would still receive the same number of Rafales overall.

In September 2014, Rafales began flying reconnaissance missions over Iraq as part of Opération Chammal, France’s contribution to the international effort to combat Islamic State (IS) militants. Six (later nine) Rafales were initially tasked with identifying IS positions in support of US airstrikes, flying from Al Dhafra Air Base, UAE. On 18th September, Rafales joined American operations in conducting attacks, launching four strikes near the Northern Iraqi town of Zummar that destroyed a logistics depot and killed dozens of IS fighters.



In April 2018, during the Syrian Civil War, five Rafale B fighters from the Escadron de Chasse 1/4 Gascogne participated in the 2018 missile strikes against Syria. Each jet was loaded with two SCALP EG missiles.

Egypt

In November 2014, Egypt was reportedly in negotiations with France to purchase 24 to 36 Rafales, subject to a financing agreement. By February 2015, the two countries were negotiating a loan from France’s export credit agency to reach an export agreement for up to 24 Rafale fighters. Egypt hoped to complete deal quickly to have aircraft on display at the inauguration of the Suez Canal expansion in August 2015.

On 16th February 2015, Egypt became the Rafale’s first international customer when it officially ordered 24 Rafales, as part of a larger deal, including a FREMM multipurpose frigate and missiles, worth US$5.9 billion (€5.2 billion). The order comprised 8 single-seat models and 16 two-seaters. In July 2015, a ceremony marking Egypt’s acceptance of its first three Rafales, was held at Dassault’s flight test center in Istres. In January 2016, Egypt received three more Rafales for a total of six fighters. All six aircraft are two-seat models (Rafale DM) diverted from deliveries to the French Air Force. Egypt received the third batch of three Rafales flown by Egyptian pilots from France in April 2017; this was included the first single-seat model (Rafale EM) to be delivered to the Egyptian Air Force. Egypt took delivery of the fourth batch of two Rafale EMs in July 2017. The fifth batch, comprising the last 3 Rafale EMs, was delivered in November 2017, increasing the number in service to 14 Rafales.

In June 2016, Egypt started negotiations with Dassault to acquire 12 additional Rafales, intending to exercise an option of the first contract. An Egyptian delegation visited France in November 2017 for negotiations.

Qatar

Starting in 2011, the Qatar Emiri Air Force evaluated the Rafale alongside the Boeing F/A-18E/F Super Hornet, the Boeing F-15E, the Eurofighter Typhoon, and the Lockheed Martin F-35 Lightning II to replace its Dassault Mirage 2000-5 fleet. In June 2014, Dassault claimed it was close to signing a contract with Qatar for 72 Rafales. On 30th April 2015, Sheikh Tamim bin Hamad Al Thani announced to French President François Hollande that Qatar would order 24 Rafale with an option to buy 12 more aircraft. On 4th May, a €6.3 billion ($7.02 billion) contract for 24 Rafales was finalised; additionally, the contract included the provision of long-range cruise missiles and Meteor missiles as well as the training of 36 Qatari pilots and 100 technicians by the French military and several Qatari intelligence officers; thus, the price can be viewed as €263M for each aircraft. On 7th December 2017, the option for 12 more Rafales was exercised for €1.1 billion (or €92M each) while adding an additional option for 36 further fighters. The first Qatari Rafale was delivered in February 2019.]

India

The Rafale was one of the six aircraft competing in the Indian MRCA competition for 126 multirole fighters. Originally, the Mirage 2000 had been considered for the competition, but Dassault withdrew it in favour of the Rafale. In February 2011, French Rafales flew demonstrations in India, including air-to-air combat against Su-30MKIs. In April 2011, the Indian Air Force (IAF) shortlisted the Rafale and Eurofighter Typhoon for the US$10.4 billion contract. On 31st January 2012, the IAF announced the Rafale as the preferred bidder. It was proposed that 18 Rafales would be supplied to the IAF by 2015 in fly-away condition, while the remaining 108 would be manufactured by Hindustan Aeronautics Limited (HAL) in India under transfer of technology agreements. The contract for 126 Rafales, services, and parts may have been worth up to US$20 billion.

The deal stalled due to disagreements over production in India. Dassault refused to take responsibility for the 108 HAL-manufactured Rafales, holding reservations over HAL’s ability to accommodate the aircraft’s complex manufacturing and technology transfers; instead, Dassault said it would have to negotiate two separate production contracts by both companies. The Indian Defence Ministry instead wanted Dassault to be solely responsible for the sale and delivery of all 126 aircraft. In May 2013, The Times of India reported that negotiations were “back on track”, with plans for the first 18 Rafales to be delivered in 2017. Another point of contention was a provision where Dassault was to reinvest 50 percent of the deal’s earnings into India’s defence sectors, either through purchases or technological expertise. In March 2014, the two sides reportedly agreed that the first 18 Rafales would be delivered to India in flying condition and that the remaining 108 would be 70 percent built by HAL. By December 2014, India and France reportedly expected to sign a contract by March 2015.



In April 2015, during Prime Minister Narendra Modi’s visit to Paris, India requested the rapid delivery of 36 Rafales in a fly-away condition. Indian Defence Minister Manohar Parrikar stated that these will be inducted into the IAF within two years. India officially withdrew the 126-aircraft MMRCA tender on 30th July 2015. Shortly after, India and France missed the July target to finalise the 36-aircraft agreement. The previously-agreed-upon terms in April totaled US$8 billion for 36 aircraft costing $200 million each, with an offset requirement of 30 percent of the deal’s value to be reinvested in India’s defence sector and create infrastructure for Rafale operations. India insisted on a 50 percent offset and two bases, which France said would increase costs and require separate infrastructure and two sets of maintenance, training and armament storage facilities. In January 2016, the Indian government directed the Indian Navy to be briefed by Dassault on the navalised Rafale for its aircraft carriers, promoting logistics and spares commonalities between Navy and Air Force fighters. Dassault CEO Eric Trappier stated that the Indian Navy may order up to 57 Rafales. On 23rd September 2016, Indian Defence Minister Manohar Parrikar and his French counterpart Jean-Yves Le Drian signed a €7.8 billion contract for 36 off-the-shelf Rafales with an option for 18 more at the same inflation-adjusted price. The first Rafales were expected to be delivered by 2019, and India is set to have all 36 within six years. The deal includes weapons and spares, which included Meteor BVRAAM missiles. India considered ordering 36 more Rafales around August 2017 amid tensions with China.

The Indian National Congress raised an issue over Dassault partnering with Anil Ambani’s Reliance Defence, now known as Reliance Naval and Engineering Limited(R-Naval), a private company with no aviation experience, instead of the state owned HAL. Allegedly, Dassault was not given a choice and was compelled to select Reliance Defence as its partner; Gandhi alleged that it was favouritism and corruption. Both the French government and Dassault issued a press release stating it was Dassault’s decision to choose Reliance Defence. Party spokesperson Manish Tewari asked for the agreement’s details to be made public and questioned if there was an escalation of per-aircraft cost from ₹7.15 billion to ₹16 billion. In November 2018, Congress alleged that procurement procedures were bypassed in the Rafale’s acquisition. A Public Interest Litigation (PIL) case was filed in the Supreme Court for an independent probe into the Rafale procurement. On 14th December 2018, based on all pricing details along with finalising steps, the Apex Court dismissed all petitions, stating it found no irregularities in the buy; Reliance Defence reportedly was set to receive just over 3 per cent of the ₹300 billion (equivalent to ₹320 billion or US$4.5 billion in 2019) of offsets, contrary to the impression that it was to be the biggest beneficiary of the Rafale deal.



In March 2019, Indian government officials asked for Rafales to replace ageing MiG-21s and to counter Pakistan’s newer F-16s. Ahead of the first Rafale’s formal hand over on 8th October 2019, The Indian Air Force Day 2019, the IAF accepted the aircraft at Dassault’s Bordeaux manufacturing facility in an event attended by Defence Minister Rajnath Singh and his French counterpart, Florence Parly; it had tail number “RB-001” to mark IAF chief-designate Air Chief Marshal RKS Bhadauria’s role in the 2016 deal.

In 2018, it was reported that the Rafale is competing against several other aircraft in a new procurement tender for 114 multi-role combat aircraft, which is referred as MMRCA 2.0 in the Indian media.

Delivery of 36 Rafales started on 27th July 2020 with first 5 Rafales delivered to Indian Air Force from France. A second batch of 3 Rafale jets arrived at Jamnagar airbase in Gujarat on 4th November 2020 after flying non-stop from France. A third batch of 3 aircraft arrived on January 27th, 2021. The Indian Air Force is to receive 16 fighters by April.

Greece

In August 2020 Greece announced the acquisition of eighteen Rafale multirole aircraft. Initial reports stated that ten would be the new C-built Rafale F3-R version and eight would be older F1 & F2 versions already in use with the French Air Force, that would be given to Greece free-of-charge. However, later reports stated that all 18 aircraft would be the new F3-R version and would replace an equal number of older Mirage 2000EGM aircraft.

Finally In January 2021, the official agreement with Dassault Aviation was ratified in the Hellenic Parliament, and included the purchase of six new built, and 12 used F3-R aircraft in previous service with the Armée de l’Air at total cost of €2.4 billion, including their armament and ground support. The inter-governmental agreement was signed on 25th January 2021 by the Defense Ministers of Greece and France.



---

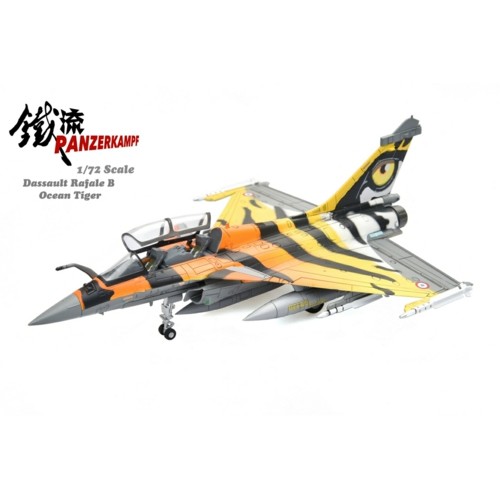

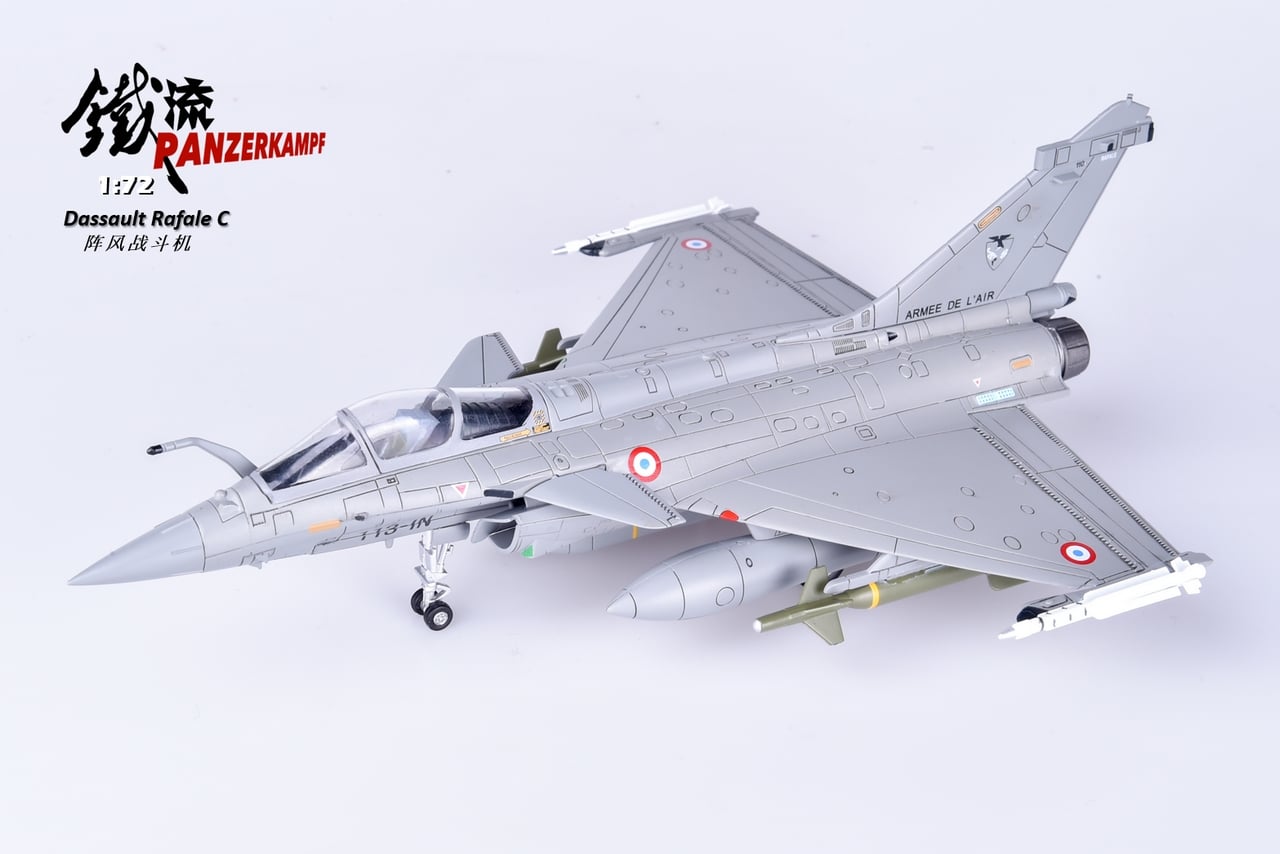

New Range ! Panzerkampf 1/72nd scale diecast Dassault Rafale… pre-order yours now !

Panzerkampf 1/72nd scale diecast Rafales have just been added to Flying Tigers range and are available to pre-order today. If you want any of these models it is always safer to pre-order as quantities are limited.

Don’t forget NO DEPOSIT necessary with Flying Tigers and if you order with your debit or credit card your payment is not taken until your model is available to dispatch.

Flying Tigers will also consolidate your orders to save on postage costs across all brands !

Please click on the images / links below to go to the model of your choice, or CLICK HERE to see them all in the Future Models section.

---

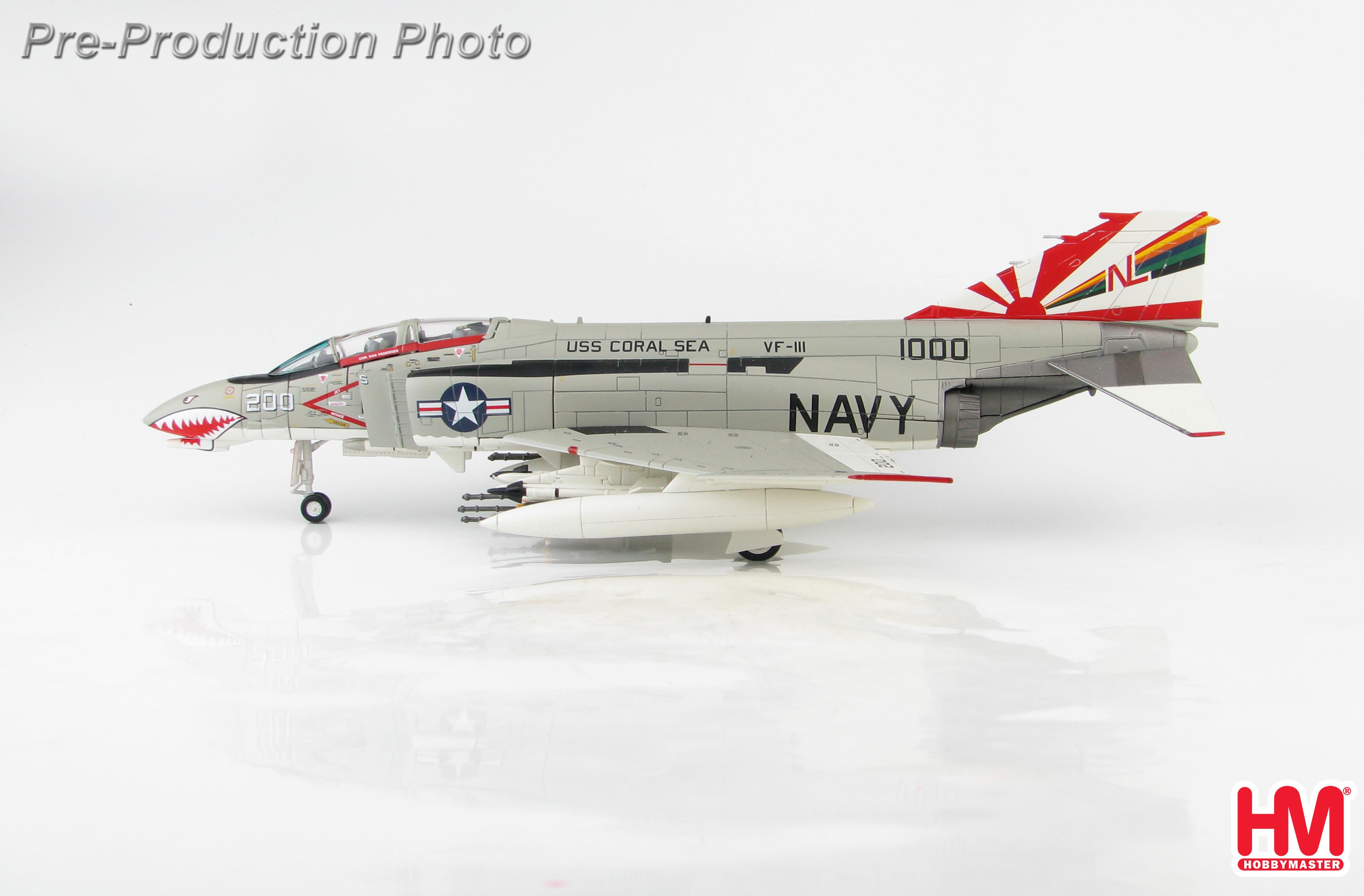

Hobbymaster arrivals at Flying Tigers !
