Sukhoi Su-24 Fencer, New Calibre Wings, Century Wings, Hobbymaster and Modelcollect Models plus Corgi Aviation Special Edition !

Ukranian Sukoi Su-24M/MR of the 7th brTA Tactical Aviation Brigade Starokostyantyniv

The Sukhoi Su-24 (NATO reporting name: Fencer) is a supersonic, all-weather attack aircraft developed in the Soviet Union. The aircraft has a variable-sweep wing, twin-engines and a side-by-side seating arrangement for its two crew. It was the first of the USSR’s aircraft to carry an integrated digital navigation/attack system. It remains in service with the Russian Air Force, Ukrainian Air Force, and various air forces to which it was exported.

One of the conditions for accepting the Sukhoi Su-7B into service in 1961 was the requirement for Sukhoi to develop an all-weather variant capable of precision air strikes. Preliminary investigations with S-28 and S-32 aircraft revealed that the basic Su-7 design was too small to contain all the avionics required for the mission. OKB-794 (later known as Leninets) was tasked with developing an advanced nav/attack system, codenamed Puma, which would be at the core of the new aircraft. That same year, the United States proposal for their new all-weather strike fighter would be the TFX. The resulting F-111 would introduce a variable-geometry wing for greatly increased payload, range, and low-level penetration capabilities.

Sukhoi Su-24 Fencer

In 1962–1963, Sukhoi initially set out to build an aircraft without the complexity of moving wings like the F-111. It designed and built a mockup of S-6, a delta wing aircraft powered by two Tumansky R-21F-300 turbojet engines and with a crew of two in a tandem arrangement. The mockup was inspected but no further work was ordered due to lack of progress on the Puma hardware.

In 1964, Sukhoi started work on S-58M. The aircraft was supposed to represent a modification of the Sukhoi Su-15 interceptor (factory designation S-58). In the meantime, revised Soviet Air Force requirements called for a low-altitude strike aircraft with STOL capability. A key feature was the ability to cruise at supersonic speeds at low altitude for extended periods of time in order to traverse enemy air defenses. To achieve this, the design included two Tumansky R-27F-300 afterburning turbojets for cruise and four Kolesov RD-36-35 turbojets for STOL performance. Side-by-side seating for the crew was implemented since the large Orion radar antennas required a large frontal cross-section. To test the six-engine scheme, the first Su-15 prototype was converted into S-58VD flying laboratory which operated in 1966–1969.

The first prototype T-6-1

The aircraft was officially sanctioned on 24th August 1965 under the internal codename T-6. The first prototype, T-6-1, was completed in May 1967 and flew on 2nd July with Vladimir Ilyushin at the controls. The initial flights were performed without the four lift jets, which were installed in October 1967. At the same time, R-27s were replaced with Lyulka AL-21Fs. STOL tests confirmed the data from S-58VD that short-field performance was achieved at the cost of significant loss of flight distance as the lift engines occupied space normally reserved for fuel, loss of under-fuselage hardpoints, and instability during transition from STOL to conventional flight. So the six-engine approach was abandoned.

By 1967, the F-111 had entered service and demonstrated the practical advantages and solutions to the technical problems of a swing-wing design. On 7th August 1968, the OKB was officially tasked with investigating a variable geometry wing for the T-6. The resulting T-6-2I first flew on 17th January 1970 with Ilyushin at the controls. The subsequent government trials lasted until 1974, dictated by the complexity of the on-board systems. The day or night and all-weather capability was achieved – for the first time in Soviet tactical attack aircraft – thanks to the Puma nav/attack system consisting of two Orion-A superimposed radar scanners for nav/attack, a dedicated Relyef terrain clearance radar to provide automatic control of flights at low and extremely low altitudes, and an Orbita-10-58 onboard computer. The crew was equipped with Zvezda K-36D ejection seats, allowing the crew members to bail out at any altitude and flight speed, including during takeoff and landing. The resulting design with a range of 3,000 kilometers (1,900 mi) and payload of 8,000 kilograms (18,000 lb) was slightly smaller and shorter ranged than the F-111.

Ten fatal accidents occurred during Su-24 development, killing thirteen Sukhoi and Soviet Air Force test pilots.

The first production aircraft flew on 31st December 1971 with V.T. Vylomov at the controls, and on 4th February 1975, T-6 was formally accepted into service as the Su-24. About 1,400 Su-24s were produced.

Su-24M in flight, 2009

Surviving Su-24M models have gone through a life-extension and updating program, with GLONASS, upgraded cockpit with multi-function displays (MFDs), HUD, digital moving-map generator, Shchel helmet-mounted sights, and provision for the latest guided weapons, including R-73 (AA-11 ‘Archer’) air-to-air missiles. It is unclear if the Su-24MR and Su-24MP will receive the cockpit and navigation upgrades. The upgraded aircraft are designated Su-24M2.

The Su-24 has a shoulder-mounted variable geometry wing outboard of a relatively small fixed wing glove, swept at 69°. The wing has four sweep settings: 16° for take-off and landing, 35° and 45° for cruise at different altitudes, and 69° for minimum aspect ratio and wing area in low-level dashes. The variable geometry wing provides excellent STOL performance, allowing a landing speed of 230 kilometers per hour (140 mph), even lower than the Sukhoi Su-17 despite substantially greater take-off weight. Its high wing loading provides a stable low-level ride and minimal gust response.

The Su-24 has two Saturn/Lyulka AL-21F-3A after-burning turbojet engines with 109.8 kN (24,700 lbf) thrust each, fed with air from two rectangular side mounted intakes with splitter plates/boundary-layer diverters.

An Su-24 in flight (2009).

In early Su-24 (“Fencer A” according to NATO) aircraft these intakes had variable ramps, allowing a maximum speed of 2,320 kilometers per hour (1,440 mph), Mach 2.18, at altitude and a ceiling of 17,500 meters (57,400 ft). Because the Su-24 is used almost exclusively for low-level missions, the actuators for the variable intakes were deleted to reduce weight and maintenance. This has no effect on low-level performance, but absolute maximum speed and altitude are cut to Mach 1.35 and 11,000 meters (36,000 ft). The earliest Su-24 had a box-like rear fuselage, which was soon changed in production to a rear exhaust shroud more closely shaped around the engines in order to reduce drag. The revised aircraft also gained three side-by-side antenna fairings in the nose, a repositioned braking chute, and a new ram-air inlet at the base of the tail fin. The revised aircraft were dubbed “Fencer-B” by NATO, but did not merit a new Soviet designation.
The Su-24’s fixed armament is a single fast-firing GSh-6-23 cannon with 500 rounds of ammunition, mounted in the fuselage underside. The gun is covered with an eyelid shutter when not in use. The armament includes various nuclear weapons. Two or four R-60 (NATO AA-8 ‘Aphid’) infrared missiles are usually carried for self-defence by the Su-24M/24MK.

Sukhoi Su-24

Initial Su-24s had basic electronic countermeasures (ECM) equipment, with many Su-24s limited to the old Sirena radar-warning receiver with no integral jamming system. Later-production Su-24s had more comprehensive radar warning, missile-launch warning, and active ECM equipment, with triangular antennas on the sides of the intakes and the tip of the vertical fin. This earned the NATO designation “Fencer-C”, although again it did not have a separate Soviet designation. Some “Fencer-C” and later Su-24M (“Fencer-D” by NATO) have large wing fence/pylons on the wing glove portion with integral chaff/flare dispensers; others have such launchers scabbed onto either side of the tail fin.

A Su-24M2 of the Russian Air Force

Substantial numbers of ex-Soviet Su-24s remain in service with Azerbaijan, Kazakhstan, Russia, and Ukraine. In 2008, roughly 415 were in service with Russian forces, split 321 with the Russian Air Force and 94 with the Russian Navy.The Russian Air Force will eventually replace the Su-24 with the Sukhoi Su-34

The Soviet Union used some Su-24s in the Soviet war in Afghanistan, with an initial round of strikes in 1984 and a second intervention at the end of the war in 1988. No Su-24 were lost.

On October 13th, 1990, Syrian Air Force jets entered Lebanese air space in order to strike General Michel Aoun’s military forces. Seven Su-24 jets were used in this operation

During Operation Desert Storm, the Iraqi Air Force evacuated 24 of its 30 Su-24MKs to Iran. Another five were destroyed on the ground, while the sole survivor remained in service after the war.

Sukhoi Su-24 Fencer Iranian Air Force

Fencers were used by the Uzbek Air Force (UzAF) against Islamist and opposition forces operating from Afghanistan (which also had a civil war of its own going on), as part of a wider air campaign in support of the embattled government of Tajikistan during the 1992–97 civil war. An Su-24M was shot down on 3rd May 1993 with an FIM-92 Stinger MANPADS fired by fundamentalists. Both Russian crew members were rescued.

In August 1999 Tajikistan protested over an alleged strike involving four UzAF Su-24s against Islamist militants in areas close to two mountain villages in the Jirgatol District that, despite not producing human casualties, killed some 100 head of livestock and set ablaze several crop fields. Tashkent denied the accusations.

In the final stages of the 1996-2001 phase of the Afghan civil war, Uzbekistan launched airstrikes against Taliban positions in support of the Northern Alliance. During a mission to attack a Taliban armoured infantry unit near Heiratan, an UzAF Su-24 was shot down on 6th June 2001, killing both crew members.

On 3rd February 1995, during operations over Chechenya, a Russian Su-24M hit the ground in bad weather killing both crew members

Su-24s were used in combat during the Second Chechen War performing bombing and reconnaissance missions. Up to four were lost, one due to hostile fire: on 4th October 1999, a Su-24 was shot down by a SAM while searching for the crash site of a downed Su-25. The pilot was killed while the navigator was taken prisoner.

A Su-24M of the Belarusian Air Force

In August 2008, a low intensity conflict in the breakaway Georgian regions of Ossetia and Abkhazia, escalated to open war between Russia and Georgia. Russian Su-24s were heavily involved in bombing strikes and reconnaissance flights over Georgia.

Russia admitted that three of its Su-25 strike aircraft and one Tu-22M3 long-range bomber were lost, Moscow Defence Brief provided a higher estimate, saying that Russian Air Force total losses during the war were one Tu-22M3 long-range bomber, one Su-24M Fencer fighter-bomber, one Su-24MR Fencer E reconnaissance plane and four Su-25 attack planes. Anton Lavrov listed one Su-25SM, two Su-25BM, two Su-24M and one Tu-22M3 lost.

Libya received five Su-24MK and one Su-24MR from the Soviet Union in 1989. Up to one Su-24MK and one Su-24MR may have been transferred to the Syrian Arab Air Force.

Su-24MK Fencer LARAF 001 1024  Libyan Air Force

At the beginning of 2011, the Libyan Air Force was ordered to attack rebel positions and opposition rallies. Available assets for the Libyan Air Force were limited to a composite force of some MiG-23 (due to be retired, according to previous plans) and Su-22 and few units of flyable MiG-21, Su-24 and Mirage F1ED fighter-bombers, supported by Soko G-2 Galeb and Aero L-39 Albatros armed trainers. The largest part of the former fleet was in disrepair or stored in not flyable condition. On 5th March 2011, at the beginning of the 2011 Libyan civil war, rebels shot down a Libyan Air Force Su-24MK during fighting around Ra’s Lanuf with a ZU-23-2 antiaircraft gun. Both crew members died. A BBC reporter was on the scene soon after the event and filmed an aircraft part at the crash site showing the emblem of the 1124th squadron, flying the Su-24MK.

Starting in November 2012, 18 months after the beginning of the Syrian Civil War and four months after the beginning of air raids by fixed-wing SAF aircraft, Su-24 medium bombers were filmed attacking rebel positions. The SAF suffered its first Su-24 loss, an upgraded MK2 version, to an Igla surface-to-air missile on 28 November 2012 near the town of Darat Izza in the Aleppo Governorate. One of the crew members, Col. Ziad Daud Ali, was injured and filmed being taken to a rebel field hospital.

The Syrian Arab Air Force was believed to have around twenty Su-24 Fencer aircraft at the beginning of the uprising. The aircraft, based at Tiyas, have only occasionally been filmed or photographed, even though they have been involved in several air strikes and operations.

Syrian Fencers have reportedly also been involved in near-encounters with NATO warplanes. The first of such incidents occurred in early September 2013, when Syrian Su-24s of the 819th Squadron (launched from Tiyas airbase) flew low over the Mediterranean and approached the 14-mile air exclusion zone surrounding the British airbase in Akrotiri, Cyprus. The jets turned back before reaching the area due to two RAF Eurofighter Typhoons being scrambled to intercept them. Turkey also sent two F-16s. The Fencers were possibly testing the air defenses of the base (and their reaction time) in preparation for a possible military strike by the U.S, the United Kingdom and France in the aftermath of the chemical weapons attack in Ghouta, Damascus allegedly committed by the Syrian government.

On September 23rd, 2014, a Syrian Su-24 was shot down by an Israeli Air Defense Command MIM-104D Patriot missile near Quneitra, after it had penetrated 800 meters (2,600 ft) into Israeli controlled airspace over the Golan Heights. The missile hit the aircraft when it already re-entered into the Syrian air space. Both crew members ejected safely and landed in Syrian territory.

The Russian air force’s long-range striking power in the region comes from the twelve Su-24M2 jets that Russia has sent to its base in Latakia, Syria.

Turkey shoot down of a Russian Sukhoi Su-24 near the border with Syria

On 24th November 2015, a Russian Su-24M was shot down by a flight of two Turkish F-16s near the Turkey/Syrian border. Both of the crew ejected before the plane crashed in Syrian territory. Russia claimed that the jet had not left Syrian airspace while Turkey claims the jet entered their airspace and was warned 10-12 times before the plane was shot down. A deputy commander in a Syrian Turkmen brigade claimed that his personnel shot and killed both crew while they were descending in their parachutes, while some Turkish officials subsequently stated that the crew was still alive. The weapon systems officer was however rescued by Russian forces, while the pilot was killed by rebels along with a Russian marine involved in a helicopter rescue attempt. Russian president Vladimir Putin warned Turkey of serious consequences. It has been reported Russian fighter jets would escort future bomber missions, and S-400 advanced anti-aircraft systems deployed in Syria in addition to a Russian anti-aircraft cruiser were sent to Syria to protect Russian aircraft. Following the incident, Russia announced that Su-24s in Syria had begun flying combat missions while armed with air-to-air missiles.

Ukranian Sukoi Su-24M/MR of the 7th brTA Tactical Aviation Brigade Starokostyantyniv

On 2nd July 2014, one Ukrainian Air Force Su-24 was damaged by MANPADS fired by pro-Russian forces. One of the engines was damaged, but the crew managed to return to base and land. During landing a new fire started but it was extinguished by the ground crew.

Initially identified as a Su-25, on 20th August 2014 a Ukrainian Su-24M was shot down by pro-Russian forces in the Lugansk region and confirmed by Ukrainian authorities who reported that the crew members ejected safely and were recovered. On 21st August 2014, the downed plane was identified as a Su-24M.

In late May 2015, a pair of Russian Su-24s made a low pass over the US Navy’s Ross in the Black Sea.In April 2016, several Russian Su-24s flew within 30 meters of another American ship, the Donald Cook in the Baltic Sea. The incidents occurred over two days, with the planes making passes by the Donald Cook, a destroyer, while it was in international waters.

Russian SU-24 Fencers allegedly force US destroyer away from territorial waters in Black Sea



Su-24 variants

Su-24
The first production version, the armaments include Kh-23 and Kh-28 type air-to-ground guided missiles, together with R-55 type air-to-air guided missiles. Manufactured 1971–1983.

Sukhoi Su-24 Fencer

Su-24M (‘Fencer-D’)
Work on upgrading the Su-24 was started in 1971, and included the addition of inflight refueling and expansion of attack capabilities with even more payload options. T-6M-8 prototype first flew on 29th June 1977, and the first production Su-24M flew on 20th June 1979. The aircraft was accepted into service in 1983. Su-24M has a 0.76 m (30 in) longer fuselage section forward of the cockpit, adding a retractable refueling probe, and a reshaped, shorter radome for the attack radar. It can be identified by the single nose probe in place of the three-part probe of earlier aircraft. A new PNS-24M inertial navigation system and digital computer were also added. A Kaira-24 laser designator/TV-optical quantum system (similar to the American Pave Tack) was fitted in a bulge in the port side of the lower fuselage, as well as Tekon track and search system (in pod), for compatibility with guided weapons, including 500 and 1,500kg laser-guided bombs and TV-guided bombs, and laser/TV-guided missiles Kh-25 and Kh-29L/T, anti-radar missiles Kh-58 and Kh-14 (AS-12 ‘Kegler’) and Kh-59 (AS-13 ‘Kingbolt’)/Kh-59M TV-target seeker guided missiles.The new systems led to a reduction in internal fuel amounting to 85 l (22.4 US gal). Su-24M was manufactured in 1981–1993.

Sukhoi Su-24

Su-24M2 (‘Fencer-D’)
Next modernization of Su-24M introduced in 2000 with the “Sukhoi” program and in 1999 with the “Gefest” program. The modernized planes are equipped with new equipment and systems. As a result, they get new capabilities and improved combat efficiency, including new navigation system (SVP-24), new weapons control system, new HUD (ILS-31, like in Su-27SM or KAI-24) and expanding list of usable munitions (Kh-31A/P, Kh-59MK, KAB-500S). The last batch of the Sukhoi was delivered to the Russian VVS in 2009. Modernization continues with the program “Gefest”. All frontline bombers Su-24 in the Central Military District received new sighting and navigation systems SVP-24 in 2013.

Su-24MK (‘Fencer-D’)
Export version of the Su-24M with downgraded avionics and weapons capabilities. First flight 30th May 1987 as T-6MK, 17th May 1988 as Su-24MK. Manufactured 1988–1992, sold to Algeria, Iran, Iraq, Libya, and Syria.

Sukhoi Su-24MR at Kubinka airbase

Su-24MR (‘Fencer-E’)
Dedicated tactical reconnaissance variant. First flight 25th July 1980 as T-6MR-26, 13th April 1983 as Su-24MR. Entered service in 1983. Su-24MR retains much of the Su-24M’s navigation suite, including the terrain-following radar, but deletes the Orion-A attack radar, the laser/TV system, and the cannon in favor of two panoramic camera installations, ‘Aist-M’ (‘Stork’) TV camera, RDS-BO ‘Shtik’ (‘Bayonet’) side-looking airborne radar (SLAR), and ‘Zima’ (‘Winter’) infrared reconnaissance system. Other sensors are carried in pod form. Manufactured 1983–1993.

Sukhoi Su-24 Fencer

Su-24MP (‘Fencer-F’)
Dedicated electronic signals intelligence (ELINT) variant, intended to replace the Yak-28PP ‘Brewer-E’. First flight 14 March 1980 as T-6MP-25, 7th April 1983 as Su-24MP. The Su-24MP has additional antennas for intelligence-gathering sensors and radar jamming, omitting the laser/TV fairing, but retaining the cannon and provision for up to four R-60 (AA-8) missiles for self-defense. Only 10 were built.

Ukranian Sukoi Su-24M/MR’s of the 7th brTA Tactical Aviation Brigade Starokostyantyniv




Su-24 Fencer models available from Flying Tigers.

Calibre Wings have released the long awaited model and price information on their forthcoming SU-24 Fencer models. These are now available to pre-order from Flying Tigers. As this is a completely NEW TOOLING  and demand is likely to be very high worldwide and they are sure to sell out. Please order early to avoid disappointment.

Don’t forget NO DEPOSIT necessary with Flying Tigers and if you order with your debit or credit card your payment is NOT taken until your model is available to dispatch.

Simply click on the images below and it will take you through to the model page where you will find more photos and box artwork.

Calibre Wings Su-24 Fencer pre-production model.

Calibre Wings Su-24 Fencer pre-production model box artwork.




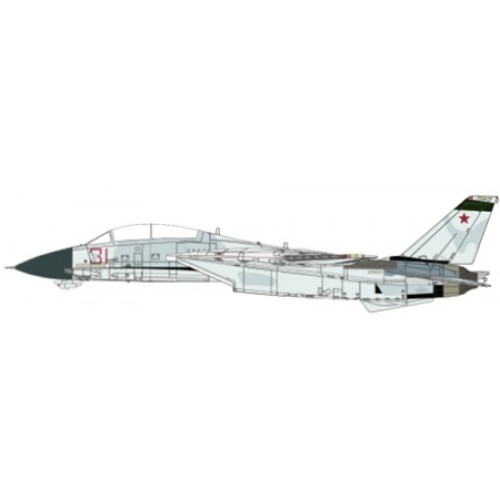

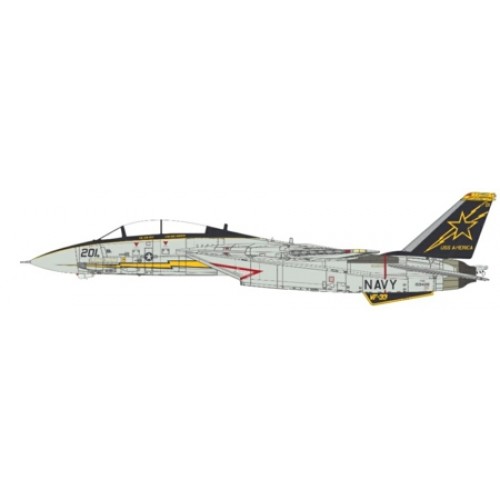

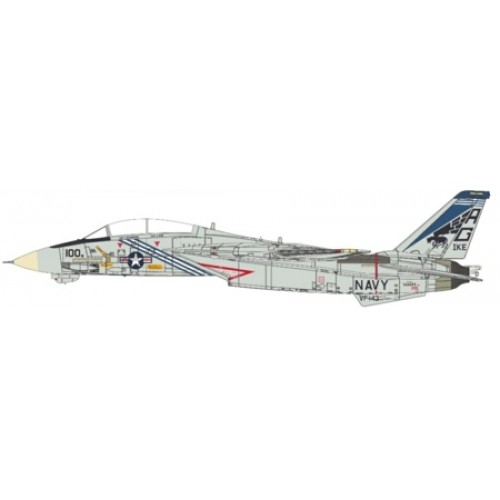

Calibre Wings F-14 Tomcat New model announcements now available to pre-order from Flying Tigers.
