The Airbus A400M Atlas is a European, four-engine turboprop military transport aircraft. It was designed by Airbus Military (now Airbus Defence and Space) as a tactical airlifter with strategic capabilities to replace older transport aircraft, such as the Transall C-160 and the Lockheed C-130 Hercules.The A400M is positioned, in terms of size, between the C-130 and the C-17; it can carry heavier loads than the C-130 and is able to use rough landing strips. Along with the transport role, the A400M can perform aerial refuelling and medical evacuation when fitted with appropriate equipment.
The A400M’s maiden flight, originally planned for 2008, took place on 11th December 2009 from Seville, Spain. Between 2009 and 2010, the A400M faced cancellation as a result of development programme delays and cost overruns; however, the customer nations chose to maintain their support of the project. A total of 174 A400M aircraft had been ordered by eight nations by July 2011. In March 2013, the A400M received European Aviation Safety Agency (EASA) certification. The first aircraft was delivered to the French Air Force in August 2013.
The project began as the Future International Military Airlifter (FIMA) group, set up in 1982 by Aérospatiale, British Aerospace (BAe), Lockheed, and Messerschmitt-Bölkow-Blohm (MBB) to develop a replacement for the C-130 Hercules and Transall C-160. Varying requirements and the complications of international politics caused slow progress. In 1989, Lockheed left the grouping and went on to develop an upgraded Hercules, the C-130J Super Hercules. With the addition of Alenia of Italy and CASA of Spain the FIMA group became Euroflag.
Since no existing turboprop engine in the western world was powerful enough to reach the projected cruise speed of Mach 0.72, a new engine design was required. Originally the SNECMA M138 turboprop (based on the M88 core) was selected, but didn’t meet the requirements. Airbus Military issued a new request for proposal (RFP) in April 2002, after which Pratt & Whitney Canada with the PW180 and Europrop International answered. In May 2003, Airbus Military selected the Europrop TP400-D6, reportedly due to political interference over the PW180 engine.
The original partner nations were France, Germany, Italy, Spain, the United Kingdom, Turkey, Belgium, and Luxembourg. These nations decided to charge the Organisation for Joint Armament Cooperation (OCCAR) with the management of the acquisition of the A400M. Following the withdrawal of Italy and revision of procurement totals the revised requirement was for 180 aircraft, with first flight in 2008 and first delivery in 2009. On 28th April 2005, South Africa joined the partnership programme with the state-owned Denel Saab Aerostructures receiving a contract for fuselage components. Another non-NATO country, Malaysia, is one of the two countries outside Europe to be involved in the A400M programme. Malaysia through CTRM is responsible for manufacturing composite aero components for the aircraft.
The A400M (second from bottom) and aircraft it is supposed to replace or complement C-160, C-130, C-130J-30 and C-17.
The A400M is positioned as an intermediate size and range between the Lockheed C-130 and the Boeing C-17, carrying cargo too large or too heavy for the C-130 while able to use rough landing strips.It has been advertised with the tagline “transport what the C130 cannot to places that the C17 can’t”.
On 9th January 2009 EADS announced that the first delivery was postponed from 2009 until at least 2012, and indicated that it wanted to renegotiate “certain technical characteristics”. EADS maintained the first deliveries would begin three years after the A400M’s first flight. On 12 January 2009, the German newspaper Financial Times Deutschland reported that the A400M was overweight by 12 tons and might not achieve a critical performance requirement, the ability to airlift 32 tons; sources told FTD at the time that the aircraft could only lift 29 tons, which is insufficient to carry a modern armored infantry fighting vehicle like the German Puma. In response to the FTD report, the chief of the German Air Force stated: “That is a disastrous development,” and could delay deliveries to the German Air Force (Luftwaffe) until 2014. The Initial Operational Capability (IOC) for the Luftwaffe is delayed at least until 2017, leading to political planning of potential alternatives such as a higher integration of European airlift capabilities.
On 29th March 2009, Airbus CEO Thomas Enders told Der Spiegel magazine that the programme might need to be abandoned without changes. The OCCAR reminded the participating countries that they could terminate the contract before 31st March 2009. On 3rd April 2009 the South African Air Force announced that it would start considering alternatives to the A400M due to postponed production and increased cost. On 5th November 2009, South Africa announced it was cancelling the order citing increased cost and delivery delays. On 12th June, The New York Times reported that Germany and France had delayed the decision whether or not to cancel their orders for another six months, while the UK still planned to decide at the end of June. The NYT also quoted a report to the French Senate from February 2009, according to which “the A400M is €5 billion over budget, 3 to 4 years behind schedule, […] aerospace experts estimate it is also costing Airbus between €1 billion and €1.5 billion a year.”
In 2009, Airbus acknowledged that the programme was expected to lose at least €2.4 billion and could not break even without sales outside NATO countries. A PricewaterhouseCoopers audit projected that the programme would run €11.2 billion over budget, and that corrective measures would result in an overrun of €7.6 billion. On 24th July 2009, the seven European nations announced that the programme would proceed and formed a joint procurement agency to renegotiate the contract. On 9th December 2009, the Financial Times reported that Airbus requested an additional €5 billion subsidy for the project. On 5th January 2010, Airbus repeated that the A400M may be scrapped, costing Airbus €5.7 billion unless €5.3 billion was added by partner governments. On 11th January 2010, Tom Enders, Airbus chief executive, stated that he was prepared to cancel the A400M if European governments did not provide more funding; delays had already increased its budget by 25%. Airbus executives reportedly regarded the A400M as a drain on resources that could have gone towards the A380 or A350 XWB programmes, and even considered spinning off the military division as a separate company.
In June 2009, Lockheed Martin said that both the UK and France had asked for technical details on the C-130J as an alternative to the A400M. In 2011, the ADS Group warned that shifting British orders to American aircraft for short term budget savings would cost much more over time in missed civil and military aerospace business, stating that technologies used in the A400M would be a bridge to the next generation of civilian aircraft.
On 5 November 2010, Belgium, Britain, France, Germany, Luxembourg, Spain and Turkey finalised the contract and agreed to lend Airbus Military €1.5 billion. The programme was then at least three years behind schedule. The UK reduced its order from 25 to 22 aircraft and Germany from 60 to 53, decreasing the total order from 180 to 170. In October 2012, John Gilbert, Britain’s former Minister for Defence Procurement, stated in the British House of Lords “The A400M is a complete, absolute wanking disaster, and we should be ashamed of ourselves. I have never seen such a waste of public funds in the defence field since I have been involved in it these past 40 years.”
In 2013, France’s budget for 50 aircraft was €8.9bn (~US$11.7bn) at a unit cost of €152.4m (~US$200m), or €178m (~US$235m) including development costs. The 2013 French White Paper on Defence and National Security cut their requirement for tactical transport aircraft from 70 to 50, including aircraft for use by special forces. As the A400M was still unable to perform in-flight refuelling for helicopters, France announced in 2016 that it would also purchase four C-130J aircraft for special forces support and helicopter aerial refueling. In July 2016, French aerospace laboratory ONERA confirmed that it had successfully trialled a 36.5m (120ft) hose and drogue configuration in a wind tunnel to permit helicopter refuelling from the airlifter. Earlier flight tests had demonstrated that the intended 24m (80ft) hose was unstable due to the vortices generated by the deployment of the A400M’s spoilers to achieve the required 108-130kt air speed. New flight tests are to be conducted later in 2016 to validate the findings.
On 1st April 2016, ADS confirmed that it was working to resolve manufacturing faults affecting fourteen propeller gear boxes (PGBs) produced by TP400 supplier Europrop International (EPI) in the first half of 2015. The gearboxes are made by Italian supplier Avio Aero, owned by General Electric. The issue involved a specific heat treatment process in manufacturing that adversely affected the strength of the ring gear; no other PGBs before or since were affected and the units involved either have been or are being changed. Airbus noted that “pending full replacement of the batch, any aircraft can continue to fly with no more than one affected propeller gear box installed and is subject to continuing inspections.” Another PGB issue involves cracking of the input pinion plug, which in some cases can result in the release of small metallic particles into the oil system, where they are detected by a magnetic chip detector. Only engines 1 and 3, which have propellers that rotate to the right, are affected. The European Aviation Safety Agency has issued an Airworthiness Directive mandating immediate on-wing inspection, followed by replacement if evidence of damage is found, or else return-to-service and continuing inspections. On 27th April 2016, when delivering Q1 2016 financial results, Airbus warned there could be a significant cost in repairing the gearbox. In June 2016, two German A400Ms received in December 2014 – aircraft 54-01 and 54-02 – were temporarily grounded after inspections found heavy engine wear in the clockwise rotation PGBs after only 365 and 189 hours of operations, respectively. An interim fix for this PGB issue was certified in July 2016, which extends the inspection phase from 100 hours to 650 hours, with follow-up inspections every 150 hours, up from 20 hours.
On 13th May 2016, Airbus confirmed that an unknown cracking behaviour that had already been identified during quality control checks in 2011 was found in an aluminium fuselage part of a French A400M; the issue did not affect flight safety and repairs could be incorporated into regular maintenance and upgrade schedules. The aluminium alloy, known as 7X6, has been used in a number of frames in the aircraft’s centre; the alloy’s chemistry, along with environmental conditions, resulted in small cracks propagating into the frames. A decision has been made to exclude the material from MSN70 onwards, an aircraft that will emerge from the production line in 2017. A retrospective process to remove the material from aircraft already in service is now being defined. The swap could take up to seven months.
On 29th May 2016, Airbus chief Tom Enders conceded in an interview published in Bild am Sonntag that some of the “massive problems” dogging the A400M were of the group’s own making. He said “We underestimated the engine problems” and “Airbus had let itself be persuaded by some well-known European leaders into using an engine made by an inexperienced consortium.” Furthermore, it had let itself be roped into assuming full responsibility for this new type of turbo-prop engine, he continued. “These are two massive problems which we’re now paying for.” On 27th July 2016 Airbus confirmed that it had taken a $1 billion financial charge on the A400M programme, in the light of delivery problems and export market prospects. It noted that “Commercial negotiations with OCCAR and the nations are yet to take place with regard to the revised delivery schedule and its implications.” Tom Enders commented, “Industrial efficiency and the step-wise introduction of the A400M’s military functionalities are still lagging behind schedule and remain challenging.”
Before the first flight, the required airborne test time on the Europrop TP400 engine was gained using a Lockheed C-130 testbed aircraft, which first flew on 17th December 2008. On 11th December 2009, the A400M’s maiden flight was carried out from Seville. By March 2010, the first A400M had flown 39 hours of test flights. On 8th April 2010, the second A400M made its first flight. In July 2010, the third A400M took to the air, at which point the fleet had flown 400 hours over more than 100 flights. In July 2010, the A400M passed a key test – ultimate-load testing of the wing. On 28th October 2010, Airbus announced that it was to start refuelling and air-drop tests. By October 2010, the A400M had flown 672 hours of the 2,700 hours expected to reach certification. In November 2010, the first paratroop jumps were performed; Airbus CEO Tom Enders and A400M project manager Bruno Delannoy were among the skydivers. By December 2010, the total fleet flight time had risen to 965 hours. A fourth A400M made its first flight on 20th December 2010.
In late 2010, simulated icing tests were performed on the MSN1 flight test aircraft using devices installed on the leading edges of the wing. These revealed an aerodynamic issue causing buffeting of the horizontal tail, necessitating a six-week retrofit to install anti-icing equipment fed with engine bleed air; production aircraft are to be similarly fitted. Winter tests were done in Kiruna, Sweden during February 2011. In March 2012, high altitude start and landing tests were performed at La Paz at 4,061.5 m (13,325 ft) and Cochabamba at 2,548 m (8,360 feet) in Bolivia.
By April 2011, a total of 1,400 flight hours over 450 flights had been achieved. In May 2011, the A400M’s EPI TP400-D6 engine received certification from the European Aviation Safety Agency (EASA). In May 2011, the A400M fleet had totaled 1,600 hours over 500 flights; by September 2011, the total increased to 2,100 hours and 684 flights. Due to a gearbox problem, an A400M was shown on static display instead of a flight demonstration at the 2011 Paris Air Show. By October 2011, the total flight hours had reached 2,380 over 784 flights.
During May 2012, the MSN2 flight test aircraft was due to spend a week conducting unpaved runway trials on a grass strip at Cottbus-Drewitz Airport in Germany. Testing was cut short on 23rd May, when, during a rejected takeoff test, the left side main wheels broke through the runway surface. Airbus Military stated that it found the aircraft’s behaviour was “excellent”. The undamaged aircraft returned to Toulouse. On 14th March 2013, the A400M received its Type Certification from the European Aviation Safety Agency.
Assembly of the first A400M began at the Seville plant of EADS Spain in early 2007. Major assemblies built at other facilities abroad were brought to the Seville facility by Airbus Beluga transporters. In February 2008, four Europrop TP400-D6 flight test engines were delivered for the first A400M. Static structural testing of an A400M test airframe began on 12 March 2008 in Spain. By 2010, Airbus planned to manufacture 30 aircraft per year.
The first flight, originally scheduled for the first quarter of 2008, was postponed due to programme delays, schedule adjustments and financial pressures. EADS announced in January 2008 that development problems with the engines had resulted in a delay to the second quarter of 2008 before the first engine test flights on a C-130 testbed aircraft. The first flight of the aircraft, previously scheduled for July 2008, was again postponed. Civil certification under European Aviation Safety Agency (EASA) CS-25 will be followed later by certification for military purposes. The A400M was “rolled out” in Seville on 26th June 2008 at an event presided by King Juan Carlos I of Spain.
On 12th January 2011, serial production of the A400M formally commenced. On 1st August 2013, delivery of the first aircraft to the French Air Force, it was formally handed over during a ceremony on 30th September 2013. On 9th August 2013, the first Turkish A400M conducted its maiden flight from Seville, and in March 2015 Malaysia took delivery of its first A400M.
In May 2015, a German defence ministry letter revealed that the member countries had established a Programme Monitoring Team (PMT) to analyze and judge Airbus plans to bring the A400M on track. As well as monitoring progress in development and production, the PMT schedules on-site visits to the final assembly line in Seville, Spain, and other production facilities. The PMT’s first conclusions on programme recovery include an observation that Airbus lacked an integrated approach to production, development and retrofits, treating these as separate programmes.
On 9th May 2015, an A400M crashed in Seville on its first production test flight. Germany, Malaysia, Turkey and UK suspended A400M flights during the investigation. Initial focus was on whether the crash was caused by new fuel supply management software, designed to trim the fuel tanks to enable certain military manoeuvres; Airbus issued an update instructing operators to inspect all Engine Control Units (ECUs). A key scenario examined by investigators is that the torque calibration parameter data was accidentally wiped on three engines as the software was being installed, preventing FADEC operations. As designed, the first warning of an engine data problem would occur when the plane was 120 metres (400 feet) in the air; on the ground, there is no cockpit alert. On 3rd June 2015, Airbus announced that investigators had confirmed “that engines one, two and three experienced power frozen after lift-off and did not respond to the crew’s attempts to control the power setting in the normal way.”
On 11th June 2015, Spain’s Ministry of Defence announced that A400M prototypes could restart test flights and confirmed that its specialist aerospace unit had met with Airbus to discuss flight permits, and that further permits relating to the programme could be granted in the coming days. The RAF lifted its suspension on A400M flights “following certain checks and extra procedures” on 16th June 2015, followed the next day by the Turkish Air Force. On 19th June 2015, deliveries restarted; the first aircraft, MSN019, is the seventh to be delivered to France and the 13th to be delivered in all. The FAL has also completed the build of four aircraft for the United Kingdom, which will now undergo pre-delivery checks and trials before being flown to Royal Air Force (RAF) Brize Norton in Oxfordshire.
In June 2016 the French Air Force accepted its ninth A400M – MSN33 – the first capable of conducting tactical tasks such as the airdrop of supplies. The revised standard includes the addition of cockpit armour and defensive aids system equipment, plus clearance for the Atlas to transfer and receive fuel in-flight.
The Airbus A400M increases the airlift capacity and range compared with the aircraft it was originally set to replace, the older versions of the Hercules and Transall. Cargo capacity is expected to double over existing aircraft, both in payload and volume, and range is increased substantially as well. The cargo box is 17.71 m long excluding ramp, 4.00 m wide, and 3.85 m high (or 4.00 m aft of the wing). The A400M operates in many configurations including cargo transport, troop transport, and medical evacuation. The aircraft is intended for use on short, soft landing strips and for long-range, cargo transport flights.
It features a fly-by-wire flight control system with sidestick controllers and flight envelope protection. Like other Airbus aircraft, the A400M has a full glass cockpit. Most of the aircraft systems are loosely based on those of the A380, but modified for the military mission. The hydraulic system has dual 3,000-psi channels powering the primary and secondary flight-control actuators, landing gear, wheel brakes, cargo door and optional hose-and-drogue refueling system. As with the A380, there is no third hydraulic system. Instead, there are two electrical systems; one is a set of dual-channel electrically powered hydraulic actuators, the other an array of electrically/hydraulically powered hybrid actuators. The dissimilar redundancy provides more protection against battle damage.
The A400M’s wings are primarily carbon fibre reinforced plastic. The Ratier-Figeac FH385 propellers turn counterclockwise and FH386 clockwise. The eight-bladed scimitar propellers are made from a woven composite material. The aircraft is powered by four Europrop TP400-D6 engines rated at 8,250 kW (11,000 hp) each. The TP400-D6 engine is to be the most powerful turboprop engine in the West to enter operational use.
The pair of propellers on each wing of the A400M turn in opposite directions, with the tips of the propellers advancing from above towards the midpoint between the two engines. This is in contrast to the overwhelming majority of multi-engine propeller driven aircraft where all propellers turn in the same direction. The counter-rotation is achieved by the use of a gearbox fitted to two of the engines, and only the propeller turns in the opposite direction; all four engines are identical and turn in the same direction. This eliminates the need to have two different “handed” engines on stock for the same aircraft, simplifying maintenance and supply costs. This configuration, dubbed down between engines (DBE), allows the aircraft to produce more lift and lessens the torque and prop wash on each wing. It also reduces yaw in the event of an outboard engine failure.
A forward-looking infrared enhanced vision system (EVS) camera provides an enhanced terrain view in low-visibility conditions. The EVS imagery is displayed on the HUD for low altitude flying, demonstrating its value for flying tactical missions at night or in cloud. EADS and Thales provides the new Multi-Colour Infrared Alerting Sensor (MIRAS) missile warning sensor for the A400M.
The A400M has a removable refuelling probe mounted above the cockpit to allow the aircraft to receive fuel from drogue-equipped tankers. Optionally, the receiving probe can be replaced with a fuselage mounted UARRSI receptacle for receiving fuel from boom equipped tankers. The aircraft can also act as a tanker when fitted with two wing mounted hose and drogue under-wing refuelling pods or a centre-line Hose and Drum unit.
The A400M features deployable baffles in front of the rear side doors, intended to give paratroops time to get clear of the aircraft before they are hit by the slipstream.
On 29th December 2013, the French Air Force performed the A400M’s first operational mission, the aircraft having flown to Mali in support of Operation Serval.
On 10th September 2015, the RAF was declared the A400M fleet leader in terms of flying hours, with 900 hours flown over 300 sorties, achieved by a fleet of four aircraft. Sqn. Ldr. Glen Willcox of the RAF’s Heavy Aircraft Test Squadron confirmed that reliability levels were high for an aircraft so early in its career, and that night vision goggle trials, hot and cold soaking, noise characterization tests and the first tie-down schemes for cargo had already been completed. In March 2015, the RAF’s first operational mission occurred flying cargo to RAF Akrotiri, Cyprus.
In September and October 2017, A400Ms from France, Germany and the UK participated in the disaster relief operations following Hurricane Irma in the Caribbean, delivering a Puma helicopter, food, water and other aid supply, and evacuating people stranded on the islands. On 24th July 2018 the German Luftwaffe used an A400M for the first time to fly 75 soldiers from Wunstorf to Mazar-i-Sharif. German Air Force Inspector Ingo Gerhartz called this a “milestone” because it was the first such mission in an active war zone and showed that the armoring kit was now fully functional.
In December 2004, South Africa announced it would purchase eight A400Ms at a cost of approximately €837 million, with the nation joining the Airbus Military team as an industrial partner. Deliveries were expected from 2010 to 2012. In 2009, South Africa cancelled all eight aircraft, citing increasing costs. On 29th November 2011 Airbus Military reached an agreement to refund pre-delivery payments worth €837 million to Armscor.
In July 2005, the Chilean Air Force signed a Memorandum of understanding for three aircraft, but no order has been placed; Chile began talks on buying the Brazilian Embraer KC-390.
In December 2005, the Royal Malaysian Air Force ordered four A400Ms to supplement its fleet of C-130 Hercules.
In January 2017, Indonesia approved the acquisition of five A400Ms to boost the country’s military airlift capabilities and modernise the air force. In March 2017 a letter of intent with Airbus was signed by Pelita Air Services which represents a consortium of Indonesian aviation companies.
In February 2017, the Czech and Swiss Ministries of Defence stated they were interested in a joint lease of 13 A400Ms from Germany.
In March 2018, the Indonesian Air Force and state entity Indonesia Trading Company (ITC) announced they were considering ordering two A400Ms which would be crewed by the Indonesian Air Force and act in an air freight role helping to balance the prices of goods across the archipelago, they were interested in its ability to operate from rough landing strips where a normal air freighter could not and the possibility of industrial offsets.
Herpa 1/200th Airbus A400M Atlas
Available from Flying Tigers, the Herpa 1/200th scale diecast Royal Air Force Airbus A400M Atlas C.1 No LXX Squadron, RAF Brize Norton “RAF 100” ZM416 can now be pre-ordered. Please click on the photo below to go straight to the model page or CLICK HERE to see the full range of Military 1/200th scale diecast from Herpa.
Corgi Aviation Archive Arrivals next week.

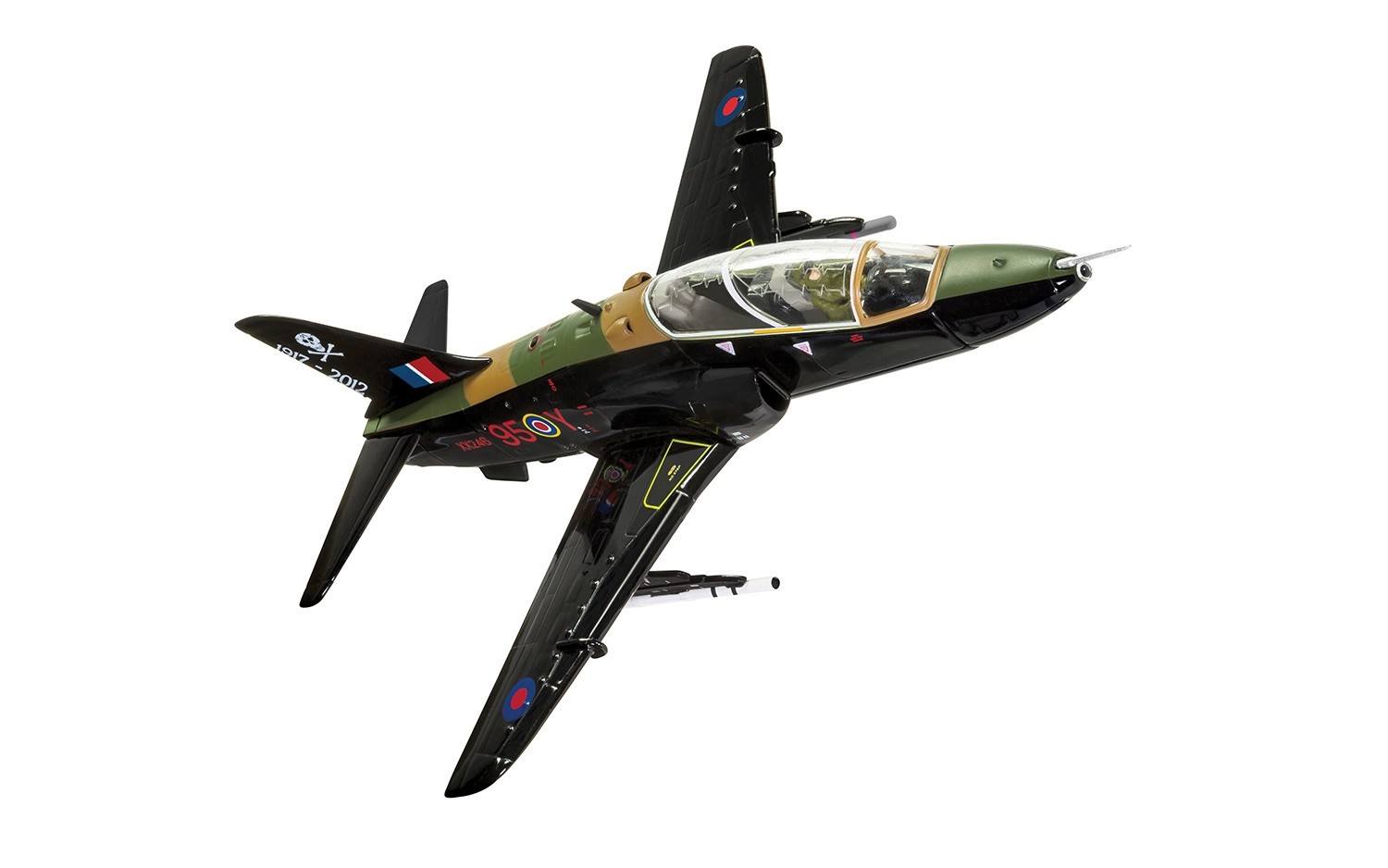

The following models are arriving next week at Flying Tigers. Pre-ordered models will be sent as soon as they have arrived. If you haven’t ordered yet, please click on the photos below to go straight to the model of your choice or CLICK HERE to see all Future Corgi Aviation Archive models.
“Offers of the Week” Free Post offer ! (see below)
This week’s offer is Free postage when you buy any model from the “Offers of the Week “ section.
Lots of new model offers added and also reduced prices !
This offer is limited to the United Kingdom mainland and Northern Ireland only and the offer starts today 17th August 2018 and finishes at 12.00 mid-day BST on Tuesday 21st August 2018.
To qualify for FREE postage the delivery address must be within the United Kingdom mainland and Northern Ireland and is limited to a single order.
Offer applies to IN STOCK models only and DOES NOT apply to pre-order models. If orders are received with a mix of IN STOCK and PRE-ORDER models then the FREE postage offer will not apply.
Please order in the normal way and your FREE postage will be applied to your order when your models are dispatched and your credit card or PayPal payments will be adjusted for FREE postage at this time.
This offer is subject to availability of stock.

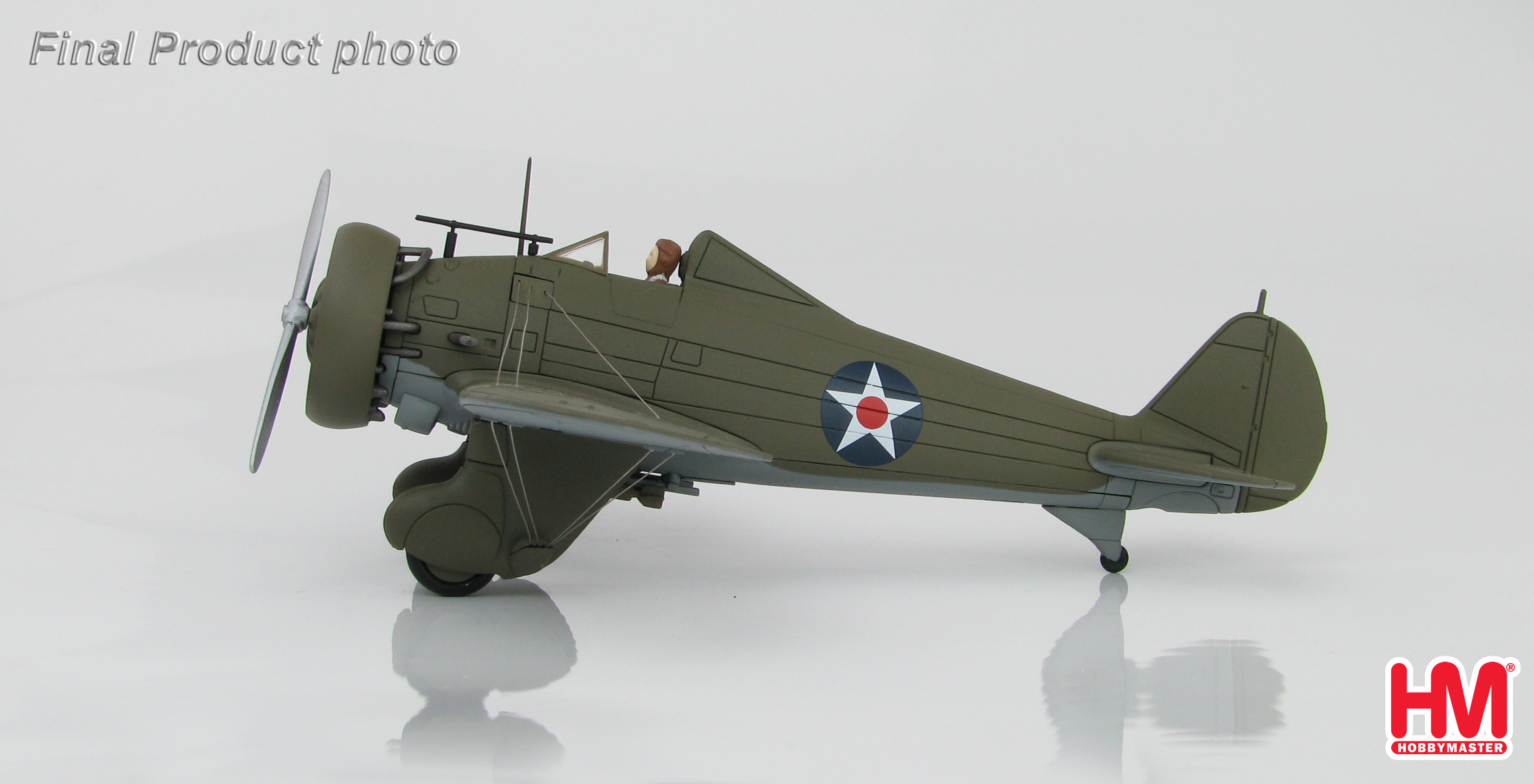

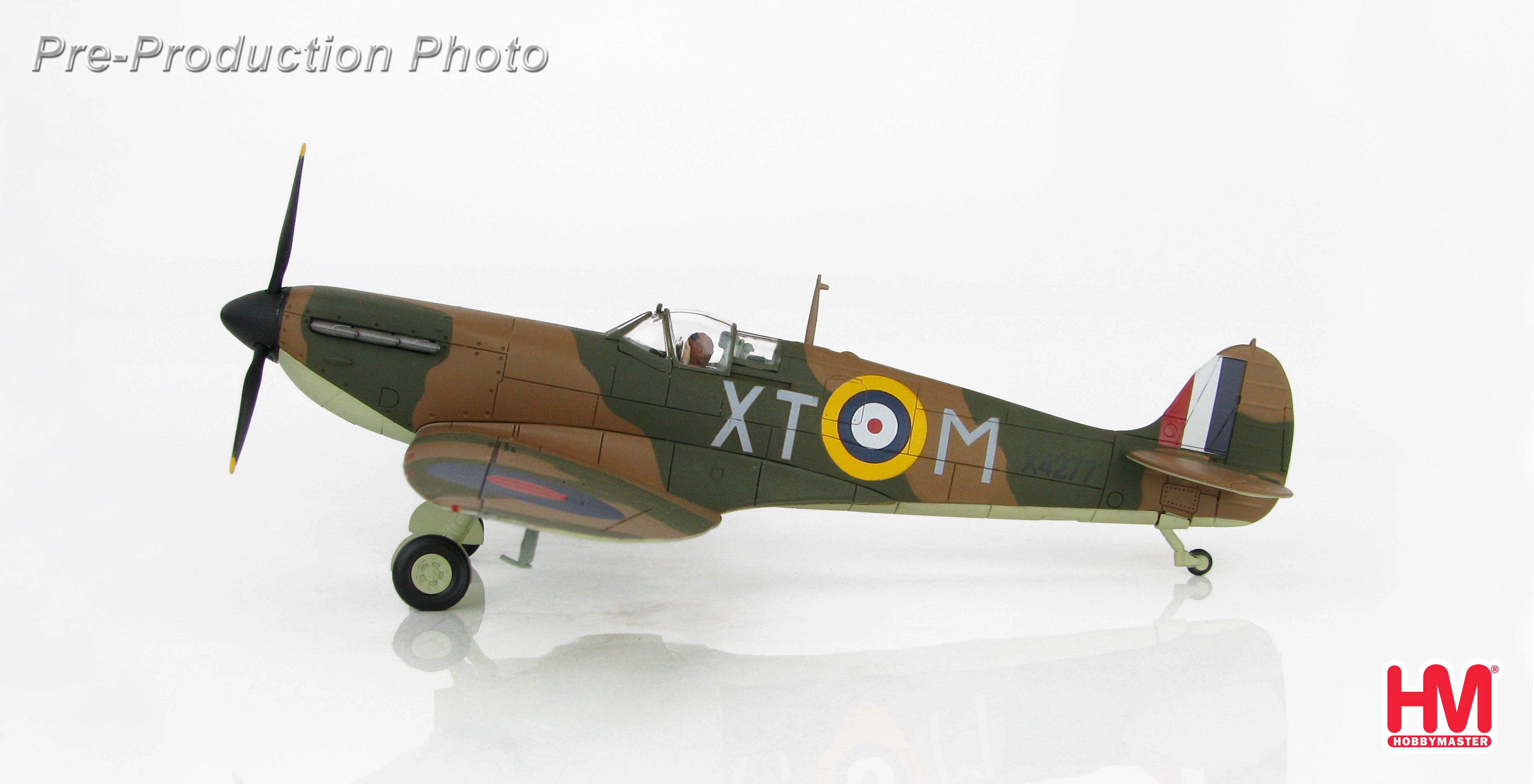

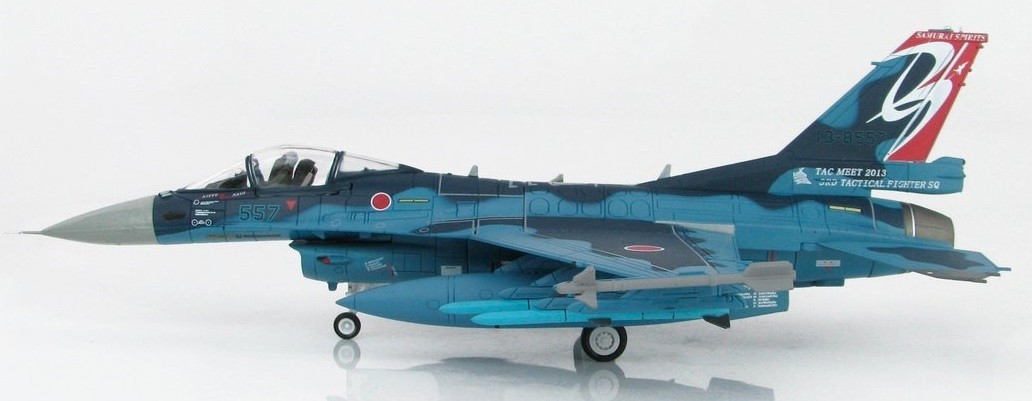

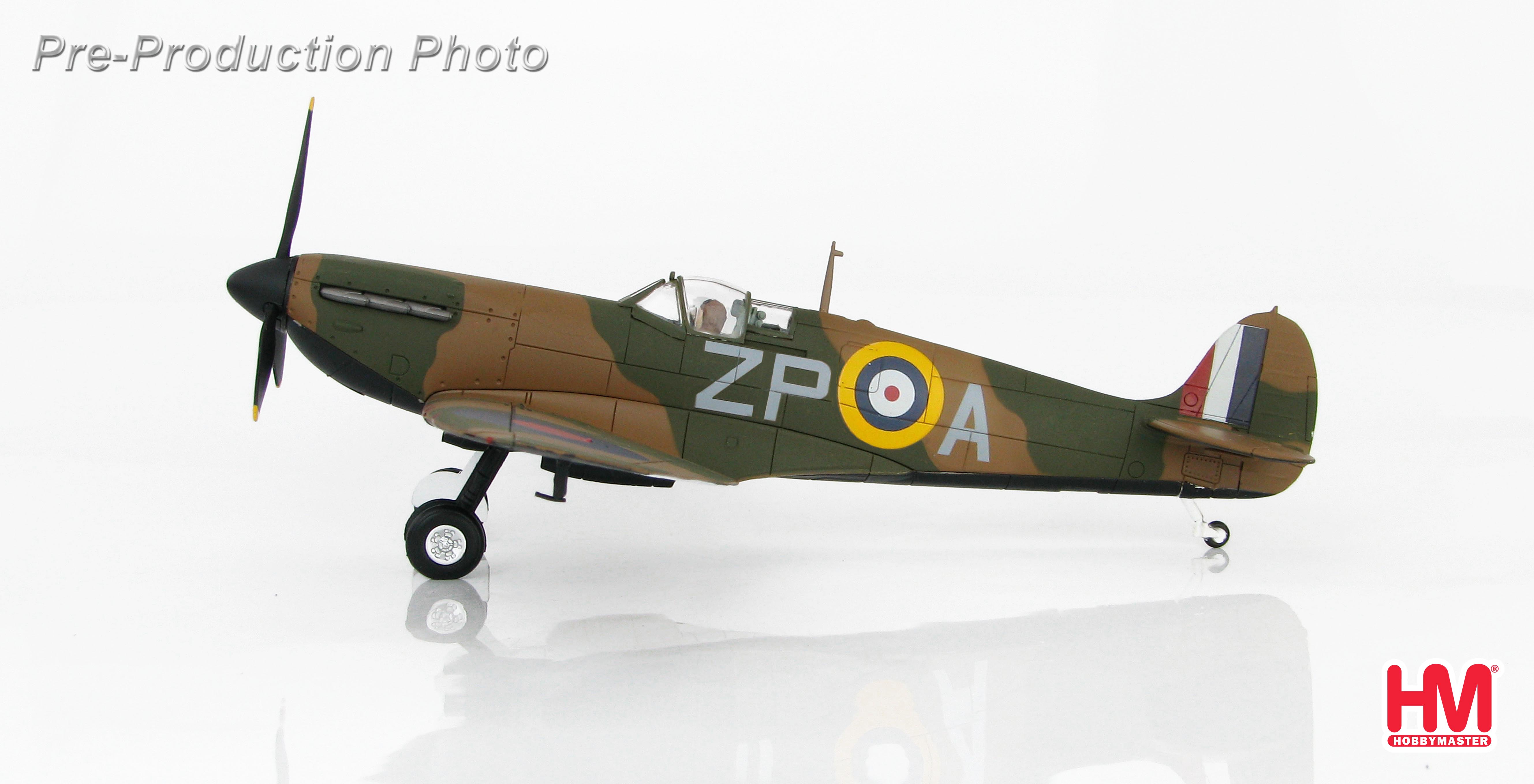

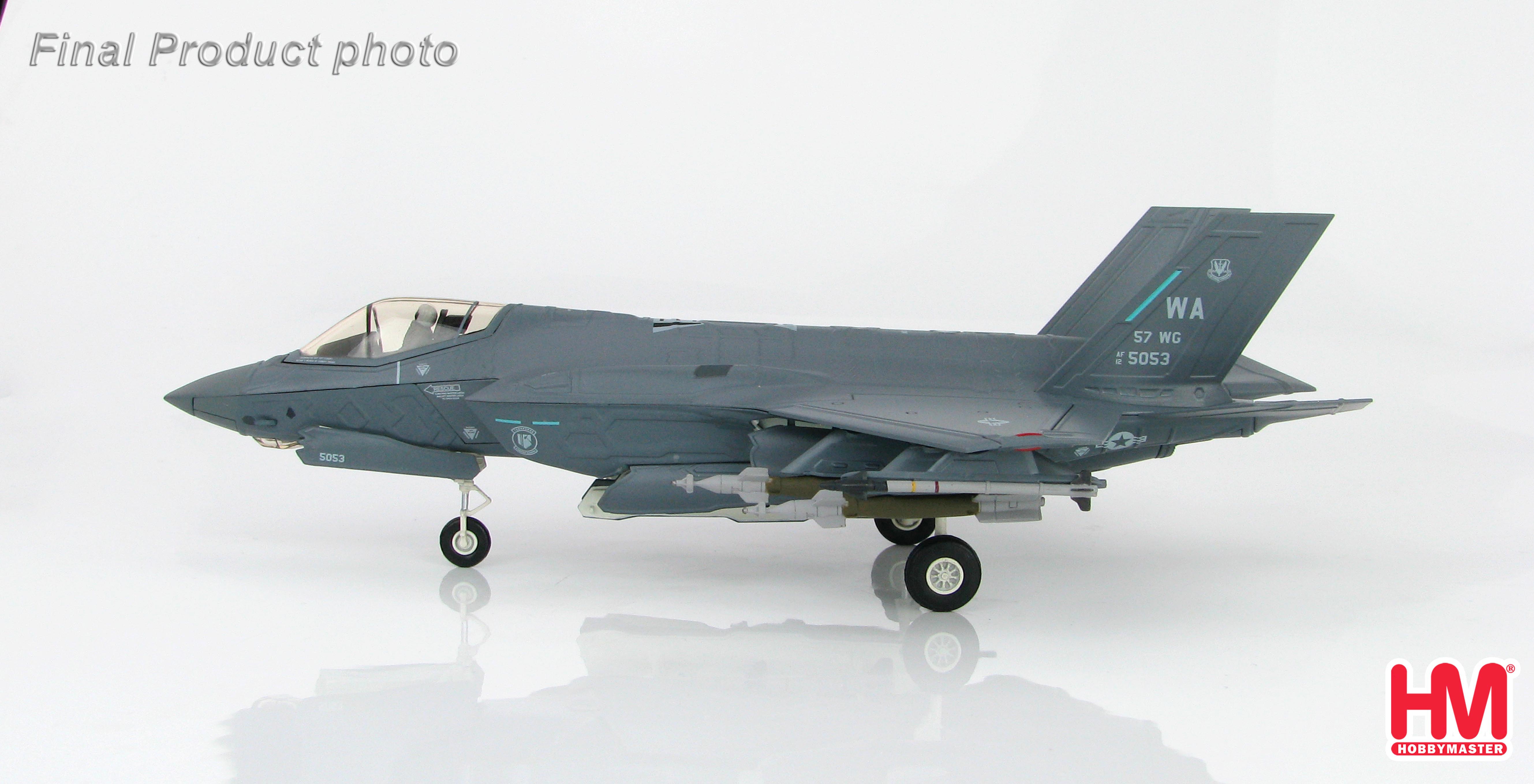

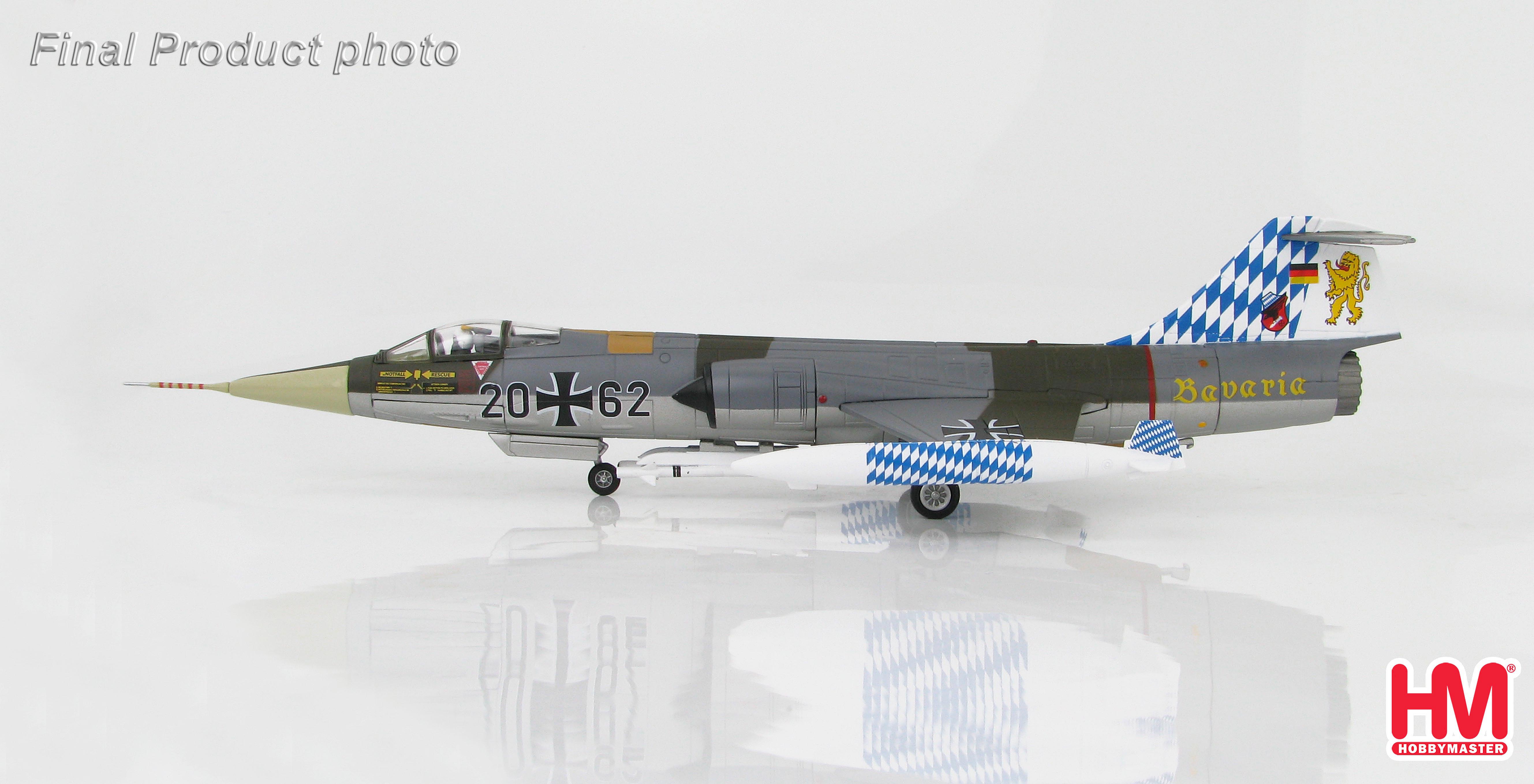

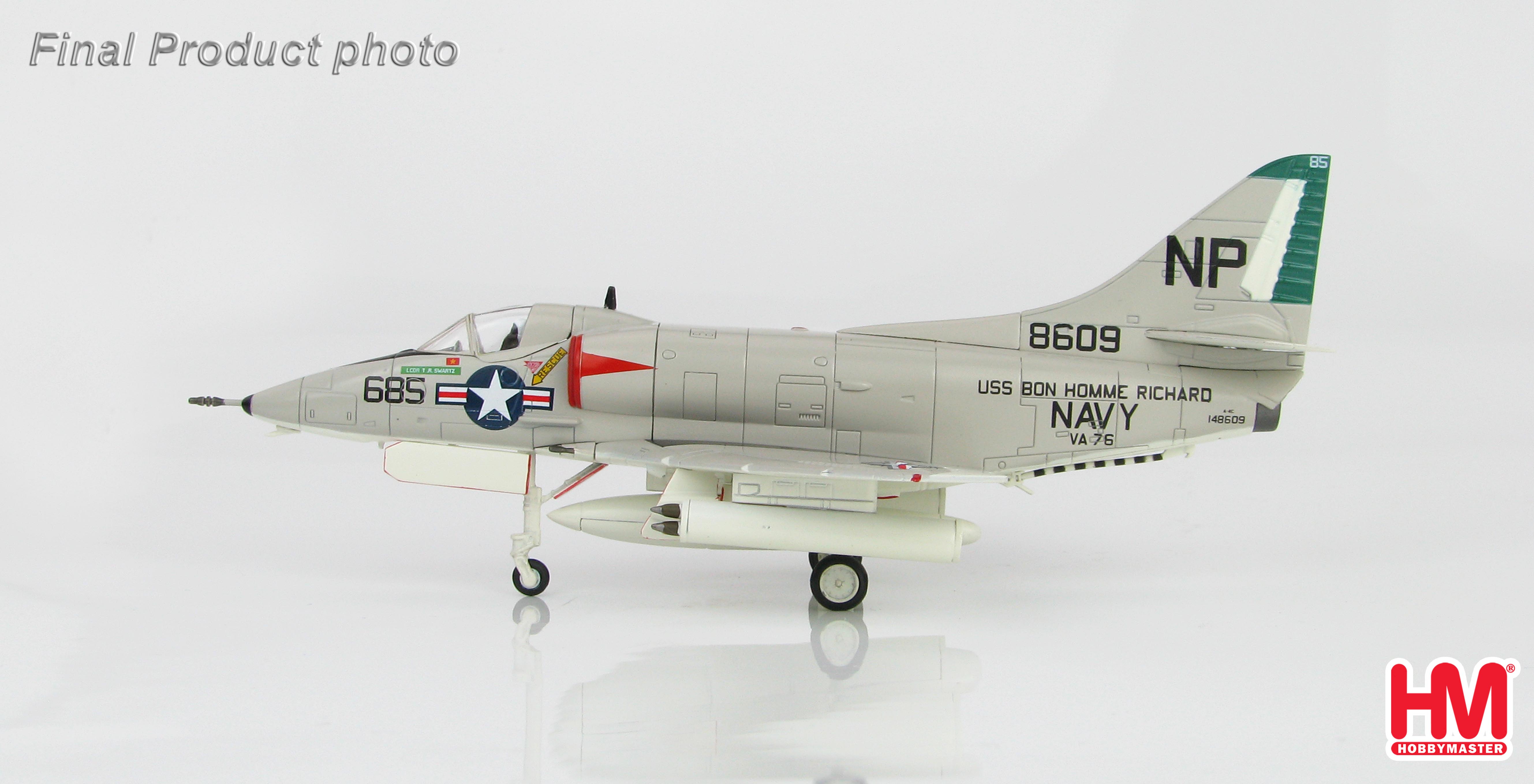

Here is a sample of the 32 models available for FREE POSTAGE.
