74 Sqn Phantom at St Mawgan June 1991

The United Kingdom operated the McDonnell Douglas F-4 Phantom II as one of its principal combat aircraft from the 1960s to the early 1990s. The UK was the first export customer for the Phantom, which was ordered in the context of political and economic difficulties around British designs for the roles that it eventually undertook. The Phantom was procured to serve in both the Fleet Air Arm and Royal Air Force in several roles including air defence, close air support, low-level strike and tactical reconnaissance.

Although assembled in the United States, the UK’s Phantoms were a special batch built separately and containing a significant amount of British technology as a means of easing the pressure on the domestic aerospace industry in the wake of major project cancellations. Two variants were initially built for the UK: the F-4K variant was designed from the outset as an air defence interceptor to be operated by the Fleet Air Arm from the Royal Navy’s aircraft carriers; the F-4M version was procured for the RAF to serve in the tactical strike and reconnaissance roles. In the mid-1980s, a third Phantom variant was obtained when a quantity of second-hand F-4J aircraft were purchased to augment the UK’s air defences following the Falklands War.

The Phantom entered service with both the Fleet Air Arm and the RAF in 1969. In the Royal Navy it had a secondary strike role in addition to its primary use for fleet air defence, while in the RAF it was soon replaced in the strike role by other aircraft designed specifically for strike and close air support. By the mid-1970s it had become the UK’s principal interceptor, a role in which it continued until the late 1980s.

The first British Phantom lands at the McDonnell plant in St Louis, Missouri in 1966

In the late 1950s, the British Government began the process of replacing its early second-generation jet combat aircraft in service with the Royal Air Force (RAF) and Fleet Air Arm (FAA). At the time, the British aerospace industry was still a major source of equipment, and designs from several companies were in service. The 1957 Defence White Paper brought about a significant change in the working practices, the Government compelling major aerospace manufacturers to amalgamate into two large groups: British Aircraft Corporation (formed from the merger of English Electric, Vickers-Armstrongs, Bristol and Hunting) and Hawker Siddeley (formed from the merger of Hawker Siddeley Aviation, Folland, de Havilland and Blackburn).

The intention was to rationalise the industry to cut costs, and the government offered incentives for amalgamation through promises of contracts for new aircraft orders for the armed forces. At the time, the RAF were looking to replace the English Electric Canberra light bomber in the long-range interdictor role, and the Hawker Hunter in the close air support role, while the Royal Navy sought an aircraft to assume the fleet air defence role from the de Havilland Sea Vixen. BAC, through its English Electric subsidiary, had begun developing a new high-performance strike aircraft, the TSR-2, which was intended for long-range, low-level strike missions with conventional and tactical nuclear weapons, as well as tactical reconnaissance. Hawker Siddeley was also developing a new aircraft, based on its P.1127 V/STOL demonstrator. The P.1154 was proposed as a supersonic version that could be marketed to both the RAF and Royal Navy to fulfil a number of roles: close air support, air superiority and fleet air defence

A pre-production F-4K of the A&AEE landing at RAF Fairford in 1983

During the early 1960s, aircraft development became increasingly expensive, resulting in major projects often becoming mired in political and economic concerns. The development of TSR-2 saw increasing cost overruns, combined with the presence of a potentially cheaper alternative then under development in the United States, the F-111. The P.1154 was subject to the ongoing inter-service rivalry between the Royal Navy and RAF, which led to two wildly differing specifications being submitted for the aircraft that were impossible to fulfill with a single airframe.

In 1964, the Royal Navy withdrew from the P.1154 project, and moved to procure a new fleet air defence interceptor. It eventually selected the McDonnell Douglas F-4 Phantom II, then in service with the US Navy as its primary air defence aircraft, intended to be operated from both existing and planned aircraft carriers. This better suited the Royal Navy, as the Phantom had two engines (providing redundancy in the event of an engine failure), was cheaper than the P.1154, and was immediately available. The P.1154 was thus left as a wholly RAF project. Later the same year, a general election brought the Labour Party back into power. The new government undertook a defence review, which led to the 1966 Defence White Paper that cancelled several projects, including both the P.1154 and TSR-2. As a consequence, the government was forced to order new aircraft to replace the Canberra and Hunter for the RAF, and eventually chose two types. To replace the Canberra in the long-range role (which was intended for TSR-2), the F-111 was selected, with plans for a redesigned variant, while the roles undertaken by the Hunter (for which P.1154 was to be procured) would be undertaken by a further purchase of F-4 Phantoms. As the Phantom had been developed primarily for fleet air defence, the Royal Navy was happy with the choice of the aircraft as its Sea Vixen replacement, given that the type had been operational in that role with the US Navy since 1961, whilst US aircraft had successfully undertaken touch-and-go landings on both HMS Hermes and HMS Victorious. The RAF was less enthusiastic, as the Phantom was primarily designed to operate in the air defence rather than the close air support role, and had been selected as its Hunter replacement more as a way of decreasing the per-unit cost of the overall UK order.

Phantom FG.1 of 892 NAS lands on USS Nimitz in 1975

Partly as a means of guaranteeing employment in the British aerospace industry, agreement was reached that major portions of the UK’s Phantoms would be built domestically. The F-4J variant, which was then the primary version in service with the US Navy, was taken as the basis for the UK aircraft, subject to major redesign. The most significant change was the substitution of the larger and more powerful Rolls-Royce Spey turbofan for the GE J79 turbojet to allow operations from the Royal Navy’s carriers. Although several had received major upgrades, all of the UK carriers were smaller than the US carriers from which the J79-GE-8 and −10 powered Phantoms operated. To accommodate the larger engines, BAC redesigned and built the entire rear fuselage section. The Westinghouse AN/AWG-10 radar carried by the F-4J was to be procured and built under licence by Ferranti as the AN/AWG-11 for FAA aircraft and AN/AWG-12 for those of the RAF. The changes to the aircraft led to the two variants being given their own separate series letters, with the FAA version being designated as the F-4K and the RAF version as the F-4M.

Initially, there was an intention to procure up to 400 aircraft for the Royal Navy and the RAF, but the development cost for the changes to accommodate the Spey turbofans meant that the per-unit price eventually ended up three times the price of an F-4J. Because the government then had a policy of negotiating fixed-price contracts, these costs could not be evened out by a large production run, which left the total order at 170.

A Royal Navy McDonnell Douglas Phantom FG.1 from 892 Naval Air Squadron aboard the aircraft carrier HMS Ark Royal (R09). The frigate in the background is possibly HMS Tenby (F65) or HMS Berwick (F115).

The British Government ordered a total of four prototypes (two F-4K and two F-4M), together with a pair of pre-production F-4K aircraft. The first UK Phantom, a prototype F-4K (designated YF-4K), first flew on 27th June 1966 at the McDonnell Douglas plant in St. Louis. The second made its first flight on 30th August 1966. The two pre-production F-4K aircraft were constructed alongside the prototypes, and were initially used for fit check trials of the various systems to be fitted – the first was used for catapult/arrestor and deck landing trials, and the second was primarily for testing the radar and missile systems. All four were delivered to the UK from 1969 to 1970 for continued test work by both the Aeroplane and Armament Experimental Establishment and British Aerospace. One of the pre-production examples was subsequently delivered to the RAF for operational use, but was lost in 1978. The first F-4M prototype (designated YF-4M) first flew on 17th February 1967, and was also used for fit checks before delivery to the UK.

In 1964, 140 new-build Phantoms were ordered for the Fleet Air Arm to serve as the Royal Navy’s primary fleet air defence aircraft, with a secondary strike capability. These were procured to replace the Sea Vixen then in service in the role, with the intention that they operate from the decks of four brand new or modernised aircraft carriers. At the time, the Royal Navy’s carrier force consisted of five fleet or light fleet carriers of differing sizes and ages. Of the five in service, only Eagle and Ark Royal, each displacing approximately 50,000 tons, were big enough to accommodate the Phantom in sufficient numbers, so plans were put in place to rebuild the two ships to enable the operation of the aircraft.

At the same time, two new aircraft carriers, known as “CVA-01” and “CVA-02”, were planned. The requirements for the intended force of four carriers meant that five squadrons of Phantoms would be needed. However, in its 1966 Defence White Paper, the Government decided to cancel CVA-01 and -02, which led to reductions in the total order for the Royal Navy’s Phantoms. Initially 143 were ordered, which was cut to 110, and finally just 50, with options for another seven. The intention was to form a pair of front-line squadrons, each of twelve aircraft, that would operate from the two remaining, heavily modernised fleet carriers. The rest of the aircraft would be a reserve and for training.

A Phantom lines up on the waist catapult of HMS Ark Royal during her post-refit work up in May 1970; the UK was the only country outside the United States to operate the Phantom at sea

The Royal Navy received its first F-4K Phantoms, which carried the British designation FG.1, in April 1968. These were assigned to 700P Naval Air Squadron (NAS), which was to serve as the Intensive Flying Trials Unit. Upon completion of the successful flight trials, 767 Naval Air Squadron was commissioned in January 1969 as the FAA’s training squadron. This was followed at the end of March 1969 by 892 Naval Air Squadron, which was commissioned as the Royal Navy’s first operational Phantom unit, intended to embark in Ark Royal once her three-year refit had completed in 1970.

At the same time as the Fleet Air Arm was receiving its first aircraft, the Aeroplane and Armament Experimental Establishment had three FG.1s delivered to its ‘C’ Squadron for flight deck trials aboard Eagle. Two sets of trials were successfully carried out in March and June 1969; the first comprised approaches and touch and go landings, while the second set of trials involved full catapult launch and arrested recovery. As a result of the reheat from the Spey turbofans, the ship’s jet blast deflectors (JBD) were not used; instead a steel plate was fixed to the deck to absorb the heat of the engines building to launch, and fire hoses were used after each launch to prevent them melting.

Ark Royal had entered refit to accommodate the Phantom in 1967; this involved a major reconstruction, including several elements to allow the ship to operate the aircraft – the flight deck was increased in area and fully angled to 8½°, the arresting gear was replaced with a new water-spray system to accommodate the Phantom’s higher weight and landing speed, and bridle catchers and water-cooled JBDs were fitted to the catapults. Once this work was complete, Eagle was scheduled to undergo a similar modernization. In 1969, the planned refit of Eagle was cancelled, and the options for seven additional FG.1s was not taken up. As a consequence, it was decided to further reduce the FAA’s Phantom fleet to just 28 aircraft. The remaining 20 aircraft were then allocated to the Royal Air Force.

In 1970, Ark Royal embarked 892 NAS as part of her air group for the first time, with a total of 12 aircraft. The first operational use of the Royal Navy’s Phantoms had come in 1969, when 892 NAS had embarked for training with the US aircraft carrier USS Saratoga in the Mediterranean, and had undertaken air defence missions alongside the ship’s own F-4Js. This deployment showed the necessity for the modifications fitted to Ark Royal, as the heat from the afterburners of the Spey, combined with the increased angle of attack resulting from the extendable nosewheel, during the initial launches from Saratoga caused the deck plates to distort, leading to subsequent catapult launches being undertaken at reduced weight without the use of re-heat. During Ark Royal’s first three-year commission, 892 NAS, which had initially used RNAS Yeovilton in Somerset as its home base, moved to RAF Leuchars in Fife where, during the periods when it was not embarked, it undertook Quick Reaction Alert (QRA) duties alongside the RAF’s 43 Squadron. The Phantom served in the Fleet Air Arm until 1978, when Ark Royal was finally withdrawn from service, leaving no ship in the Royal Navy capable of operating the type. The final catapult launch from Ark Royal was a Phantom of 892 NAS on 27th November 1978 during the disembarkation of the air group following the ship’s final deployment; the squadron’s aircraft were delivered to RAF St Athan in Wales, where they were handed over to the RAF. During the type’s service with the Royal Navy, 10 of the total FAA fleet of 28 were lost in crashes.

A Phantom of 892 NAS builds up power to launch from Independence in 1975 during Operation Ocean Safari; the fierce heat from the Spey’s afterburners required the installation of special water-cooled jet blast deflectors aboard Ark Royal to avoid extensive damage to the flight deck.

Following the cancellation of the planned refit of HMS Eagle to allow her to operate the Phantom, a total of 20 airframes that had originally been ordered for the Fleet Air Arm were diverted to the Royal Air Force to serve in the air defence role. At the time, the RAF’s primary interceptor was the English Electric Lightning, which suffered badly both in terms of range, loiter time and weapons fit, all of which hampered its effectiveness, especially in long interceptions of Soviet Air Forces and Soviet Naval Aviation bombers and reconnaissance aircraft over the North Sea and North Atlantic. So a new Phantom squadron was formed at RAF Leuchars, the UK’s most northerly air defence base at the time, to take advantage of the improvements that the Phantom provided over the Lightning – it could carry more fuel, and could thus fly further for longer; it was fitted with a more powerful radar; and it could carry more missiles (up to 8, compared to 2 for the Lightning). On 1st September 1969, 43 Squadron was formed at Leuchars, operating as part of the UK’s northern QRA zone alongside the Lightnings of 11 Squadron and, from 1972, the Royal Navy Phantoms of 892 Naval Air Squadron.

Upon the withdrawal of HMS Ark Royal in 1978, the Phantoms of the Fleet Air Arm were turned over to the RAF and used to form a second squadron at Leuchars. At the time, 111 Squadron was stationed there operating the FGR.2 version of the Phantom, having been there since 1975. In 1979, to save costs resulting from the differences between the FG.1 and FGR.2, the squadron converted to the ex-Navy aircraft and the FGR.2 airframes were distributed to other Phantom units. Both 43 and 111 Squadrons retained the FG.1 until 1989, when they converted to the new Tornado F.3. Following the standing down of the two operational squadrons and the final withdrawal of the type from service, the bulk of the RAF’s FG.1 Phantoms were scrapped. The RAF lost eight of their FG.1s in crashes throughout the type’s twenty year service.

The Phantom had significant advantages over the Lightning as an interceptor in terms of range, avionics and weapons fit.

Following the cancellation of both the TSR-2 and P.1154 programmes, the RAF were still left with a requirement to replace both the Canberra and Hunter in the long-range strike, close air support and reconnaissance roles. This resulted in the procurement of two aircraft, the General Dynamics F-111K, intended for the long-range interdiction roles carried out by the Canberra, and the F-4M Phantom, which would be used in the close air support role undertaken by the Hunter. The F-111K was cancelled within a year of being ordered, but the order for 150 Phantoms went ahead alongside the Phantom order for the Royal Navy; the final 32 units of the RAF order were eventually cancelled. The RAF Phantom, given the designation FGR.2, was broadly similar to the naval version, with some minor variations in terms of engines, avionics and structure, which related to its use as a land-based, rather than carrier-based aircraft.

Phantom FG.1 of 111 Squadron at RAF Greenham Common in July 1983

The first RAF Phantom unit was 228 Operational Conversion Unit, which was stood up in August 1968. The Phantom entered operational service in May 1969, when 6 Squadron was formed at RAF Coningsby in the tactical strike role. 54 Squadron was formed in September the same year, followed by 41 Squadron in 1972 as a tactical reconnaissance unit. A further four squadrons were formed under RAF Germany in 1970 and 1971: 2, 14, 17 and 31 Squadrons, all at RAF Brüggen. Along with their conventional strike role, 14, 17 and 31 Squadrons were assigned a tactical nuclear strike role under SACEUR, using weapons supplied by the United States. After initial work-up, 2 Squadron moved to and operated from RAF Laarbruch in the tactical reconnaissance role. The aircraft assigned to the two tactical reconnaissance units were fitted with a pod containing four optical cameras, an infrared linescan and a sideways looking radar.

During the 1970s, UK and France were developing a new aircraft which could fill the RAF tactical strike and reconnaissance missions: the SEPECAT Jaguar was introduced into service in 1974, and led to a re-think of the Phantom’s role as, at the same time, the limitations of the Lightning as an interceptor were becoming more apparent. The conversion of the RAF’s FGR.2 squadrons to operate the Jaguar, combined with its use of the Blackburn Buccaneer, meant that it was possible to begin transferring Phantoms to operate purely as interceptors in the air defence role.

Phantom FG.1 of 43 Squadron approaching a USAF KC-135 tanker in 1980

In October 1974, 111 Squadron converted from the Lightning to the Phantom FGR.2, becoming the first unit to operate the type in the air defence role (notwithstanding 43 Squadron, which had used the FG.1 version since 1969). As more Jaguars were delivered, more Phantoms were released enabling existing Lightning squadrons to be converted; 19 Squadron and 92 Squadron, the forward deployed air defence units in Germany, converted in 1976 and 1977 respectively, at the same time moving from RAF Gütersloh, which was the closest RAF base to the East German border, to RAF Wildenrath, taking advantage of the Phantom’s superior range over the Lightning. Three further UK based squadrons, 23, 29 and 56, were also converted between 1974 and 1976. 111 Squadron, which had been the first unit to use the FGR.2 as an interceptor, converted to the FG.1 version in 1979 following the transfer of the Royal Navy’s remaining airframes to the RAF. The Phantom subsequently served as the RAF’s primary interceptor for over a decade until the introduction into service of the Panavia Tornado F.3 in 1987.

Initially delivered to air defence units in green-grey camouflage, the RAF soon adopted a pale grey colour scheme for its Phantoms

When Phantoms were first delivered to interceptor squadrons, they remained in the grey-green camouflage colour scheme more associated with the strike and close air support missions they had undertaken. During the late 1970s, the RAF began experimenting with new colours for its air defence units, with 56 Squadron tasked with trialling proposed new schemes. In October 1978, a Phantom FGR.2 of 56 Squadron became the first to be painted in the new air superiority grey colour, combined with small, low visibility roundels and markings. However, although the roundel remained in low visibility colours, individual squadron markings eventually returned to more observable sizes and colours.

McDonnell F-4M Phantom FGR.2 of 23 Squadron RAF exhibited at RAF Finningley in 1977

In May 1982, three Phantoms from 29 Squadron were forward deployed to RAF Wideawake on Ascension Island to provide air cover for the RAF’s operations during the Falklands War, replacing Harriers of 1 Squadron, which were transiting to the war zone. In August 1982, following the end of the conflict and the reconstruction of the runway, 29th Squadron detached a number of its aircraft to RAF Stanley to provide air defence for the Falkland Islands. Late the following year, 23 Squadron took up the role, remaining stationed there until October 1988, when they were replaced by 1435 Flight. To make up for the loss of an entire squadron from the UK Air Defence Region, the RAF procured 15 second-hand F-4J Phantoms that had previously been used by the US Navy. These aircraft were operated by 74 Squadron from 1984 until 1991, when they were replaced by FGR.2 Phantoms that had been released by other squadrons following their conversion to the Tornado. Initially, it was intended that Phantoms and Tornados serve alongside each other. A total of 152 Tornado F.3s were ordered for the RAF, enough to convert four squadrons of Phantoms and two of Lightnings, but insufficient to completely convert every air defence squadron. Both 23 and 29 Squadrons converted from the Phantom FGR.2 to the Tornado between 1987 and 1988, alongside the conversion of the final two remaining Lightning squadrons. The intention was to retain a pair of UK based Phantom squadrons at RAF Wattisham, alongside a pair of Tornado units at RAF Coningsby to provide air defence cover for the southern half of the UK Air Defence Region. Another two squadrons stationed in Germany would also be retained.

The end of the Cold War however led to a more rapid withdrawal of Phantom units than had originally been planned; under the Options for Change defence review the Phantom was to be withdrawn from service, with the two Germany based units disbanded as part of the gradual run down of the RAF’s presence, and a reduction in the number of air defence squadrons leading to the two UK based units being disbanded in late 1992. However, just prior to the final withdrawal of the Phantom, it was recalled operationally as a result of Operation Granby, the UK’s participation in the First Gulf War, when a total of six aircraft from 19 and 92 Squadrons were forward deployed to provide air defence cover at RAF Akrotiri; this was to replace the Tornados that had been originally deployed there on exercise, and were subsequently sent to the Gulf region. Following their final withdrawal from service, with a few exceptions, the bulk of the RAF’s FGR.2 fleet was scrapped. Over its service life, 37 FGR.2s were lost to crashes.

McDonnell Douglas F-4 Phantom XV409 while on display at RAF Mount Pleasant

After the Falklands War, the UK government began upgrading the defences of the Falkland Islands to guard against any further aggression from Argentina. One of the measures taken was the deployment of an interceptor squadron to the islands, with 23 Squadron forming at RAF Stanley in October 1983. At the time, the air defence variant of the Panavia Tornado was still in development, meaning that the Phantom was the UK’s primary air defence aircraft (supported by two remaining squadrons of Lightnings). The removal of a squadron of Phantoms to the Falkland Islands left a gap in the UK’s air defences and nothing immediately available to fill it, given that the Tornado was still some years from service. As a result, the UK government decided to purchase another squadron of Phantoms. Because the aircraft in RAF service were a special production batch built to UK specifications, it would not be possible to obtain identical aircraft, so 15 second-hand airframes were procured from among the best of the ex-US Navy F-4Js stored at the Aerospace Maintenance and Regeneration Center at Davis–Monthan Air Force Base in Arizona and the Naval Air Rework Facility at NAS North Island. The F-4J was chosen because it was the variant from which the RAF’s F-4Ks and F-4Ms were developed, and was thus the closest available to the British aircraft. The 15 that were selected were extensively refurbished and brought to a standard almost equivalent to the F-4S, which was the last variant in service with the US Navy, the only differences being the absence of leading-edge slats and a helmet gun sight.

F-4K; telescopic nosewheel oleo; hinged nose radome; wider and shorter engine exhausts; bigger air intakes; deeper rear fuselage; RWR installation on tailfin.

F-4J(UK); narrower and longer exhausts; narrower air intakes; shallower rear fuselage; no RWR installation (the subject of Hobbymaster’s latest release)

The major difference between the F-4J and the British Phantoms was the absence of the Rolls-Royce Spey turbofan, the former being fitted with the GE J79-10B. This produced less power than the British engine, but had a faster afterburner light up, giving it better performance at high altitude, at the expense of slightly poorer acceleration at low level. The high-altitude performance was helped by the reduced drag from its smaller air intakes. Initially delivered capable of carrying the AIM-7 Sparrow and AIM-9 Sidewinder air-to-air missiles (AAM), they were soon made compatible with the Skyflash and SUU-23A gun pod, bringing them into line with the rest of the RAF’s Phantoms. Despite modifications to allow them to operate with the rest of the fleet, the F-4Js retained the vast bulk of the equipment they were originally fitted with, even requiring their crews to use American flying helmets.

Although the new Phantoms were assigned a British designation as the F.3, they were generally referred to as the F-4J(UK). They were assigned to 74 Squadron at RAF Wattisham, which stood up in October 1984, two months after the first flight. The aircraft remained in service through the transition to the Tornado, which began entering service in 1987. In 1990, thanks to the conversion of F-4M squadrons to the Tornado, the RAF were able to transfer the best of its remaining FGR.2s to 74 Squadron, which meant that the F.3 was able to be withdrawn in January 1991. With a couple of exceptions, all of the RAF’s F-4Js were broken up for scrap. One of the 15 airframes was lost in a crash in 1987, killing both crew members.

F-4M Phantom FGR.2 XT914

The Phantom FG.1 and FGR.2 as built were similar, being fitted with broadly the same engines and avionics, although there were minor differences. The FGR.2 was fitted with the Mark 202 version of the Rolls-Royce Spey turbofan, while the FG.1 had the Mark 203; this was fundamentally the same, but the 203 had a modified control system for the afterburner, allowing it to light faster and enable power to be applied quickly in the event of a bolter on the small decks of the Royal Navy’s aircraft carriers. Both variants were fitted with a licence built version of the Westinghouse AN/AWG-10 avionics package; the FG.1 was fitted with the AN/AWG-11, which differed primarily in having a nose radome that was hinged and able to fold backwards against the aircraft’s fuselage to allow for storage in the hangar of an aircraft carrier; the system was designed to be integrated with both the AGM-12 Bullpup missile and WE.177 as required. The AN/AWG-12 fitted to the FGR.2 was not foldable, and featured a better ground mapping mode, to take into account the strike role for which the type was originally procured; allied to this was a Ferranti inertial navigation/attack system (removed when the type converted to the air defence role). It was also configured to be able to control the SUU-23A gun pod, which the Royal Navy’s FG.1s lacked.

Although there were minor differences between the two types of Phantom built for the UK, there were many significant ones between the British Phantoms and those built for the United States. The most obvious was the substitution of the Rolls-Royce Spey turbofan for the General Electric J79 turbojet. The Spey was shorter but wider than the J79, which meant that the British Phantoms’ intakes had to be redesigned for a higher airflow, making them 20% larger (with a consequent increase in drag), while the fuselage was widened by 152 mm (6.0 in). The position of the afterburner also meant that the rear of the fuselage had to be made deeper. Auxiliary intake doors were fitted on the rear fuselage.

Phantom F.3 on the flightline at RAF Valley in 1987

Performance estimates of the Spey-engined Phantom contrary to its American equivalent indicated that the former had a 30% shorter take-off distance, 20% faster climb to altitude, higher top speed and longer range. The Spey was more efficient at lower altitudes, and had better acceleration at low speed, giving British Phantoms better range and acceleration, which was shown during the deployment of 892 NAS to the Mediterranean aboard USS Saratoga in 1969, when the F-4K was repeatedly quicker off the deck than the F-4J used by the Americans. It was less efficient at higher altitudes, the British Phantoms lacking speed compared to J79-powered versions owing to the increased drag of the re-designed fuselage. This discrepancy became apparent when the F-4J was obtained by the UK in 1984; it was regarded as being the best of the three variants to serve in the RAF.

The small size of the aircraft carriers Eagle and Ark Royal, from which the Royal Navy’s Phantoms were intended to operate, compared to the US Navy carriers of the period, meant that the F-4K version required significant structural changes compared to the F-4J, from which it was descended, and which performed a similar role. As well as the folding nose radome to allow for storage in the smaller hangars of the British ships, it had to have a significantly strengthened undercarriage to account for the higher landing weight (British policy was to bring back unused ordnance). It had a telescopic nosewheel oleo that extended by 40 inches (100 cm) to provide an increased take-off attitude (the extension of the nosewheel put the Phantom at a 9° attitude) due to the shorter and less powerful catapults. It was also fitted with drooping ailerons, enlarged leading edge flaps and a slotted tailplane, and increased flap and leading edge blowing, all to improve the lift and handling characteristics of operation from the much smaller carriers of the Royal Navy.

A Royal Air Force F-4J(UK) or Phantom F.3 (RAF serial ZE352, USN BuNo 153783) of No. 74 Squadron in flight near San Diego, California (USA), with pilot CDR Steve Queen and RIO Flt.Lt. Clive Bairstow

As the Phantom continued in service, other changes were made, most notably the Marconi ARI.18228 Radar Warning Receiver (RWR) fitted on top of the vertical stabiliser, exclusively on British models. The RWR was fitted in the mid-1970s to the FG.1 and FGR.2 Phantoms, but not to the F.3. From 1978, the Skyflash AAM, derived from the AIM-7 Sparrow, began to be delivered to RAF Phantom units, and was used concurrently with the Sparrow; all three UK Phantom variants were eventually fitted to operate the Skyflash.




Hobbymaster and Gemini Aces RAF Phantoms available from Flying Tigers.

Please find the RAF Phantoms available from Flying Tigers. Click on the images below to go straight to the model of your choice. The first Phantom listed below is STILL AVAILABLE from Flying Tigers at the moment, but has already SOLD OUT at Hobbymaster and the U.K. Distributor, so once the pre-order allocation has gone it will no longer be available. Please order early to avoid disappointment.




Hobbymaster Updated Photos

I have updated the Hobbymaster Photo Gallery on the models below. Please take a closer look by clicking on the images or links below to go to the model of your choice.




JC Wings New Models

Flying Tigers is pleased to bring you the next phase of releases from the 1/72 Scale Diecast Jet Fighter range from JC Wings. Each Limited Edition model is highly detailed with separate undercarriage and armaments. In addition there is a range of metal stands available for these and similar 1/72 scale aircraft. Just a few of them are shown below or you can CLICK HERE to see them all.






Latest arrivals at Flying Tigers this week from Corgi.

The Corgi Aviation Archive 1/72nd scale AA34811 Vickers Wellington 1C, R1162 / AA-Y ‘Y for Yorker’, No.75 (New Zealand) Squadron, RAF Feltwell, Norfolk, 1941 ‘Soda Syphon Bomber’  has arrived today and is in stock available to order. Thank you to all those customers who have already pre-ordered their models… these will start to “fly out” from Flying Tigers today and Monday next week. If you haven’t ordered one yet there is still time but probably not long. Please click on the image below to go straight to the model if you need to order one.

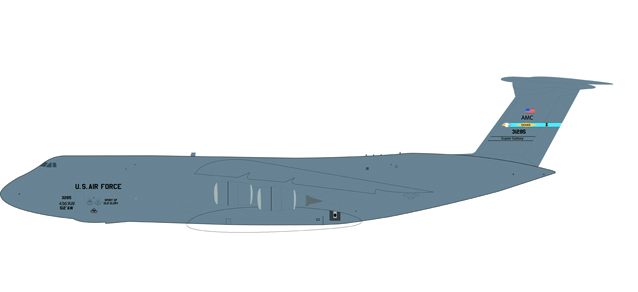

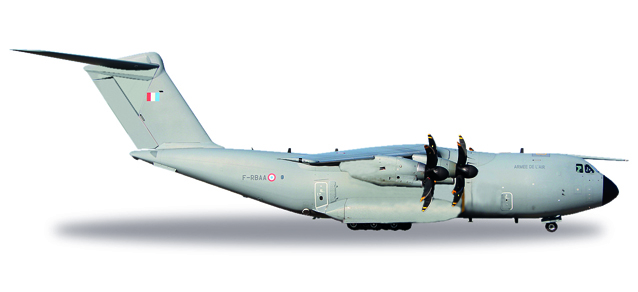

Herpa Diecast new announcements in 1/72nd scale and 1/200th scales.
